2007.0 Range Rover Sport (LS), 501-29

Side Panel Sheet Metal Repairs

A-Pillar Reinforcement (G458150)

REMOVAL AND INSTALLATION
Removal
NOTE:

In this procedure the A-pillar reinforcement is replaced in conjunction with the A-pillar outer panel.

  1. Disconnect both battery cables. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the A-pillar outer panel. For additional information, refer to: A-Pillar Outer Panel (501-29 Side Panel Sheet Metal Repairs, Removal and Installation).
  3. Remove the instrument panel. For additional information, refer to: (501-12 Instrument Panel and Console)
    Instrument Panel - TDV6 2.7L Diesel (Removal and Installation),
    Instrument Panel - TDV8 3.6L Diesel (Removal and Installation),
    Instrument Panel - TDV8 3.6L Diesel (Removal and Installation).

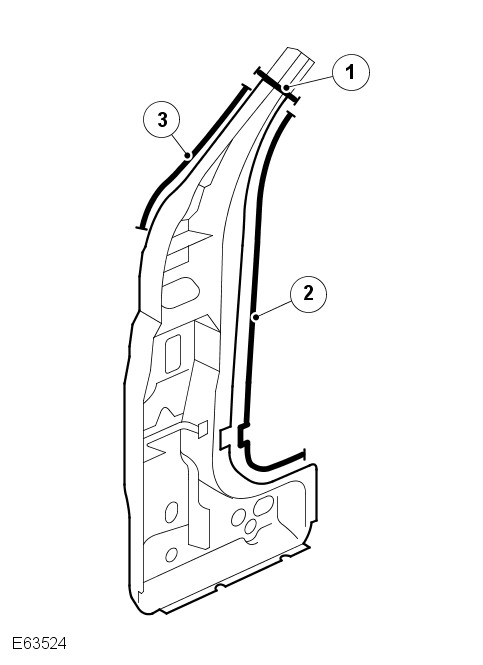

  4. E63524

    ItemDescription
    1Butt weld.
    230 spot welds.
    317 spot welds.

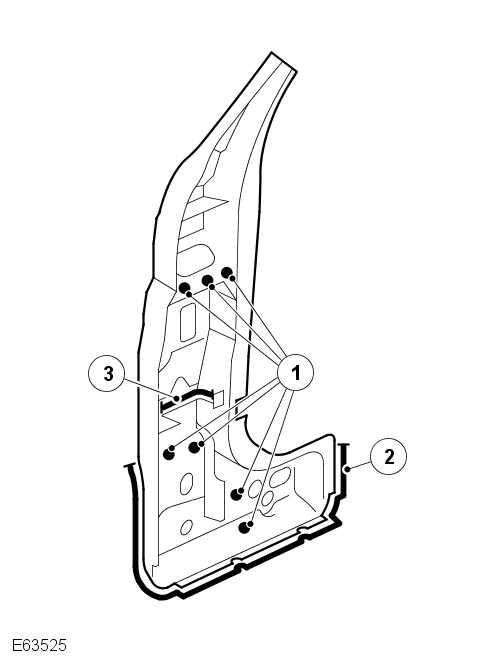

  5. E63525

    ItemDescription
    17 plug welds.
    216 plug welds.
    3Acoustic seal.
  6. For additional information:
      • Welding. For additional information, refer to: Body Repairs (501-25A Body Repairs - General Information -, Description and Operation).
      • Corrosion protection. For additional information, refer to: Corrosion Protection (501-25B Body Repairs - Corrosion Protection -, Description and Operation).
      • Tolerance checks. For additional information, refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
Installation
  1. Install is the reversal of removal.
