Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-30

Rear End Sheet Metal Repairs

Rear Lamp Mounting Panel (G457314)

REMOVAL AND INSTALLATION
Removal
NOTE:

In this procedure, the rear lamp mounting panel is replaced in conjunction with the quarter panel.

  1. Disconnect both battery cables. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the quarter panel. For additional information, refer to: Quarter Panel (501-30 Rear End Sheet Metal Repairs, Removal and Installation).

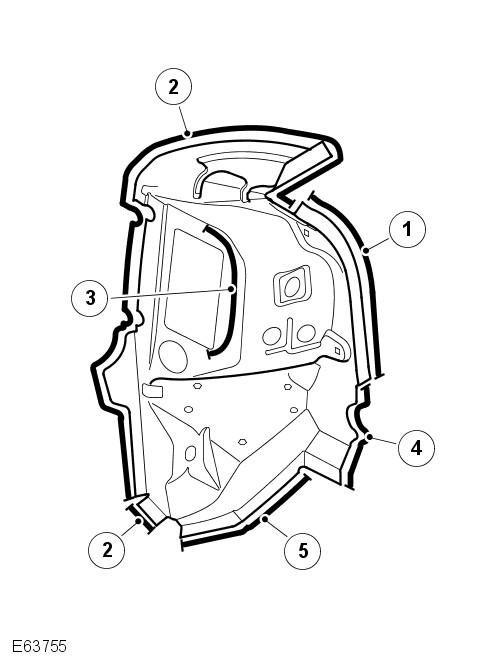

  3. E63755

    ItemDescription
    18 spot welds and adhesive.
    221 plug welds.
    37 plug welds.
    43 plug welds.
    57 spot welds.
  4. For additional information:
      • Welding. For additional information, refer to: Body Repairs (501-25A Body Repairs - General Information -, Description and Operation).
      • Corrosion protection. For additional information, refer to: Corrosion Protection (501-25B Body Repairs - Corrosion Protection -, Description and Operation).
      • Tolerance checks. For additional information, refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
Installation
  1. Install is the reversal of removal.
