2007.0 Range Rover Sport (LS), 501-30

Rear End Sheet Metal Repairs

Water Drain Panel (G457312)

REMOVAL AND INSTALLATION
Removal
NOTES:

  • In this procedure, the water drain panel is replaced in conjunction with the quarter panel.

  • In this procedure, the bulkcut assists in a water drain panel repair by allowing closer access to the area of the panel to be repaired.

  1. Disconnect both battery cables. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the quarter panel. For additional information, refer to: Quarter Panel (501-30 Rear End Sheet Metal Repairs, Removal and Installation).

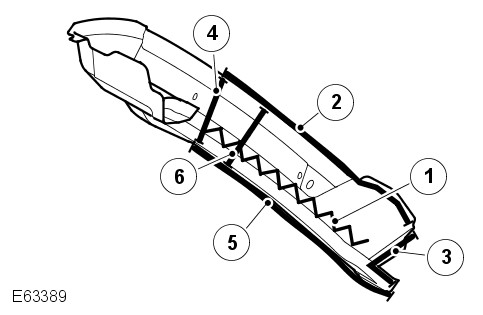

  3. E63389

    ItemDescription
    1Bulkcut.
    212 plug-welds.
    33 plug-welds.
    4Butt weld.
    520 spot-welds.
    6Acoustic seal.
  4. For additional information:
      • Welding. For additional information, refer to: Body Repairs (501-25A Body Repairs - General Information -, Description and Operation).
      • Corrosion protection. For additional information, refer to: Corrosion Protection (501-25B Body Repairs - Corrosion Protection -, Description and Operation).
      • Tolerance checks. For additional information, refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
Installation
  1. Install is the reversal of removal.
