DIAGNOSIS AND TESTING

Overview

For information on the description and operation of the system, refer to the relevant section of the workshop manual. REFER to: Roof Opening Panel (501-17 Roof Opening Panel, Description and Operation).

Inspection and Verification

Verify the customer concern.

Visually inspect for obvious mechanical or electrical faults.

Visual Inspection Chart

Mechanical	Electrical
Glass panel assembly Glass panel seal Frame assembly Sunblind Deflector Access panel Roof opening panel cables Drain tube(s)	Fuses Battery junction box (BJB) - link 11E BJB - link 15E Central junction box (CJB) - Fuse 20P Battery junction box (BJB) Central junction box (CJB) Wiring harness Loose or corroded connector(s) Roof opening panel motor and control module Roof opening panel switch

If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.

Use the approved diagnostic system or a scan tool to retrieve any diagnostic trouble codes (DTCs) before moving onto the symptom chart or DTC index.

Symptom Chart

Symptom	Possible causes	Action
Roof opening panel inoperative	Fuse(s) blown Circuit fault Switch fault Motor fault	Refer to the electrical guides Check the fuse(s) (see visual inspection) Check the roof opening panel circuits Check the switch and motor function For further diagnostic information GO to Pinpoint Test B.
Roof opening panel sticking/jamming	Debris in the channels/guides Cable(s) sticking/damaged Roof opening panel not correctly aligned Switch fault Motor fault	Check for general debris Inspect, clean and lubricate the cable(s) and guides Check the roof opening panel alignment REFER to: Roof Opening Panel Alignment (501-17 Roof Opening Panel, General Procedures). Refer to the electrical guides Check the switch and motor function For further diagnostic information GO to Pinpoint Test C.
Roof opening panel juddering	Debris in the channels/guides Cable(s) sticking/damaged Roof opening panel not correctly aligned Motor fault	Check for general debris Inspect, clean and lubricate the cable(s) and guides Check the roof opening panel alignment REFER to: Roof Opening Panel Alignment (501-17 Roof Opening Panel, General Procedures). Check the motor function
Water ingress from roof opening panel	Debris in the channels/guides Drain tube(s) blocked Damage to the glass panel seal Roof opening panel not correctly aligned	Check for general debris Check for blocked drain tube(s) Check the glass panel seal Check the roof opening panel alignment REFER to: Roof Opening Panel Alignment (501-17 Roof Opening Panel, General Procedures). For further diagnostic information GO to Pinpoint Test A.
Wind noise	Damage to the glass panel seal Cable(s) sticking/damaged Roof opening panel not correctly aligned	Check the glass panel seal Inspect, clean and lubricate the cable(s) and guides Check the roof opening panel alignment REFER to: Roof Opening Panel Alignment (501-17 Roof Opening Panel, General Procedures).

Water Leak Diagnostic Procedure

Introduction

This procedure has been developed to aid diagnosis and rectification of water ingress on vehicles with the aim of providing a right first time fix.

The procedure provides suggested points of water ingress and guidelines for a recommended fix.

Prerequisites

It is assumed the technician working on the vehicle will be at least level 3 trained and normal vehicle service protection equipment will be used where appropriate i.e. seat covers, wing covers etc.

Water Leak Diagnosis

There are certain basic tools required for effective water leak detection the following are a few recommendations.

Basic tools
Hosepipe
Water supply
Pressure Washer
Watering Can
Torch
Mirror (telescopic type)
Air supply
Boning tool (Nylon shaped block for trim removal)

There are several adaptations of tools that can be used, for example a watering can rose attached to a hosepipe to create a spray, or a new sealant tube nozzle attached to a hosepipe can be very effective to direct water into awkward corners, there are also several ready made hosepipe nozzles available from DIY stores which can be switched through several different water patterns, and finally not forgetting a normal car wash. With the exception of a car wash initial diagnosis is more accurate if carried out by two people, one inside and one outside the vehicle, the person outside can direct the water onto the areas where the leak is suspected to be entering, and the person inside can inspect with a 12 volt hand lamp to confirm the entry point.

It is worth bearing in mind that the location that the water appears in the interior of the vehicle, may not be the leak source, for example water lying in the passenger footwell could be entering on the drivers side and running across, behind the fascia. In order to find the water entry point, trim or components may have to be removed.

Staining

Often when water has been entering over a period of time, the water entry point can be located visually by following the stains or tracks left by the leak.

Sealing Water Leaks

There are different substances that can be used to seal water leaks, putty type sealant and wet/paste sealant. Examples of these are bostic (dum-dum) "303 glasticon" and "betafill 10210" which is a white paste and "terostat 33" which is clear.

NOTE:

Do not use silicon based sealers as these will cause problems if any subsequent paint operations are required.

Careful consideration needs be given as to the substance used to seal a water leak, for example an external seam on a white vehicle would require white or clear sealant, dum-dum is best used in concealed places to fill larger gaps. The sealant should be applied in a manner that it does not look unsightly when finished, if used in a box section or under a carpet, applying and smoothing over should be ok, but on the external panels or visible areas the sealant should be "wiped" into the gap and any excess removed with a suitable spirit that will not harm the vehicles paintwork

Once the water entry point has been confirmed, the suspect area must be sufficiently dried prior to the application of any sealing compound the use of a compressed air will assist

Pinpoint Test

PINPOINT TEST A : ROOF OPENING PANEL WATER INGRESS
A1: WATER LEAK TEST
TEST CONDITIONS	DETAILS/RESULTS/ACTIONS
	1 Carry out a water leak test of the roof opening panel
	Is the water ingress via the roof opening panel? Yes GO to A2. No The water ingress is not from the roof opening panel or aperture. Investigate water ingress from other areas

A2: GLASS SEAL LOCATION
TEST CONDITIONS	DETAILS/RESULTS/ACTIONS
	1 Visually inspect the roof opening panel glass seal
	Is the roof opening panel glass seal installed correctly? Yes GO to A6. No GO to A3.

A3: GLASS SEAL CONDITION
TEST CONDITIONS	DETAILS/RESULTS/ACTIONS
	1 Visually inspect the roof opening panel glass seal for damage
	Is the roof opening panel glass seal damaged? Yes Install a new the roof opening panel glass seal REFER to: Roof Opening Panel Weatherstrip (501-17 Roof Opening Panel, Removal and Installation).GO to A4. No Correctly install the roof opening panel glass seal REFER to: Roof Opening Panel Weatherstrip (501-17 Roof Opening Panel, Removal and Installation).GO to A4.

A4: GLASS SEAL GAP
TEST CONDITIONS	DETAILS/RESULTS/ACTIONS

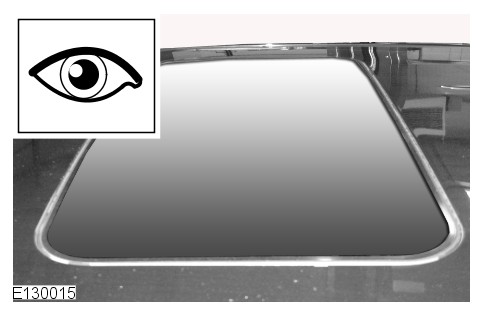

	1 Visually inspect the gap surrounding the roof opening panel glass seal for consistency (Central in aperture)
	Is the roof opening panel glass seal central in the aperture? Yes GO to A5. No Re-align / re-profile the glass panel REFER to: Roof Opening Panel Alignment (501-17 Roof Opening Panel, General Procedures).GO to A5.

A5: WATER LEAK TEST
TEST CONDITIONS	DETAILS/RESULTS/ACTIONS
	1 Carry out a water leak test of the roof opening panel
	Is the water ingress via the roof opening panel? Yes GO to A7. No No further action required

A6: GLASS SEAL GAP
TEST CONDITIONS	DETAILS/RESULTS/ACTIONS
	1 Visually inspect the gap surrounding the roof opening panel glass seal for consistency (Central in aperture)
	Is the roof opening panel glass seal central in the aperture? Yes GO to A7. No Re-align / re-profile the glass panel REFER to: Roof Opening Panel Alignment (501-17 Roof Opening Panel, General Procedures).GO to A5.

A7: DRAIN TUBES ACCESS FROM ABOVE
TEST CONDITIONS	DETAILS/RESULTS/ACTIONS
NOTES: The sliding roof/tilting roof is installed in a water trap. The water drains off via the water trap, water drain holes and drain tubes. The drain tubes lead downwards on both sides via the A-pillar and C-pillar The drain holes or drain tubes can become clogged with leaves, dirt or underbody protection
	1 Check the water trap for leaks
	2 Check the drain tubes for leaks and for correct connection to the water trap
	3 Check the drainage system for unhindered flow, and blow out with compressed air if necessary
	Are drain tubes free from obstruction & working correctly? Yes GO to A8. No GO to A8.

A8: DRAIN TUBES CONNECTION AND ROUTING
TEST CONDITIONS	DETAILS/RESULTS/ACTIONS
	1 Gain access to the drain tubes at the roof opening panel REFER to: Headliner (501-05 Interior Trim and Ornamentation, Removal and Installation).
	2 Confirm that the drain tubes are correctly attached to the roof opening panel
	3 Confirm that the drain tubes are not kinked or twisted

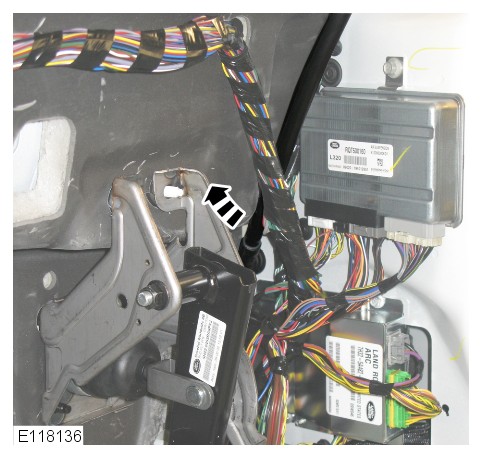

	4 Gain access to the drain tubes where they exit the vehicle

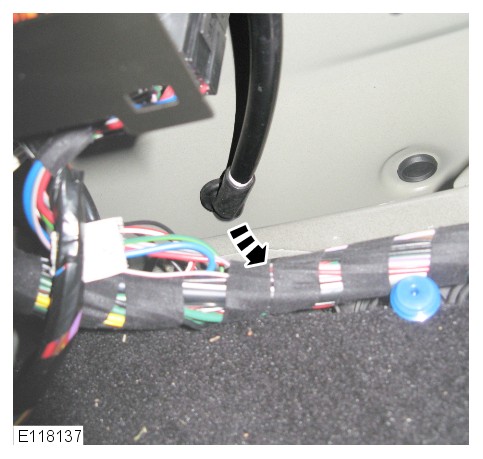

	5 Confirm that the drain tubes correctly exit the vehicle
	Are the drain tubes attached at the roof opening panel and correctly routed within the vehicle? Yes GO to A9. No Correctly install the water drain tubes, confirm that there are no kinks or twistsGO to A9.

A9: WATER LEAK TEST
TEST CONDITIONS	DETAILS/RESULTS/ACTIONS
	1 Carry out a water leak test of the roof opening panel
	Is the water ingress via the roof opening panel? Yes GO to A10. No The water ingress is not from the roof opening panel or aperture. Investigate water ingress from other areas

A10: ROOF OPENING PANEL FRAME JOINT LEAK TEST
TEST CONDITIONS	DETAILS/RESULTS/ACTIONS
	1 Detach all 4 drain tubes and block the ends with butyl (to keep water in the sunroof channels)
	2 Raise the front wheels of the vehicle by 15cm

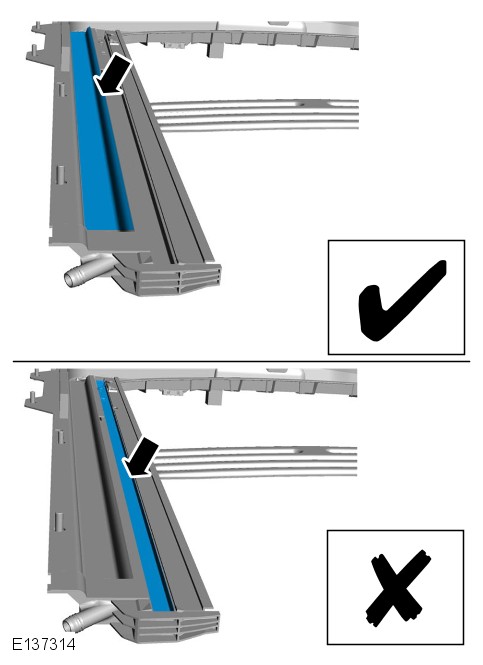

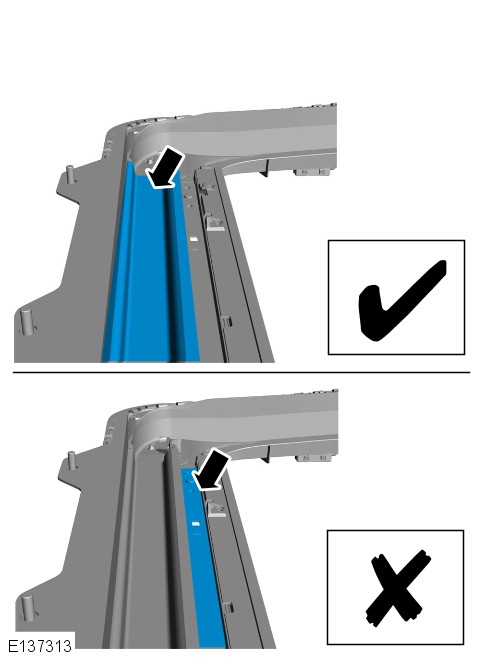

	NOTE: Pour into water management channel only, do not pour water into dry channel 3 Pour 30ml of water into both of the outboard channels to the fill rear end caps
	4 Lower the front vehicle
	5 Pour water over joint between the guide rail and front cross member
	6 Adjust the angle by raising the rear of the vehicle to ensure water covers the joints (shown). Leave in this condition for 15 minutes
	7 Inspect the rail joints for water ingress
	Is the water ingress via the roof opening panel frame through the rail joints with plastic components? Yes GO to A11. No Contact dealer technical support

A11: RAIL JOINT REPAIR
TEST CONDITIONS	DETAILS/RESULTS/ACTIONS

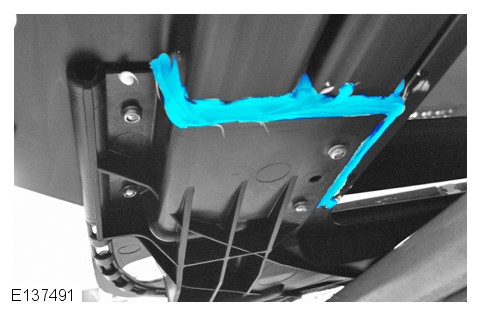

	1 Rail Joint Repair
	2 Thoroughly clean and degrease the areas to be sealed, dry the area using compressed air

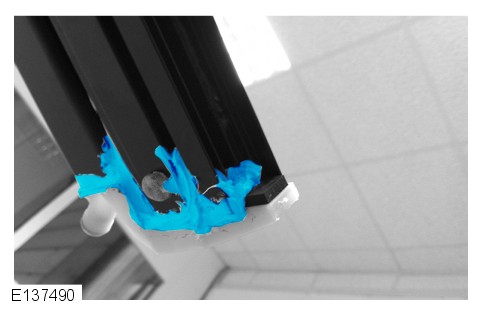

	NOTE: Use sealant 'Betafill 10210' or equivalent not silicone sealant 3 Apply the sealant to cover the entire joint, repeat for each failed joint
	4 Allow 24 hours for sealer to cure
	5 Carry out a water leak test of the roof opening panel
	Is the water ingress via the roof opening panel? Yes Contact dealer technical support No No further action required

Pinpoint Test

PINPOINT TEST B : ROOF OPENING PANEL INOPERATIVE
B1: OPERATION
TEST CONDITIONS	DETAILS/RESULTS/ACTIONS
	1 Operate the roof opening panel using the overhead console mounted switch
	Does the roof opening panel move or attempt to move? Yes Refer to symptom chart above - Roof opening panel sticking/jamming No GO to B2.

B2: CALIBRATION ROUTINE AND RESET
TEST CONDITIONS	DETAILS/RESULTS/ACTIONS
	1 Complete the roof opening panel calibration routine and reset the functions. Start the engine Ensure blind is fully closed Press and hold the tilt switch. When the roof is in the full tilt position, release the switch Press and hold the tilt switch again for 20 seconds The roof and blind will then open. Ensure the switch remains pressed throughout the full opening and closing movement, until the roof is fully closed Once the roof is in the fully closed position, the routine is complete
	2 Operate the roof opening panel using the overhead console mounted switch
	Does the roof opening panel operate correctly? Yes No further action required No GO to B3.

B3: SWITCH - CIRCUIT CHECK 1
TEST CONDITIONS	DETAILS/RESULTS/ACTIONS
NOTE: The roof opening panel motor gives a voltage out on the open and close circuits which is grounded when the switch is operated, this voltage should be greater than 7volts (switch inactive) and less than 1volt (switch active) with the ignition state switched to on
	1 Refer to the electrical circuit diagrams and locate the open and close circuits between the roof opening panel motor and the roof opening panel switch, monitor the voltage on each circuit as the switch is operated
	Do both open and close switch circuit voltages change from greater than 7volts to less than 1volt when the roof opening panel open or close switches are operated? Yes GO to B7. No GO to B4.

B4: SWITCH - CIRCUIT CHECK 2
TEST CONDITIONS	DETAILS/RESULTS/ACTIONS
NOTES: During the previous check, if the voltage remained high (greater than 7volts), refer to the electrical circuit diagrams and check the switch circuit for fault. During the previous check, if the voltage remained low (less than 1volt), refer to the electrical circuit diagrams and check the roof opening panel motor circuit for fault.
	1 Refer to notes above
	Did the voltage remain low (less than 1volt)? Yes GO to B5. No GO to B7.

B5: POWER SUPPLY
TEST CONDITIONS	DETAILS/RESULTS/ACTIONS
	1 Refer to the electrical circuit diagrams and check the voltage between the power - VBATT - and ground - GND - circuits to the roof opening panel motor for battery supply voltage (approx. 12volts)
	Do the (VBATT) and (GND) circuits to the roof opening panel motor receive battery supply voltage? Yes GO to B6. No Refer to the electrical circuit diagrams, investigate and rectify the loss of power to the roof opening panel

B6: LIN BUS CIRCUIT
TEST CONDITIONS	DETAILS/RESULTS/ACTIONS
NOTE: The authorization signal is transmitted via the LIN Bus circuit when the ignition status is set to on
	1 Refer to the electrical circuit diagrams and check the (LIN Bus) circuit between the central junction and the roof opening panel control module for continuity
	Did the (LIN Bus) circuit pass the continuity test? Yes GO to B7. No Refer to the electrical circuit diagrams, investigate and rectify the circuit fault

B7: ROOF OPENING PANEL MOTOR
TEST CONDITIONS	DETAILS/RESULTS/ACTIONS
	1 Install a new roof opening panel motor REFER to: Roof Opening Panel Motor (501-17 Roof Opening Panel, Removal and Installation).
	2 Complete the roof opening panel calibration routine and reset the functions. Start the engine Ensure blind is fully closed Press and hold the tilt switch. When the roof is in the full tilt position, release the switch Press and hold the tilt switch again for 20 seconds The roof and blind will then open. Ensure the switch remains pressed throughout the full opening and closing movement, until the roof is fully closed Once the roof is in the fully closed position, the routine is complete
	Does the roof opening panel operate correctly? Yes No further action required No If customer concern is still evident contact dealer technical support

Pinpoint Test

PINPOINT TEST C : ROOF OPENING PANEL STICKING / JAMMING
C1: SIDE COVER / CONCERTINA JAMMING
TEST CONDITIONS	DETAILS/RESULTS/ACTIONS
	1 Operate the roof opening panel using the overhead console mounted switch
	Is the side cover/concertina jamming? Yes GO to C2. No GO to C3.

C2: SIDE COVER / CONCERTINA DAMAGE
TEST CONDITIONS	DETAILS/RESULTS/ACTIONS
	1 Visually inspect the side cover/concertina for damage
	Is the side cover/concertina damaged? Yes Replace the side cover/concertina. Check for correct roof opening panel operation No Correctly install the side cover/concertina. Check for correct roof opening panel operation

C3: GLASS SEAL GAP
TEST CONDITIONS	DETAILS/RESULTS/ACTIONS
	1 Visually inspect the gap surrounding the roof opening panel glass seal for consistency (Central in aperture)
	Is the roof opening panel glass seal central in the aperture? Yes GO to C4. No Re-align / re-profile the glass panel REFER to: Roof Opening Panel Alignment (501-17 Roof Opening Panel, General Procedures). Check for correct roof opening panel operation. If customer concern is still evident contact dealer technical support

C4: RAIL DAMAGE
TEST CONDITIONS	DETAILS/RESULTS/ACTIONS
	1 Visually inspect the roof opening panel rails for damage
	Are the roof opening panel rails for damaged? Yes Replace roof opening panel frame assembly (not the complete roof opening panel) REFER to: Roof Opening Panel (501-17 Roof Opening Panel, Removal and Installation).. No Clean and lubricate the roof opening panel rails using lubricant Klubersynth LF 44-22. Check for correct roof opening panel operation. If customer concern is still evident contact dealer technical support
