Published: 22-Jun-2011

2007.0 Range Rover Sport (LS), 501-17

Roof Opening Panel (G424768)

REMOVAL AND INSTALLATION
  • 76.84.01
  • Sun/sliding roof - complete - front - renew
  • All Derivatives
  • 3.20
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the roof opening panel glass. For additional information, refer to: Roof Opening Panel Glass (501-17 Roof Opening Panel, Removal and Installation).
  3. Remove the headliner. For additional information, refer to: Headliner (501-05 Interior Trim and Ornamentation, Removal and Installation).

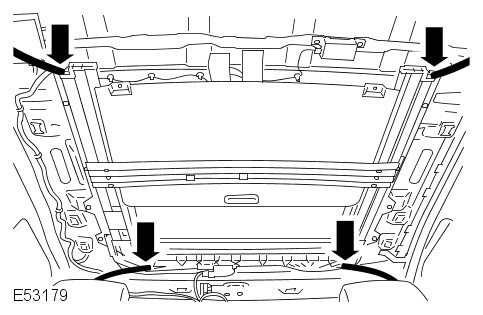

  4. E53179
    Release the 4 drain hoses from the roof opening panel.
      • Release the 4 clips.

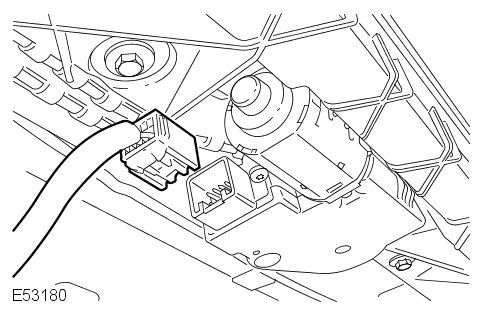

  5. E53180
    Disconnect the roof opening panel motor electrical connector.

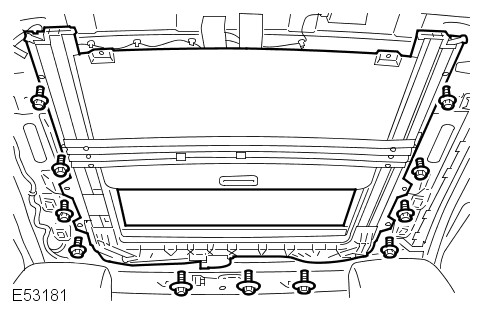

  6. E53181
    With assistance, remove the roof opening panel assembly.
      • Remove the 11 bolts.
  7. NOTE:

    Do not disassemble further if the component is removed for access only.

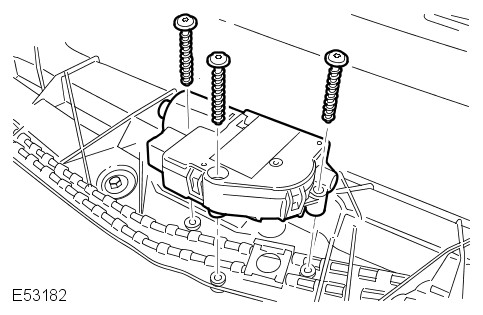

    E53182
    Remove the roof opening panel motor.
      • Remove the 3 Torx screws.
Installation
  1. WARNING:

    If the roof opening panel motor is being replaced, the one touch and anti-trap function will become inoperative. Close the roof opening panel and continue to hold the switch for a further 20 seconds to allow the sunroof to complete a full cycle. This will complete the roof opening panel calibration routine and reset these functions.

    Install the motor.
      • Tighten the Torx screws to 3 Nm.
  2. With assistance, install the roof opening panel assembly.
      • Clean the component mating faces.
      • Tighten the bolts to 11 Nm.
  3. Connect the roof opening panel motor electrical connector.
  4. Connect the drain hoses.
      • Make sure the drain hoses are clear prior to connection.
      • Secure with the clips.
  5. Install the headliner. For additional information, refer to: Headliner (501-05 Interior Trim and Ornamentation, Removal and Installation).
  6. Install the roof opening panel glass. For additional information, refer to: Roof Opening Panel Glass (501-17 Roof Opening Panel, Removal and Installation).
  7. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  8. Using the Land Rover approved diagnostic system, configure a new roof opening panel motor.
