Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-05

Interior Trim and Ornamentation

Headliner (G421017)

REMOVAL AND INSTALLATION
  • 76.64.15
  • Headlining - sunshine/sliding roof condition - renew
  • All Derivatives
  • 2.60
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove both A-pillar upper trim panels. For additional information, refer to: A-Pillar Trim Panel (501-05, Removal and Installation).
  3. Remove both B-pillar upper trim panels. For additional information, refer to: B-Pillar Upper Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  4. Remove both C-pillar upper trim panels. For additional information, refer to: C-Pillar Upper Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  5. Remove both D-pillar upper trim panels. For additional information, refer to: D-Pillar Trim Panel (501-05, Removal and Installation).

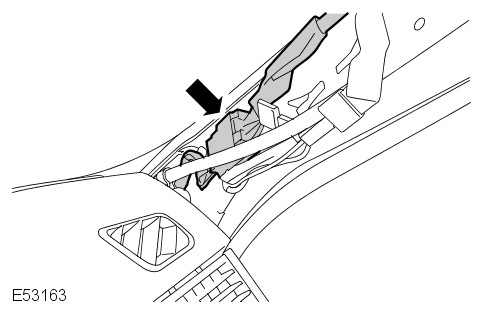

  6. E53163
    Disconnect the RH A-pillar electrical connector.
      • Release the wiring harness from the 4 clips.

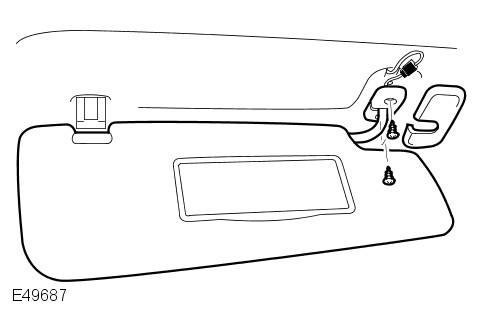

  7. E49687
    Remove the sun visor.
      • Remove the cover.
      • Remove the 2 screws.
      • Release from the clip.
      • Disconnect the electrical connector.
      • Repeat the above procedure for the other side.

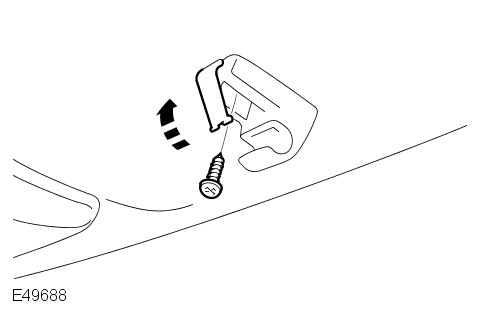

  8. E49688
    Remove the sun visor retaining clip.
      • Release the screw cover.
      • Remove the screw.
      • Repeat the above procedure for the other side.
  9. E53164
    Remove the front overhead console.
      • Carefully release the 9 clips.
      • Disconnect the 4 electrical connectors.
  10. E49689
    Remove the 4 passenger assist handles.
      • Release the 2 screw covers.
      • Remove the 2 screws.
      • Repeat the above procedure for the other handles.
  11. E53165
    Remove the rear speakers.
      • Remove the speaker grilles.
      • Remove the 6 screws.
      • Disconnect the 2 electrical connectors.
  12. Position the front seats fully forward.
  13. E53166
    With assistance, carefully remove the headliner.
      • Release the 4 clips.
  14. NOTE:

    Do not disassemble further if the component is removed for access only.

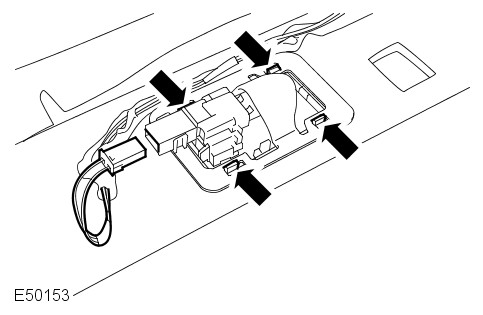

    E50153
    Remove the interior lamp bezels.
      • Disconnect the electrical connector.
      • Release the 4 clips.
      • Remove the retaining plate.
      • Repeat the above procedure for the other lamp.

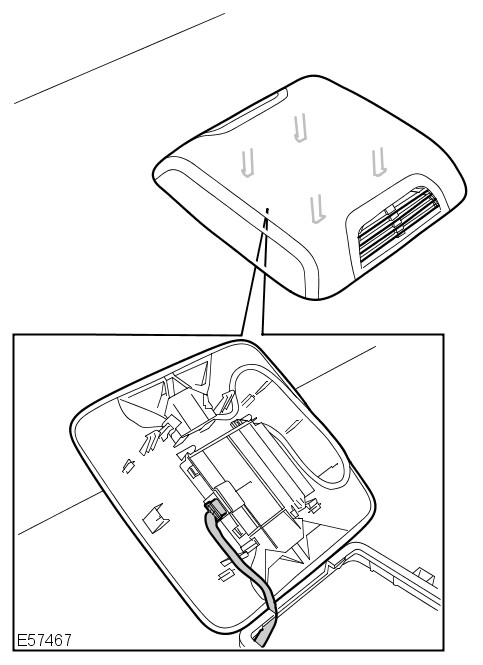

  15. E57467
    Remove the volumetric module.
      • Release the 4 clips.
      • Disconnect the electrical connector.
  16. Remove the volumetric module bezel.
  17. Remove the headliner wiring harness.

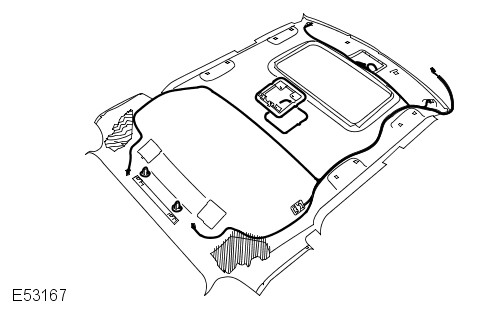

  18. E53167
    Remove the 2 clips.
Installation
  1. Install the clips.
  2. Install the headliner wiring harness.
  3. Install the volumetric module bezel.
  4. Install the volumetric module.
      • Connect and secure the electrical connector.
      • Secure the clips.
  5. Install the interior lamp bezels.
      • Connect the electrical connector.
      • Install the retaining plate.
      • Secure the clips.
      • Repeat the above procedure for the other side.
  6. With assistance, carefully install the headliner.
      • Secure with the clips.
      • Install the screws.
  7. Reposition the front seats.
  8. Install the front overhead console.
      • Connect the electrical connector.
      • Carefully secure the clips.
      • Connect and secure the electrical connectors.
  9. Install the sun visors.
      • Connect the electrical connectors.
      • Install the screws.
      • Install the screw covers.
      • Secure the clips.
  10. Install the passenger assist handles.
      • Install the screws.
      • Install the screw covers.
  11. Install the rear speakers.
      • Connect and secure the electrical connectors.
      • Install the screws.
      • Install the speaker grilles.
  12. Connect the RH A-pillar electrical connector.
  13. Install both D-pillar upper trim panels. For additional information, refer to: D-Pillar Trim Panel (501-05, Removal and Installation).
  14. Install both C-pillar upper trim panels. For additional information, refer to: C-Pillar Upper Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  15. Install both B-pillar upper trim panels. For additional information, refer to: B-Pillar Upper Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  16. Install both A-pillar upper trim panels. For additional information, refer to: A-Pillar Trim Panel (501-05, Removal and Installation).
  17. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
