2007.0 Range Rover Sport (LS), 501-05

Interior Trim and Ornamentation

B-Pillar Upper Trim Panel (G301329)

REMOVAL AND INSTALLATION
  • 76.13.28
  • B-Pillar Upper Trim Panel - Renew
  • All Derivatives
  • 0.30
  • USED WITHINS
Removal
  1. Make the SRS system safe. For additional information, refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).
  2. Remove the B-pillar lower trim panel. For additional information, refer to: B-Pillar Lower Trim Panel (501-05, Removal and Installation).

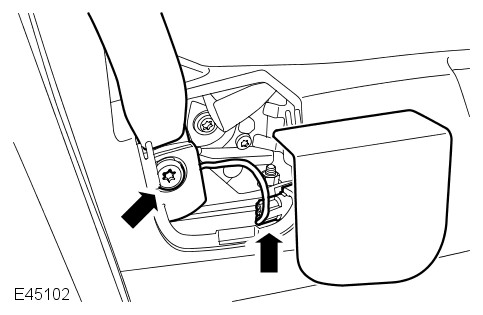

  3. E45102
    Release the safety belt lower anchor from the seat.
      • Remove the bolt cover.
      • Passenger side, disconnect the electrical connector.
      • Remove the Torx bolt.
  4. NOTE:

    Make sure the seat belt height adjuster is at its lowest point prior to removal of the B-pillar upper trim panel.

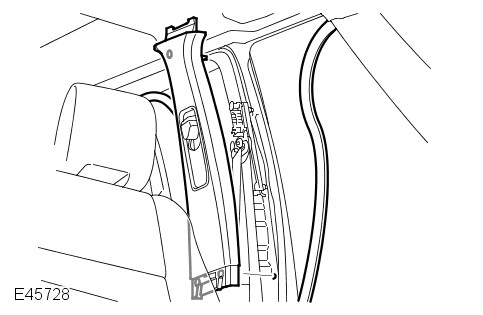

    E45728
    Remove the B-pillar upper trim panel.
      • Release the front and rear door weatherstrips for access.
      • Release the 2 lower clips, then the remaining upper clip.
      • Release the safety belt.
Installation
  1. Install the B-pillar upper trim panel.
      • Secure with the clips.
      • Attach the safety belt.
      • Attach the door weatherstrips.
  2. Attach the safety belt lower anchor to the seat.
      • Tighten the Torx bolt to 40 Nm (30 lb.ft).
      • Passenger side, connect the electrical connector.
      • Install the bolt cover.
  3. Install the B-pillar lower trim panel. For additional information, refer to: B-Pillar Lower Trim Panel (501-05, Removal and Installation).
