Standard Workshop Practices (G427725)

Loading...

When working on a vehicle in the workshop always make sure that:

• Where practicable, the parking brake is applied and the wheels are securely chocked to prevent the vehicle moving forwards or backwards.
• Whenever possible, the ignition key is removed before any work is carried out on the vehicle.
• If the engine is to be run, there is adequate ventilation, or an extraction hose is used to remove exhaust fumes.
• There is adequate room to raise the vehicle and remove the wheels, if necessary.
• Fender covers are always installed if any work is to be carried out in the engine compartment.
• Where practicable, the battery is disconnected if working on the engine, underneath the vehicle, or if the vehicle is raised.

Prior to disconnecting the battery, refer to the Electrical Section of this manual - Battery disconnection/connection. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).

• If using welding equipment on the vehicle, a suitable fire extinguisher is readily available.

Prior to carrying out any procedures which involve disconnecting/ or connecting the battery, refer to the Electrical Section of this manual - Battery disconnection/connection. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).

Following jump starting of a disabled vehicle, the discharged battery must be checked for serviceability and recharged off the vehicle as soon as possible to avoid permanent damage.

Do not rely on the generator to restore a discharged battery. For a generator to recharge a battery, it would take in excess of eight hours continuous driving with no additional loads placed on the battery.

• Always make sure that the jumper cables are adequate for the task.
• Always make sure that the slave battery is of the same voltage as the vehicle battery. The batteries must be connected in parallel.
• Always make sure that switchable electric circuits are switched off before connecting jumper cables. This reduces the risk of arcing occurring when the final connection is made.

Component removal

Whenever possible, clean components and the surrounding area before removal.

• Blank off openings exposed by component removal.
• Following disconnection, seal fuel, oil or hydraulic lines immediately using suitable blanking plugs or caps.
• Seal open ends of exposed oilways using suitable tapered hardwood plugs or conspicuous plastic plugs.
• Immediately a component is removed, place it in a suitable container; use a separate container for each component and its associated parts.
• Clean bench and provide marking materials, labels and containers before disassembling components.

Disassembling

Observe scrupulous cleanliness when disassembling components, particularly when brake, fuel, air suspension or hydraulic system parts are disassembled. A particle of dirt or cloth fragment could cause a serious malfunction if trapped in these systems.

• Blow out all tapped holes, crevices, oilways and fluid passages with dry, compressed air.

• Use suitable marker ink to identify mating parts, do not use a scriber or centre punch as they could initiate cracks or distortion.
• Wire or tape mating parts together where necessary to prevent accidental interchange.
• Suitably identify parts which are to be renewed and to those parts requiring further inspection. Keep these parts separate.
• To make sure that the correct replacement part has been obtained, do not discard a part due for renewal until after comparing it with the new part.

Always use cleaning agents which are suitable for the work being undertaken and the components being cleaned. NEVER use gasoline (petrol) as a cleaning agent (degreaser). Always make sure that the component being cleaned is compatible with the cleaning agent.

Always follow the manufacturer's instructions regarding the use of cleaning agents and make sure that the environment in which the work is being undertaken is suitable. See Health and Safety Precautions for further information regarding cleaning.

All components should be inspected for wear or damage before reassembling.

• Always make sure that component to be inspected is clean and free from oil or grease.
• When a component is to be checked dimensionally against design specified values, use the appropriate measuring equipment i.e. micrometers, verniers, surface plates, dial test indicators (DTI).
• Always make sure that all measuring equipment is correctly calibrated before use.
• Reject a component which is not within specified values/limits or if it appears to be damaged.
• A component may be reinstalled if dimensions obtained during checking are at the maximum tolerance limit and it is in an undamaged condition.
• Bearing journal clearances should be checked where necessary using Plastigage.
• Gaskets, seals and O-ring seals are to be re-used unless damaged.

All gaskets should be installed dry unless stated otherwise. Always apply the specified lubricant to O-rings and install O-rings using the fingers only.

Use gasket removal spray and/or plastic scrapers to remove traces of old gasket.

Many joints use sealants instead of gaskets as the sealing medium. Where this is the case, the sealant together with its part number will be found listed in the relevant repair operation and also in the sealants table.

Do not allow sealant to enter tapped holes or oilways.

Always replace locking devices with one of the same design and of the correct size.

Tab washers

Always release locking tabs before loosening fixings, do not reuse tab washers.

Locknuts

Always use a backing spanner when loosening and tightening locknuts, brake and fuel pipe unions.

Roll pins

Always install new roll pins of the correct size.

Circlips

Always install new circlips ensuring that they are of the correct size for the groove.

Woodruff keys

Woodruff keys may be reused provided there is no indication of wear or distortion.

Remove any burrs from edges of keyways using a fine file.

Split pins

Never attempt to straighten and reuse a split pin, always make sure that replacement pins are of the correct size for the hole in which they are to be installed.

• Damaged nuts, bolts and screws must always be discarded. Attempting to recut or repair damaged threads with a tap or die impairs the strength and fit of the threads and is not recommended.

• Some bolts are coated with a thread locking agent and unless stated otherwise, they must not be reused. New bolts having the same part number as the original must always be installed. When nuts or bolts are to be discarded, the repair operation and relevant torque chart will include an instruction to that effect. Do not use proprietary thread locking agents as they may not meet the specification required. See also Encapsulated ('Patched') Bolts and Screws.
• Always make sure that replacement nuts and bolts are at least equal in strength to those that they are replacing. Castellated nuts must not be loosened to accept a split pin except in recommended cases when this forms part of an adjustment.
• Do not allow oil or grease to enter blind holes, the hydraulic action resulting from tightening the bolt or stud can split the housing and also give a false torque reading.
• Always tighten a nut, bolt or screw to the specified torque figure, damaged or corroded threads can give a false torque reading.
• Nut and bolt loosening and tightening sequences, where given, must ALWAYS be followed. Distortion of components or faulty sealing of joints will result if the sequences are not followed. Where an instruction is given to tighten in stages, these stages must be adhered to; do not attempt to combine stages particularly where certain stages involve tightening by degrees.
• To check or re-tighten a fixing to a specified torque, first loosen a quarter of a turn, then retighten to the specified torque figure.
• Unless instructed otherwise, do not lubricate bolt or nut threads prior to installing.

Where it is stated that bolts and screws may be reused, the following procedures must be carried out:

• Check that threads are undamaged.
• Remove all traces of locking agent from the threads.

• Make sure that threads are clean and free from oil or grease.
• Apply the specified locking agent to the bolt threads.

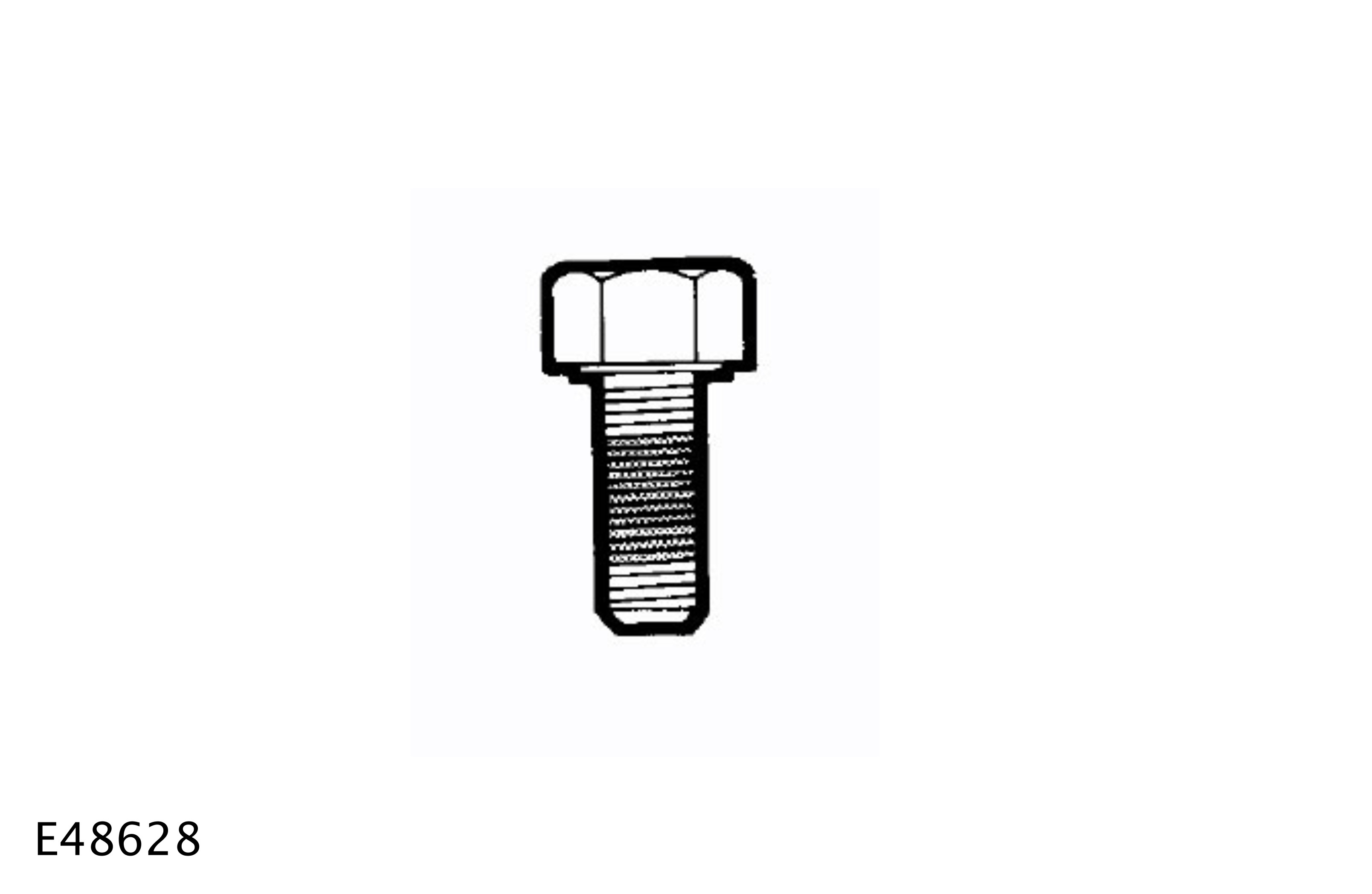

An ISO metric bolt or screw made of steel and larger than 6 mm in diameter can be identified by either of the symbols ISO M or M embossed or indented on top of the bolt head.

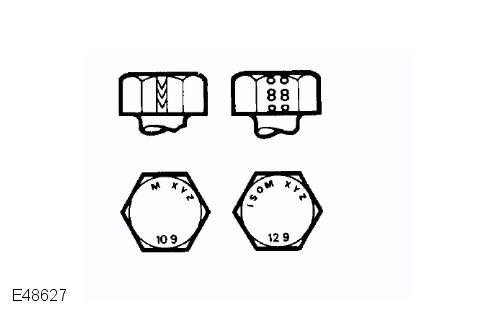

In addition to marks identifying the manufacturer, the top of the bolt head is also marked with symbols indicating the strength grade e.g. 8.8, 10.9, 12.9, 14.9. Alternatively, some bolts and screws have the M and strength grade symbol stamped on the flats of the hexagon.

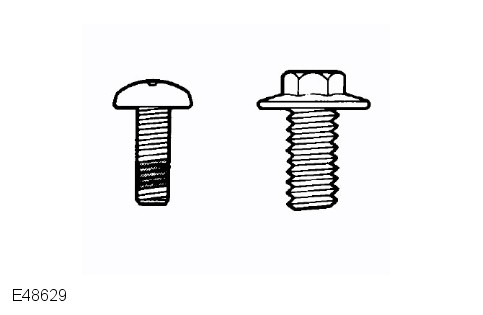

Encapsulated ('Patched') bolts and screws

Encapsulated ('patched') bolts and screws have a thread locking agent applied to the threads during manufacture. Most thread locking agents are colored, the band of color extending for 360 degrees around the thread. Some locking agents however, are neutral in color and may not be so easily identified apart from a slightly darker area of thread where the locking agent has been applied. The locking agent is released and activated by the tightening process and is then chemically cured to provide the locking action.

Self-locking bolts and screws

Unless stated in a specific repair procedure, self-locking bolts and screws i.e. nylon patched or trilobular thread can be reused provided that resistance is felt when the locking portion enters the female thread.

Nylon patched bolts and screws have a locking agent either applied to, or inserted in the threaded portion. They are identified by the presence of a colored section of thread extending approximately 180 degrees around the thread or by a colored plug inserted into the bolt.

Trilobular bolts have a special thread form which creates a slight interference with the thread of the hole or nut into which it is screwed.

Trilobular bolts should not be used as a substitute for patched bolts.

Nut identification

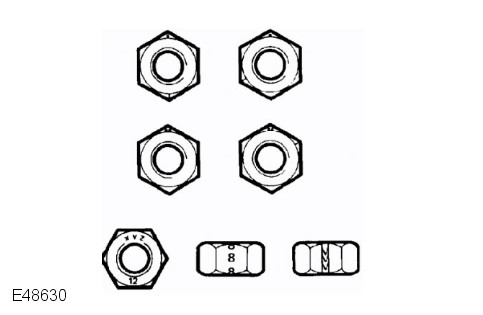

A nut with an ISO metric thread is marked on one face or one of the hexagonal flats with the strength grade symbol 8, 12, 14. Some nuts with the strength grade 4, 5 or 6 are also marked and some have the metric symbol M on the hexagonal flat opposite the strength grade marking.

A clock face system is sometimes used as an alternative method of indicating the strength grade. The external chamfers or a face of the nut is marked in a position relative to the appropriate hour mark on a clock face to indicate the strength grade.

A dot is used to locate the 12 o'clock position and a dash to indicate the strength grade. If the grade is above 12, two dots identify the 12 o'clock position.

When tightening a slotted or castellated nut, never loosen it to insert a split pin except where specified as part of an adjustment procedure. If difficulty is experienced in correctly positioning the slot, alternative washers or nuts should be selected.

Where a nut is tightened to adjust or maintain bearing pre-load, the tightening procedure must be adhered to.

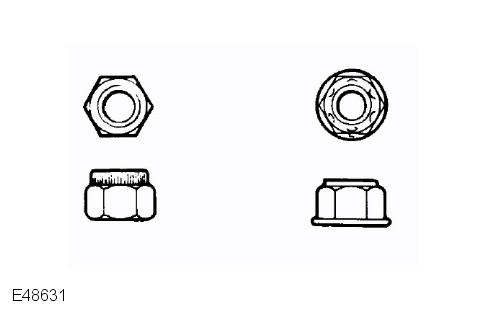

Self-locking nuts

Unless stated otherwise, self-locking nuts once removed must be discarded and new nuts of the same type and strength grade installed.

Always make sure that suitable eye protection is worn when working on the air suspension system.

When removing and installing bearings, make sure that the following practices are observed to make sure component serviceability:

• Remove all traces from bearing under inspection by cleaning with a suitable degreasant; maintain absolute cleanliness throughout operations.
• Conduct a visual inspection for markings on rolling elements, raceways, outer surfaces of outer or inner surfaces of inner rings. Reject any bearings found to be marked since marking in these areas indicates onset of wear.
• Hold inner race of bearing between finger and thumb of one hand and rotate outer race to check that it revolves absolutely smoothly. Repeat holding outer race and rotating inner race. DO NOT spin the bearing.
• Rotate outer ring gently using a reciprocating movement whilst holding inner ring; feel for any check or obstruction to rotation. Reject bearing if movement is not absolutely smooth.
• Check bearing for blueing or signs of overheating.
• Lubricate bearing with the specified lubricant.
• Inspect bearing surface of shaft and bearing housing for discoloration or other markings which indicate overheating of bearing or movement between bearing and seating.
• Before installing bearing, make sure that shaft and bearing housing are clean and free from burrs.
• If one bearing of a pair shows signs of wear, overheating etc., it is advisable to replace bearings as a pair unless it is suspected that one bearing may have been faulty when installed, was installed incorrectly or the fault arose due to oil seal failure.
• Never reinstall a bearing unless it is in a fully serviceable condition.

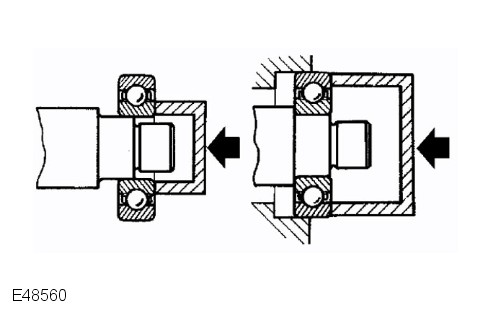

• When installing a bearing to a shaft, only apply force to the inner ring of the bearing. When installing a bearing into a housing, only apply force to the outer ring of the bearing.

• In the case of grease lubricated bearings, fill the space between the bearing and outer seal with the recommended grade of grease before installing the seal.

• Always make suitable reference marks between the components of separable bearings e.g. taper roller bearings when disassembling to make sure correct location of components when assembling. Never install new rollers in an outer ring, always install a new bearing assembly.

Always install the correct grade and specification of brake pads and linings. When replacing these items, always replace as complete axle sets.

Always observe the following recommendations when working on the braking system:

• Always use two spanners when loosening or tightening brake pipes or hose connections.
• Make sure that hoses run in a natural curve and are not kinked or twisted.
• Install brake pipes and hoses securely in their retaining clips and make sure that they cannot contact a potential chafing point.
• Containers used for brake fluid must be kept absolutely clean.
• Do not store brake fluid in unsealed containers, the fluid will absorb water which will lower the boiling point of the fluid.
• Do not allow brake fluid to be contaminated with other fluids such as mineral oil and do not put brake fluid in a container which has previously been used for storing other fluids.
• Do not reuse brake fluid which has been bled from the system.
• Always use brake fluid or a suitable brake cleaning fluid to clean hydraulic components.
• Unless stated otherwise, use only clean brake fluid to lubricate hydraulic seals and components.
• Always install blanking plugs to hoses, pipes or components immediately after disconnection.
• Check thread compatibility of original equipment with replacement components.
• Observe absolute cleanliness when working with hydraulic components.

When removing or installing flexible hydraulic pipes and hoses, make sure that the following procedures are observed to make sure component serviceability:

• Prior to removal, clean area around hose or pipe end which is to be disconnected.
• Obtain appropriate blanking plugs or caps before disconnecting hose or pipe end fittings in order that connections can be plugged immediately following disconnection.
• Always install blanking plugs or caps to pipes and unions immediately following disconnection.
• Clean hose or pipe and blow through with an air line.

• Check hoses externally for cracks, separation of plies, security of end fittings and external damage; replace faulty hoses.
• Check pipes for signs of corrosion and chafing, replace as necessary.

• When installing hoses, make sure that no unnecesary bends are introduced and that hoses are not kinked, twisted or positioned close to potential chafing points.
• When installing pipes, make sure that pipes are positioned and clipped clear of potential chafing points.
• Always replace sealing washers installed to banjo bolts, sealing plugs etc.
• Always use a backing spanner when tightening unions and do not overtighten union nuts or banjo bolts.
• After any work on hydraulic systems, always check for fluid leaks whilst a second operator applies working pressure to the brake pedal or operates the system that has been worked on.

All fuel hoses are made up of two laminations, an armored rubber outer sleeve and an inner viton core. Whenever a hose is removed, make sure that the inner bore is inspected to check that the viton lining has not become separated from the outer sleeve.

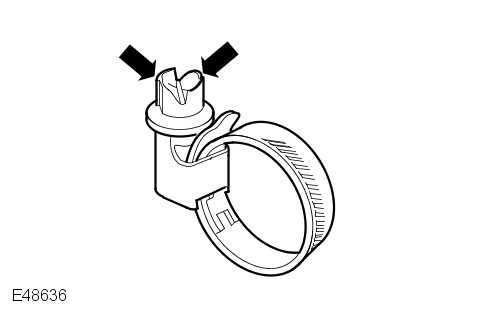

Certain fuel system hose clips are of the 'break-off head' type where a slot in the screw head shears off when the clip is tightened to a specific torque. These clips may be removed using a screwdriver and must be replaced with new clips on reassembly. Clips must be tightened until the portion of the slot shears off. Do not attempt to tighten clips by any other method, do not install any other type of clip.

Correct orientation of cooling system hoses is important to make sure that hoses do not become fatigued or damaged through contact with adjacent components.

Where orientation marks are provided on the hose and corresponding component, the marks must be aligned when the hose is installed. Hoses must be installed fully on to their connection points, usually a moulded form on a pipe provides a positive indicator.

Markings are usually provided on the hose to indicate the correct clip position. If no markings are provided, position the clip directly behind the retaining lip at the end of the stub pipe. Worm drive clips should be orientated with the crimped side of the drive housing facing towards the end of the hose or the hose may become pinched between the clip and the stub pipe retaining lip. Unless otherwise stated, worm drive clips should be tightened to 3 Nm (2 lbf.ft). Make sure that hose clips do not foul adjacent components.

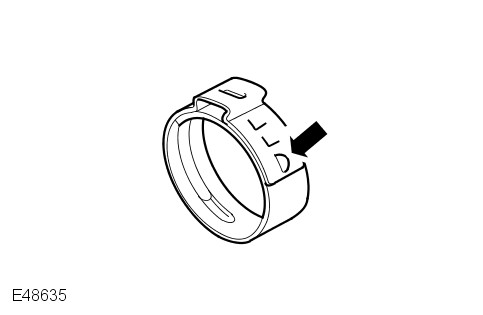

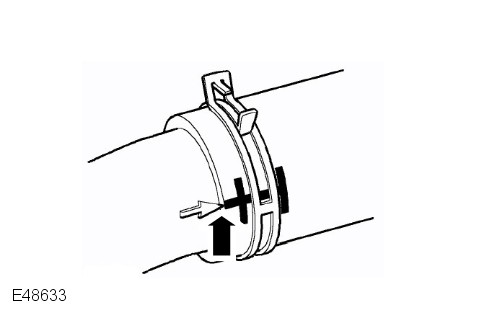

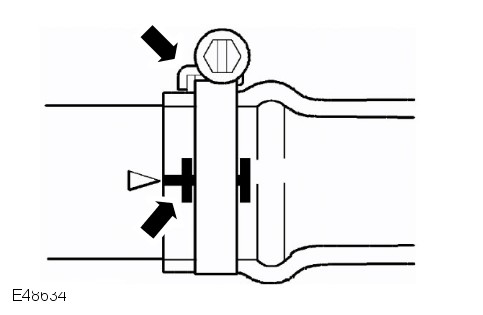

Oetiker clips may be removed by bending the tag (arrowed) and releasing the free end of the clip. Clips must not be reused. When installing new clips, make sure clip is positioned on hose before tightening and make sure that when clip is tightened, the tag is located in the longitudinal slot in the free end of the clip (arrowed in illustration).

General

The following guidelines are intended to make sure the safety of the operator whilst preventing damage to the electrical and electronic components of this vehicle.

Equipment

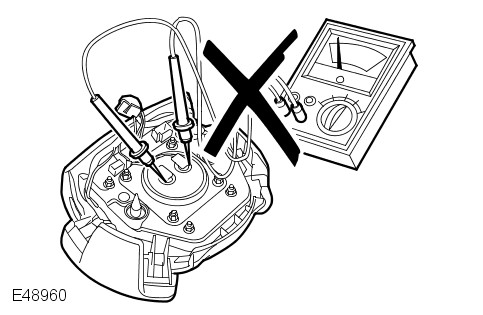

Prior to commencing any test procedure on the vehicle, make sure that the relevant test equipment is working correctly and that any harness or connectors are in good condition. It is particularly important to check the condition of all plugs and leads of mains operated equipment.

Polarity

Never reverse connect the vehicle battery and always make sure the correct polarity when connecting test equipment.

High voltage circuits

Whenever disconnecting live ht circuits, always use insulated pliers and never allow the open end of the ht lead to contact other components, particularly ECU's.

Vehicles installed with Bi-Xenon headlamp bulbs

• Safety goggles and gloves must be worn.
• Make sure that headlamps are switched off before removing bulbs.
• Do not touch the glass portion of the bulb.
• On no account should headlamps be switched on with the bulb removed from the headlamp.
• Bulb testing may only be carried out with the bulb installed in the headlamp.
• Bulbs must be disposed of in accordance with the local authority bye-laws.

Connectors and harnesses

The engine compartment of a vehicle is a particularly hostile environment for electrical components and connectors. Always observe the following:

• Make sure electrically related items are dry and oil free before disconnecting/connecting test equipment.
• Make sure that disconnected multiplugs and sensors are protected from any possible oil, coolant or other liquid contamination. Any such contamination could impair performance or lead to component failure.

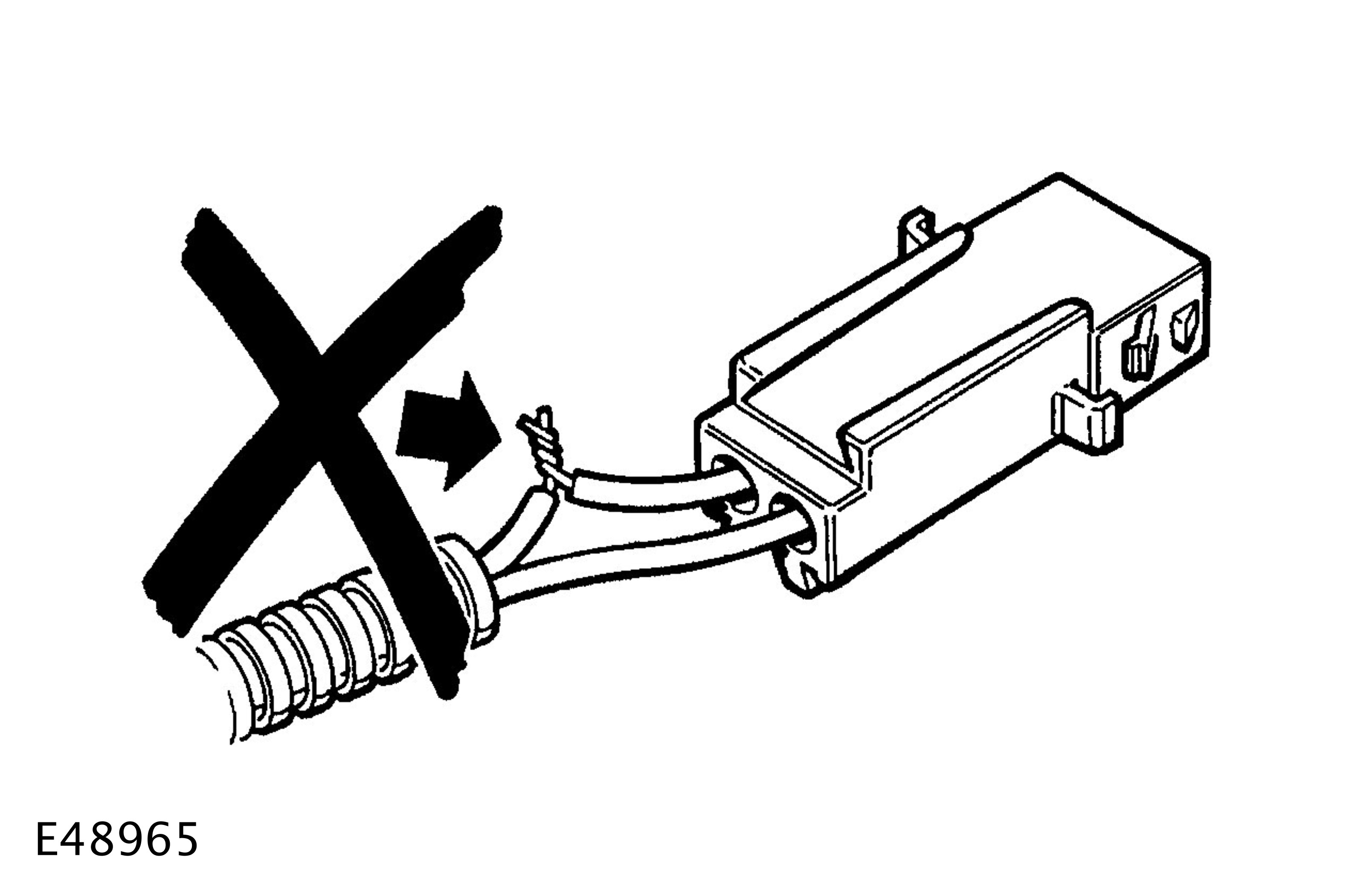

• Never force connectors apart or pull on the wiring harness.

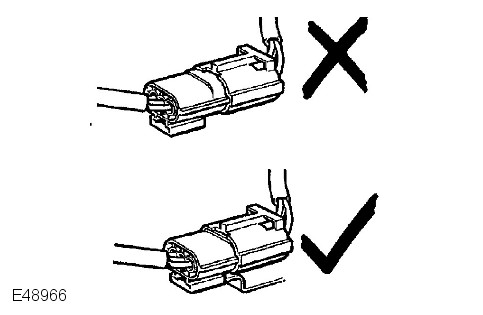

• Always make sure locking tabs are disengaged before disconnecting multiplugs etc. and make sure that correct orientation is achieved before connection.

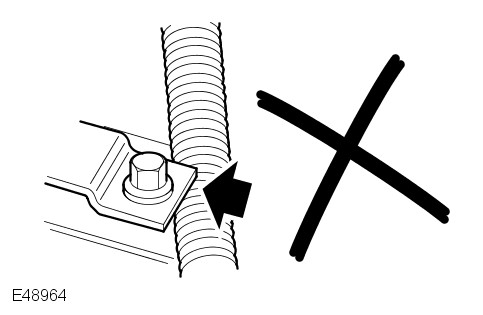

• Make sure that any protection covers, insulation etc. are replaced if disturbed.

Having confirmed that a component is faulty, carry out the following:

• Switch off the ignition and disconnect the battery.
• Remove the component and support the disconnected harness.
• When replacing electrical components, keep oily hands away from electrical connections and make sure that locking tabs on connectors are fully engaged.

Battery Disconnection/Connection

Always refer to the Electrical Section of this manual - Battery Connection/Disconnection prior to attempting to connect or disconnect the battery. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).

The following information lists basic precautions which must be observed if fuel is to be handled safely. It also outlines other areas of risk which must not be ignored. As this information is issued for basic guidance only, consult your local Fire Department where any doubt as to personal and environmental safety exists - See also Health and Safety Precautions.

Always have the correct type of fire extinguisher containing Foam, CO2, Gas or powder accessible when handling or draining fuel or dismantling fuel systems. Fire extinguishers must also be located in areas where fuel is stored.

Make sure that suitable warning signs are exhibited.

Keep all sources of ignition well away from areas where fuel is being handled.

Make sure that any leadlamps are flameproof and kept clear of spillage.

Always disconnect the vehicle battery before carrying out disassembly, reassembly or draining work on a fuel system.

Draining must be carried out in accordance with the procedures given in the relevant Fuel System section of this manual.

Always release pipe clips fully before attempting to disconnect fuel pipes.

Fuel tank repairs

Never use a seal which has been improperly stored or handled.

• Take great care when removing old seals that the sealing surfaces and seal housing are not damaged.
• Carefully examine seal before installing to make sure that it is clean and undamaged.
• Make sure that the surface on which the seal is to run and also the seal housing is clean and free from burrs or scratches. Renew the component if the sealing surface cannot be restored.

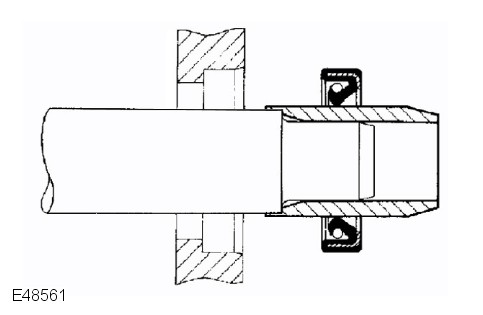

• Special tools and protection sleeves are provided for installing the majority of seals and must be used when specified.
• Many seals are now coated with a protective wax and DO NOT need to be lubricated prior to installing. Always check the relevant repair procedure which will state if a seal must be installed dry. Never touch these seals with oily hands as the oil will contaminate the protective coating and affect the sealing properties of the seal; also, make sure that installing tools and protection sleeves are free from oil and grease. Seals which must be lubricated prior to installing should have the recommended lubricant applied to the areas specified in the repair procedure.
• Make sure that a seal is installed the correct way round. For example, the lip of the seal must face towards the lubricant which it is sealing.

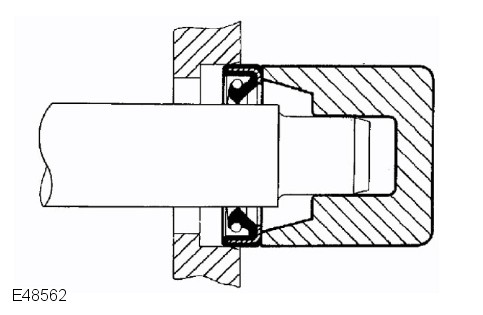

• When installing an oil seal, make sure that it is positioned square to shaft and housing. Where the seal is to be installed to a housing prior to installing over a shaft, take care not to allow the weight of an unsupported shaft to rest on the seal.

• Always use the recommended special tool and protection sleeve to install an oil seal. If no tool is specified, use a suitable mandrel approximately 0.4 mm (0.015 in) smaller than the outside diameter of the seal. Use adhesive tape on the shaft to protect the sealing lip of the seal.

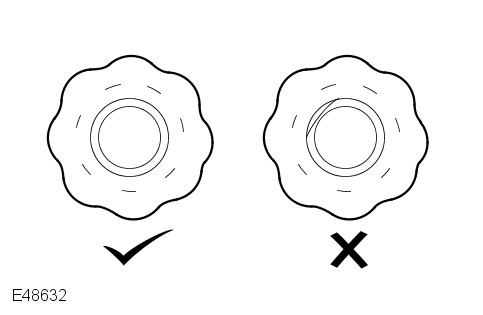

• Press or drift the seal in to the depth of its housing if the housing is shouldered or flush with the face of the housing where no shoulder is provided. Make sure that the seal is not tilted in the housing when it is installed.

The SRS contains components which are potentially hazardous to service personnel if not handled correctly. The following guidelines and precautions are intended to alert personnel to potential sources of danger and emphasise the importance of ensuring the integrity of the SRS components installed to the vehicle.

• The correct procedures must always be used when working on SRS components.
• Persons working on the SRS system must be fully trained and have been issued with the safety guidelines.
• The airbag modules contain extremely flammable and hazardous compounds. Contact with water, acids or heavy metals may produce harmful or explosive results. Do not dismantle, incinerate or bring into contact with electricity before the unit has been deployed.
• Always replace a seat belt assembly that has withstood the strain of a severe vehicle impact or if the webbing shows signs of fraying.
• Always disconnect the vehicle battery before carrying out any electric welding on a vehicle installed with an SRS system.

It should be noted that these precautions are not restricted to operations performed when servicing the SRS system. The same care should be exercised when working on ancillary systems and components located in the vicinity of SRS components; these include but are not limited to:

• Steering wheel airbag, rotary coupler.
• Passenger front airbag.
• Head airbag modules - front and rear.
• Seat belt pre-tensioners.
• SRS harnesses, link leads and connectors.
• Side (thorax) air bags.

Before working on or in the vicinity of SRS components, make sure the system is rendered safe by performing the following operations:

• Remove the ignition key.
• Disconnect battery, earth lead first.
• Wait 2 minutes for the SRS power circuit to discharge before commencing work.

In order to make sure system integrity, it is essential that the SRS system is regularly checked and maintained so that it is ready for effective operation in the event of a collision. Carefully inspect SRS components before installation. Do not install a part that shows signs of being dropped or improperly handled, such as dents, cracks or deformation.

• Do not install accessories or other objects to trim panels which cover ITS airbags.
• Never install used SRS components from another vehicle or attempt to repair an SRS component.
• When repairing an SRS system, only use genuine new parts.
• Never apply electrical power to an SRS component unless instructed to do so as part of an approved test procedure.
• Special fixings are necessary for installing an airbag module – do not use other fixings and make sure that all fixings are tightened to the correct torque.
• Always use new fixings when replacing an SRS component.

The SRS components are triggered using relatively low operating currents, always adhere to the following :

Always observe the following precautions when handling SRS components:

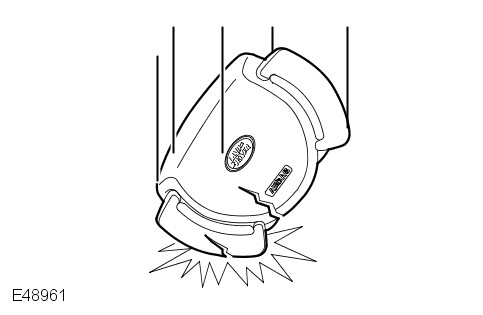

• Never drop an SRS component. The airbag diagnostic control unit is a particularly shock sensitive device and must be handled with extreme care. Airbag modules and seat belt pre-tensioners could deploy if subjected to a strong shock.
• Never wrap your arms around an airbag module. If a module has to be carried, hold it by the cover with the cover uppermost and the base away from your body.
• Never transport airbag modules or seat belt pre-tensioners in the passenger compartment of a vehicle. Always use the luggage compartment of the vehicle for carrying airbag modules and seat belt pre-tensioner units.
• Never attach anything to an airbag cover or any trim component covering an airbag module. Do not allow anything to rest on top of an airbag module.
• Always keep components cool, dry and free from contamination.
• Never apply grease or cleaning solvents to seat belt pre-tensioner units, component failure could result.
• Always store an airbag module with the deployment side uppermost. If it is stored deployment side down, accidental deployment will propel the airbag module with sufficient force to cause serious injury.
• Keep new airbag modules in their original packaging until just prior to installing. Place the old module in the empty packaging for carriage.

Always observe the following precautions with regards to SRS system electrical wiring:

• Never attempt to modify, splice or repair SRS wiring.
• Never install electrical equipment such as a mobile telephone, two-way radio or in-car entertainment system in such a way that it could generate electrical interference in the airbag harness. Seek specialist advice when installing such equipment.

After any degree of side body damage, inspect the side impact crash sensors. Replace a crash sensor if there is any sign of damage.

• Do not unlock and rotate the rotary coupler when it is removed from the vehicle.
• Do not turn the road wheels when the rotary coupler is removed from the vehicle.
• Always make sure the rotary coupler is removed and installed in its central position and with the front road wheels in the straight ahead position - refer to SRS repair section for the correct removal and installation procedure.
• If a new rotary coupler is being installed, make sure the locking tab holding the coupler's rotational position is not broken; units with a broken locking tab must not be used.

Deployment procedures and precautions as detailed in this manual should be strictly adhered to. Only personnel who have undergone the appropriate training should undertake deployment of airbag and pre-tensioner modules. The following precautions must be complied with:

• Only use deployment equipment approved for the intended purpose.
• Deployment of airbag / pre-tensioner modules must be performed in a well ventilated area which has been designated for the purpose.
• Make sure airbag / pre-tensioner modules are not damaged or ruptured before attempting to deploy.
• Where local legislation exists, notify the relevant authorities of intention to deploy airbag and pretensioner units.
• When deploying airbag pre-tensioner units, make sure that all personnel are at least 15 metres (45 feet) away from the deployment zone.
• Make sure deployment tool is connected correctly, in compliance with the instructions detailed in the SRS section of this manual. In particular, make sure deployment tool is NOT connected to battery supply before connecting to airbag module connector.
• When deploying seat belt pre-tensioners, make sure pre-tensioner unit is secured correctly to the seat.
• When removing deployed airbag modules and pre-tensioner units, wear protective clothing. Use gloves and seal deployed units in a plastic bag.
• Following deployment of any component of the SRS system within the vehicle, all SRS components must be replaced. DO NOT reuse or salvage any parts of the SRS system.

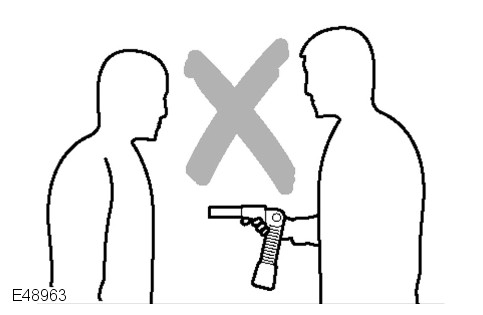

• Do not lean over an airbag module when connecting deployment equipment.

If a vehicle is to be scrapped, undeployed airbag modules and pre-tensioner units must be manually deployed. In this case airbags can be deployed in the vehicle. Before deployment, make sure the airbag module is secure within its correct mounting position. Deployment of the driver's airbag in the vehicle may damage the steering wheel; if the vehicle is not being scrapped, deploy the module outside of the vehicle.

The following information details the policy for replacement of SRS components as a result of a vehicle accident.

Impacts which do not deploy the airbags or pre-tensioners

Check for structural damage in the area of the impact paying particular attention to bumper armatures, longitudinals and bracketry.

Impacts which deploy the airbags or pre-tensioners

The replacement and inspection policy is dependent on the type and severity of the crash condition. The following guidelines are the minimum that should be exercised as a result of the deployment of specific SRS components.

Check for structural damage in the area of impact paying particular attention to bumper armatures, longitudinals and bracketry.

• Driver airbag module
• Passenger airbag module
• Fly leads (where applicable) connecting front airbag modules to SRS harness
• Front seat belt buckle pre-tensioner
• Rear seat belt pre-tensioners - if installed
• Driver's seat belt retractor - if installed
• Rotary coupler
• Any front impact sensors that have been physically damaged or if a fault is being registered
• Restraints control module (RCM) if the three crashes/impacts have been stored

Additionally, the following items must be inspected for damage and replaced as necessary:

• Front passenger's seat belt retractor and webbing, tongue latching function, 'D' loop and body anchorage point
• Rear seat belt buckles, webbing, buckle covers, body anchorage points and tongue latching function
• Fascia moulding adjacent to passenger airbag module
• Steering wheel
• Front seat frames and head restraints
• Steering column - if adjustment is lost or if there are signs of collapse
• Seat belt height adjusters
• Rear seat belts

• Side (thorax) airbag
• Any side impact sensors that have been physically damaged or if a fault is being registered
• Restraints Control Module (RCM) if the three crashes/impacts have been stored

Additionally, the following items must be inspected for damage and replaced as necessary:

• Front seat belts, retractors and webbing, tongue latching function, 'D' loop and body anchorage points
• Rear seat belt buckles, webbing, buckle covers, tongue latching function, and body anchorage points
• Front seat frame and head restraints
• Door trim casing
• Seat belt height adjusters
• Rear seat belts

• Head airbag modules
• Link lead between airbag gas generator and restraints control module (RCM) harness
• Airbag retaining clips
• Internal trim finisher
• Front seat belt buckle pre-tensioners
• Any side impact sensors that have been physically damaged or if a fault is being registered
• Restraints Control Module (RCM) if the three crashes/impacts have been stored

Additionally, the following items must be inspected for damage and replaced as necessary:

• Headlining
• Component mounting brackets
• Front seat belts, retractors and webbing, tongue latching function, 'D' loop and body anchorage points
• Rear seat belt buckles, webbing, buckle covers, tongue latching function, and body anchorage points
• Adjacent trim components
• Seat belt height adjusters

• Seat belt pre-tensioners
• Front and rear seat belt retractors used during the impact
• Restraints Control Module (RCM) if the three crashes/impacts have been stored

Additionally, the following items must be inspected for damage and replaced as necessary:

• Seat belt height adjusters
• Front seat belts, retractors and webbing, tongue latching function, 'D' loop and body anchorage points
• Rear seat belt buckles, webbing, buckle covers, tongue latching function, and body anchorage points

The air conditioning system contains fluids and components which could be potentially hazardous to the service engineer or the environment if not serviced and handled correctly. The following guidelines are intended to alert the service engineer to potential sources of danger and emphasise the importance of ensuring the integrity of the Air Conditioning operating conditions and components installed to the vehicle.

Where necessary, additional specific precautions are detailed in the relevant sections of this Manual and also in the Health and Safety Section. These precautions must be referred to prior to commencing repair operations.

The refrigerant used in the air conditioning system is HFC-134a (Hydrofluorocarbon) R134a.

If an accident involving R134a should occur, conduct the following remedial actions:

• If liquid R134a enters the eye, do not rub it. Gently run large quantities of eye wash over affected eye to raise the temperature. If an eye wash is not available, cool, clean water may be used to flush the eye. After rinsing, cover the eye with a clean pad and seek immediate medical attention.
• If liquid R134a is splashed onto the skin, run large quantities of water over the affected area to raise the temperature. Implement the same action if the skin comes in contact with discharging cylinders. Wrap the contaminated body parts in blankets (or similar materials) and seek immediate medical attention.
• If the debilitating effects of inhalation of R134a vapour are suspected, seek fresh air. If the affected person is unconscious, move them away from the contaminated area to fresh air and apply artificial respiration and/or oxygen and seek immediate medical attention.

Observe the following precautions when handling components used in the air conditioning system:

• Air conditioning units must not be lifted by their hoses, pipes or capillary lines.
• Hoses and lines must not be subjected to any twist or stress; the efficiency of the system will be impaired by kinks or restrictions. Make sure that hoses are correctly positioned before tightening couplings, and make sure that all clips and supports are utilised.
• Flexible hoses should not be positioned closer than 100 mm (4.0 in) to the exhaust manifold unless protected by heat shielding.
• Completed assemblies must be checked for refrigeration lines touching metal panels. Any direct contact of components and panels may transmit noise and so must be eliminated.
• The appropriate torque wrench must be used when tightening refrigerant connections to the stipulated value. An additional spanner must be used to hold the union to prevent twisting of the pipe when tightening connections.
• Before connecting any hose or pipe, make sure that refrigerant oil is applied to the seat of the new O-rings, BUT NOT to the threads of the connection.
• All protective plugs or caps must remain in place in the component until immediately prior to connection.
• Make sure components are at room temperature before uncapping/unplugging, to prevent condensation of moisture from the air that enters it.
• When disconnecting, immediately plug or cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.
• Components must not remain uncapped/unplugged, if a system has been left uncapped/unplugged for 20 minutes or longer, a new receiver/drier must be installed.
• The receiver/drier contains desiccant which absorbs moisture. It must be positively sealed at all times. A receiver/drier that has been left uncapped for longer than 20 minutes must not be used; install a new unit.
• The receiver/drier should be the last component connected to the system to make sure optimum dehydration and maximum moisture protection of the system.
• Use alcohol and a clean lint-free cloth to clean dirty connections.
• Make sure that all new parts installed are marked for use with R134a.
• When a major repair has been completed, a leak test should be conducted; refer to the Repairs Section of this manual for the correct procedure.

When replacing components in the air conditioning system, drain the refrigerant oil from the component being replaced into a graduated container. On assembly, add the quantity of refrigerant oil drained to the new component - See Air Conditioning Compressor Replacement in this Section.

A new compressor is sealed and pressurised with Nitrogen gas. When installing a new compressor, slowly release the sealing cap; gas pressure should be heard to vent as the seal is broken.

If the air conditioning system is involved in accident damage and the system is punctured, the refrigerant will discharge rapidly. The rapid discharge of refrigerant will also result in the loss of most of the oil from the system. The compressor must be removed and all the remaining oil in the compressor drained and refilled as instructed in the air conditioning section of this manual.

When the air conditioning system is recharged, any existing refrigerant is first recovered from the system and recycled. The system is then charged with the required weight of refrigerant and volume of refrigerant oil.

A new compressor is supplied filled with a full charge (X cm³) of refrigerant oil.

A calculated quantity of oil must be drained from the new compressor before installing. To calculate the quantity of oil to be drained:

• Remove the drain plug from the old compressor.
• Invert the compressor and gravity drain the oil into a calibrated measuring cylinder. Rotate the compressor clutch to make sure the compressor is completely drained.
• Note the quantity of oil drained (Y cm³).
• Calculate the quantity of oil to be drained from the new compressor using the following formula:X cm³ — (Y cm³ + 20 cm³) = Q cm³
• Remove the drain plug from the new compressor and drain Q cm3 of oil. install and tighten the compressor drain plug.

Vehicle Dimensions
