Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-05

Interior Trim and Ornamentation

C-Pillar Upper Trim Panel (G421013)

REMOVAL AND INSTALLATION
  • 76.13.35
  • C-Pillar Trim Panel - Upper - Renew
  • All Derivatives
  • 0.10
  • USED WITHINS
Removal

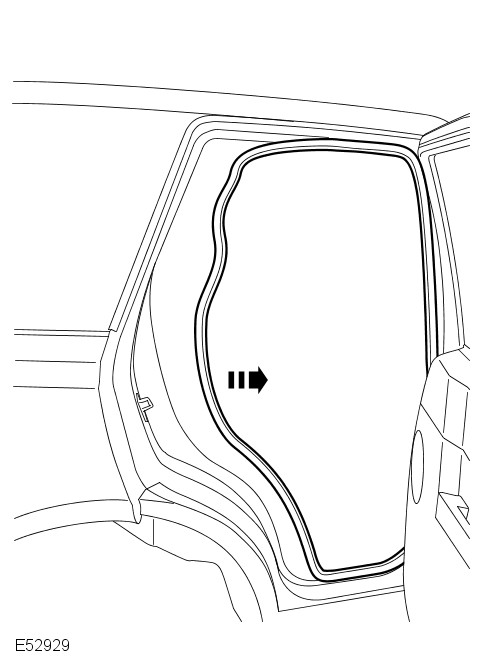

  1. E52929
    Release the door aperture weatherstrip.
  2. Release the font edge of the lower quarter trim panel.
  3. Release the upper trim access cover.
  4. NOTE:

    Do not disassemble further if the component is removed for access only.

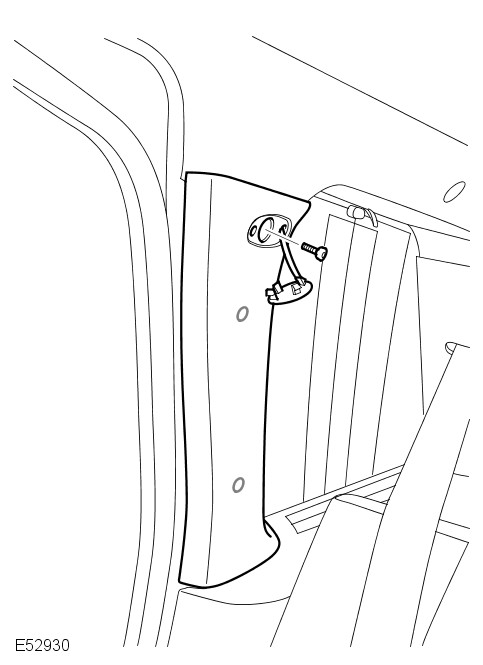

    E52930
    Remove the C-pillar upper trim panel.
      • Remove the Torx screw.
      • Release the 2 clips.

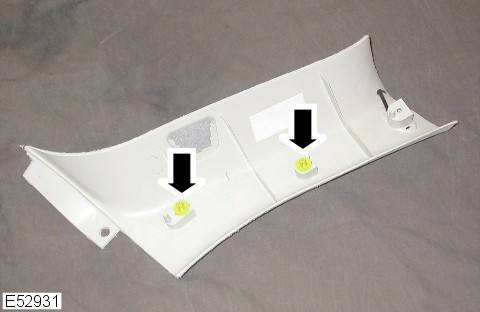

  5. E52931
    Remove the 2 C-pillar retaining clips.
Installation
  1. Install the clips to the C-pillar upper trim panel.
  2. Install the C-pillar upper trim panel.
      • Attach the safety belt.
      • Secure with the clips.
      • Tighten the Torx screw to 6 Nm (4 lb.ft).
  3. Install the lower quarter trim panel
      • Carefully secure the clips.
  4. Install the upper trim access cover.
  5. Install the door aperture weatherstrip.
