2007.0 Range Rover Sport (LS), 501-17

Roof Opening Panel

Roof Opening Panel Motor (G497974)

REMOVAL AND INSTALLATION
  • 76.84.07
  • Motor - sun/sliding roof - front - renew
  • All Derivatives
  • 0.30
  • USED WITHINS
Removal
WARNING:

If the roof opening panel motor is being replaced, the one touch and anti-trap function will become inoperative. Close the roof opening panel and continue to hold the switch for a further 20 seconds to allow the sunroof to complete a full cycle. This will complete the roof opening panel calibration routine and reset these functions.

  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

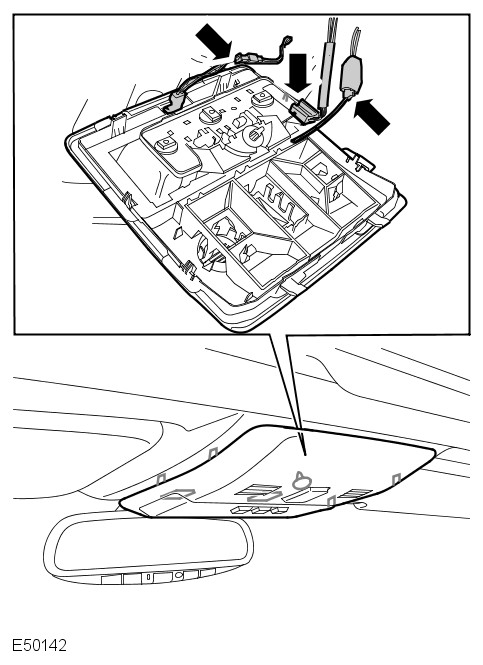

  2. E50142
    Remove the front overhead console.
      • Carefully release the clips.
      • Disconnect the 4 electrical connectors.

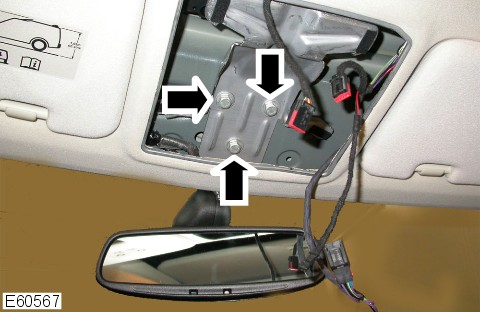

  3. E60567
    Remove the overhead console support bracket.
      • Remove the 3 bolts.

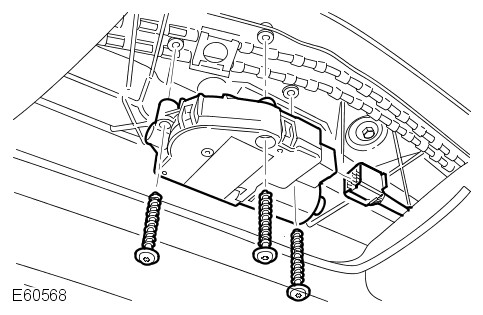

  4. E60568
    Remove the roof opening panel motor.
      • Remove the 3 Torx screws.
      • Disconnect the electrical connector.
Installation
  1. Install the motor.
      • Connect and secure the electrical connector.
      • Tighten the Torx screws to 4 Nm (3 lb.ft).
  2. Install the support bracket.
      • Tighten the bolts to 25 Nm (18 lb.ft).
  3. Install the front overhead console.
      • Connect the electrical connector.
      • Carefully secure the clips.
  4. Connect the battery ground cable. For additional information, refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).
