Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-17

Roof Opening Panel

Roof Opening Panel Weatherstrip (G1392663)

REMOVAL AND INSTALLATION
Removal
  1. NOTE:

    Note the orientation of the roof opening panel weatherstrip to install the component correctly.

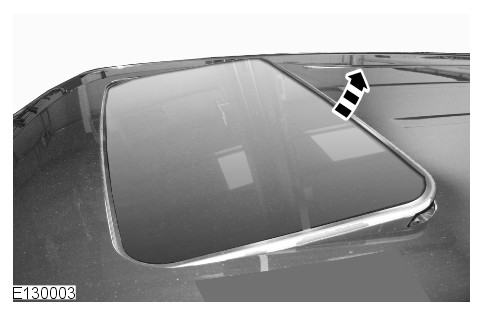

    E130003
    Raise the roof opening panel as illustrated.

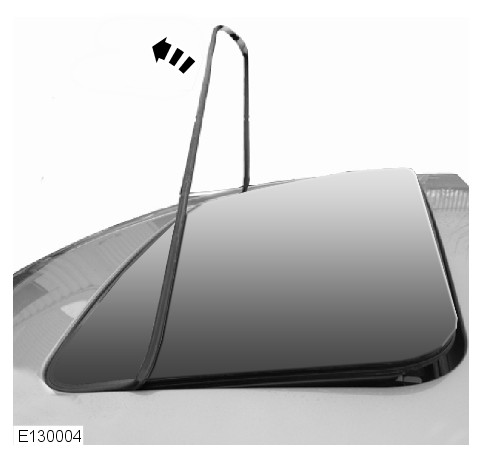

  2. E130004
    Release the roof opening panel weatherstrip from the rear of the panel.

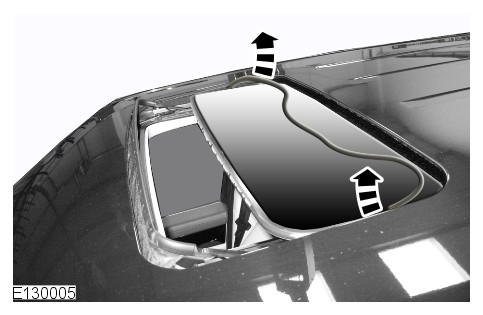

  3. E130005
    Operate the roof opening panel to the position illustrated, and remove the roof opening panel weatherstrip from the front of the panel.
Installation

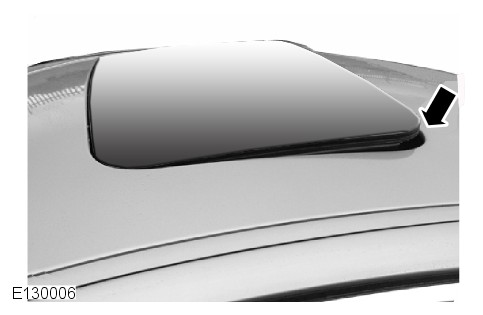

  1. E130006
    Operate the roof opening panel to the position illustrated.
  2. NOTE:

    Make sure that the roof opening panel weatherstrip is installed in the orientation noted on the removal process.

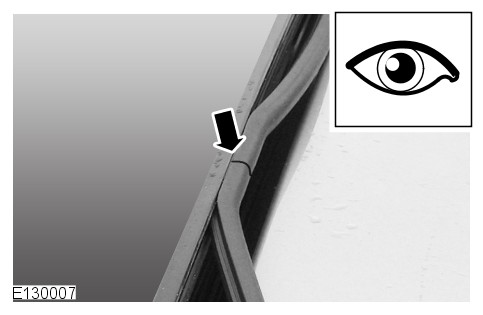

    E130007
    Install the roof opening panel weatherstrip to the center of the panel, as indicated.
  3. NOTE:

    To aid installation of the roof opening panel weatherstrip correctly, use a suitable plastic wedge between the roof opening panel apature and the seal.

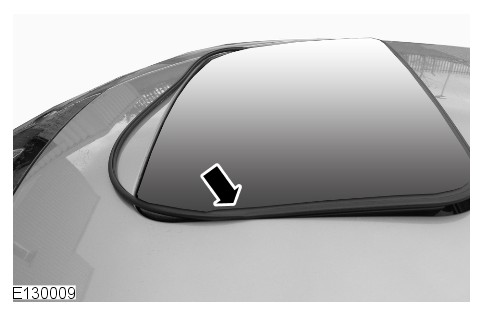

    E130009
    Install the roof opening panel weatherstrip into the locating grove in the panel as far as possible.

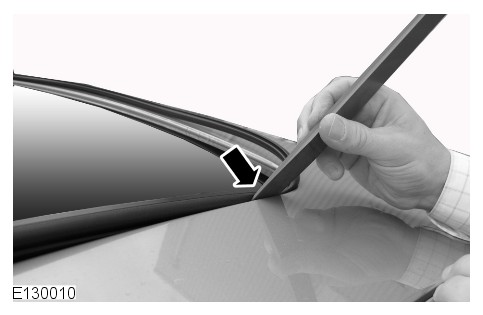

  4. E130010
    Using a suitable plastic tool, install the roof opening panel weatherstrip to the corners of the panel.
  5. NOTE:

    Make sure that the roof opening panel wind deflector is in the fully open position.

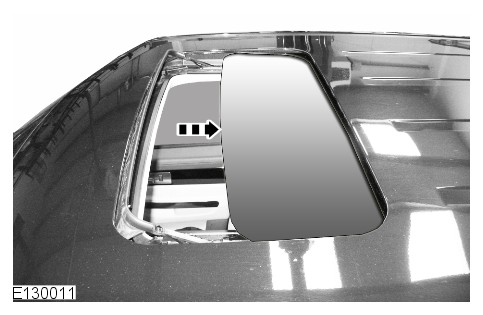

    E130011
    Operate the roof opening panel to the position illustrated.
  6. NOTE:

    Make sure that the excessive amount of weatherstrip is positioned evenly alone the front of the roof opening panel.

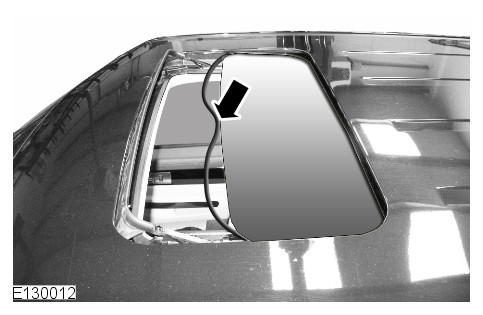

    E130012
    Install the roof opening panel weatherstrip to the center of the panel, as indicated.

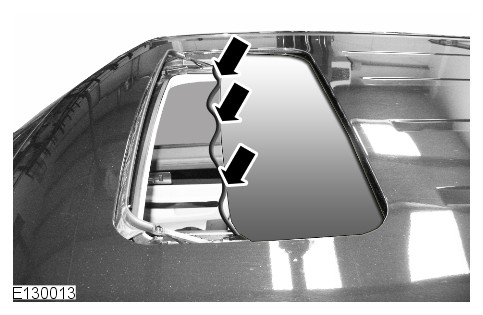

  7. E130013
    Install the roof opening panel weatherstrip evenly to the panel.

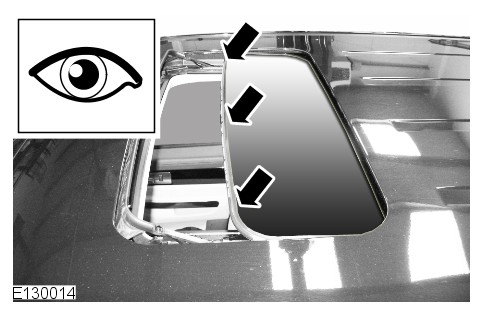

  8. E130014
    Check that the roof opening panel weatherstrip is correctly installed to the panel and no gaps are visible between the weatherstrip and panel.
  9. Operate the roof opening panel to the closed position.
  10. E130015
    Visually inspect the roof opening panel weatherstrip for correct alignment and installation.
