Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-30

Rear End Sheet Metal Repairs

Rear Floor Panel Section (G457321)

REMOVAL AND INSTALLATION
Removal
NOTE:

In this procedure, the floor panel section is replaced in conjunction with the back panel.

  1. Disconnect both battery cables. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the back panel. For additional information, refer to: Back Panel (501-30 Rear End Sheet Metal Repairs, Removal and Installation).

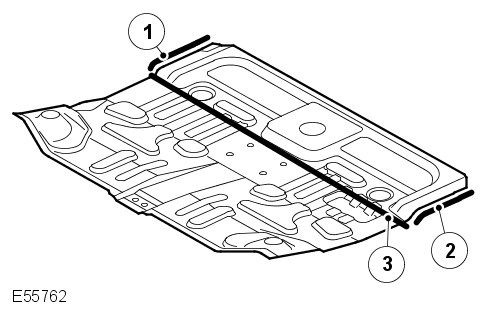

  3. E55762

    ItemDescription
    1Mig-weld.
    2Mig-weld.
    3Mig-weld and 18 plug welds.
  4. For additional information:
      • Welding. For additional information, refer to: Body Repairs (501-25A Body Repairs - General Information -, Description and Operation).
      • Corrosion protection. For additional information, refer to: Corrosion Protection (501-25B Body Repairs - Corrosion Protection -, Description and Operation).
      • Tolerance checks. For additional information, refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
Installation
  1. Install is the reversal of removal.
