2007.0 Range Rover Sport (LS), 501-12

Instrument Panel and Console

Instrument Panel Driver Side Reinforcement (G414337)

REMOVAL AND INSTALLATION
  • 76.46.31
  • Panel - instrument - driver's side section - renew
  • All Derivatives
  • 2.80
  • USED WITHINS
Removal
  1. Fully extend the steering column for access.
  2. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  3. Remove the steering wheel. For additional information, refer to: Steering Wheel (211-04 Steering Column and Steering Wheel, Removal and Installation).
  4. Remove the instrument panel center reinforcement. For additional information, refer to: Instrument Panel Center Reinforcement (501-12 Instrument Panel and Console, Removal and Installation).
  5. Remove the headlamp switch trim panel. For additional information, refer to: Headlamp Switch (417-01 Exterior Lighting, Removal and Installation).
  6. E47923
    Remove the driver side closing trim panel.
      • Release the clip.
      • Remove the 2 screws.
      • Disconnect the electrical connector.
  7. E51369
    Remove the instrument panel access panel.
      • Release the 2 clips.
  8. E46958
    Remove the steering column upper shroud.
      • Release the 6 clips.
  9. E50852
    Remove the steering column lower shroud.
      • Remove the 3 Torx screws.
      • Disconnect the electrical connector.
  10. E51370
    Remove the steering column side trim panel.
      • Release the 4 clips.
  11. E47072
    Disconnect the 2 electrical connectors from the steering column multifunction switches.
  12. E47073
    Disconnect the 2 electrical connectors from the clockspring.
  13. E47080
    Remove the steering column switch assembly.
      • Remove the 4 Torx bolts.
  14. E47118
    Remove the steering column gaiter panel.
      • Remove the 2 Torx screws.
      • Release the 2 clips.
  15. E47119
    Remove the instrument cluster.
      • Remove the 2 Torx screws.
      • Disconnect the electrical connector.

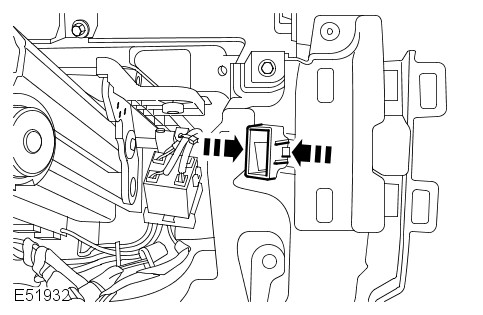

  16. E51932
    Release the air temperature sensor.
      • Release the 2 clips.

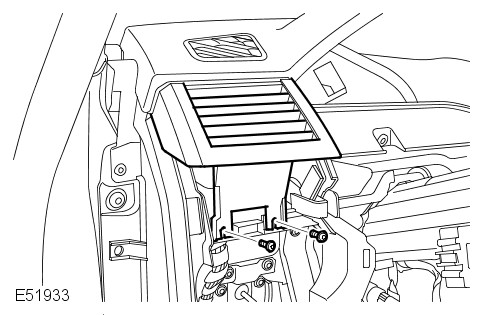

  17. E51933
    Remove the driver side face level vent.
      • Remove the 2 Torx screws.
  18. Release the on-board diagnostic connector.
      • Remove the 2 Torx screws.

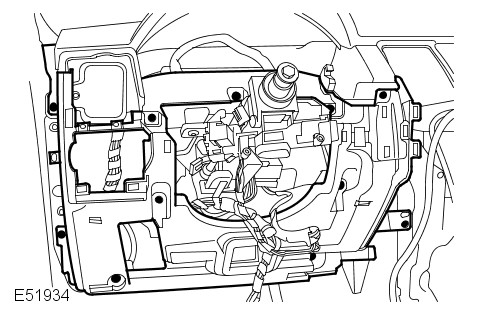

  19. E51934
    Remove the instrument panel driver side reinforcement.
      • Remove the 11 Torx screws.
Installation
  1. Install the instrument panel driver side reinforcement.
      • Tighten the Torx screws.
  2. Attach the on-board diagnostic connector.
      • Tighten the Torx screws.
  3. Install the face level vent.
      • Tighten the Torx screws.
  4. Attach the air temperature sensor.
      • Secure the clips.
  5. Install the instrument cluster.
      • Connect the electrical connector.
      • Tighten the Torx screws.
  6. Install the steering column gaiter panel.
      • Secure with the clips.
      • Tighten the Torx screws.
  7. Install the steering column switch assembly.
      • Tighten the Torx bolts to 3 Nm (2 lb.ft).
  8. Connect the clockspring and multifunction switch electrical connectors.
  9. Install the steering column side trim panel.
      • Secure with the clips.
  10. Install the steering column shrouds.
      • Connect the electrical connector.
      • Tighten the Torx screws.
      • Secure the clips.
  11. Install the instrument panel access panel.
      • Secure with the clips.
  12. Install the driver side closing trim panel.
      • Connect the electrical connector.
      • Secure the clip.
      • Tighten the screws.
  13. Install the headlamp switch trim panel. For additional information, refer to: Headlamp Switch (417-01 Exterior Lighting, Removal and Installation).
  14. Install the instrument panel center reinforcement. For additional information, refer to: Instrument Panel Center Reinforcement (501-12 Instrument Panel and Console, Removal and Installation).
  15. Install the steering wheel. For additional information, refer to: Steering Wheel (211-04 Steering Column and Steering Wheel, Removal and Installation).
  16. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
