Published: 11-May-2011

2007.0 Range Rover Sport (LS), 417-01

Exterior Lighting

Headlamp Switch (G410830)

REMOVAL AND INSTALLATION
  • 86.65.09
  • Master Lighting Switch - Renew
  • All Derivatives
  • 0.10
  • USED WITHINS
  • 86.65.55
  • Switch - Combined Direction Indicator and Headlamp - Renew
  • All Derivatives
  • 0.20
  • USED WITHINS
Removal

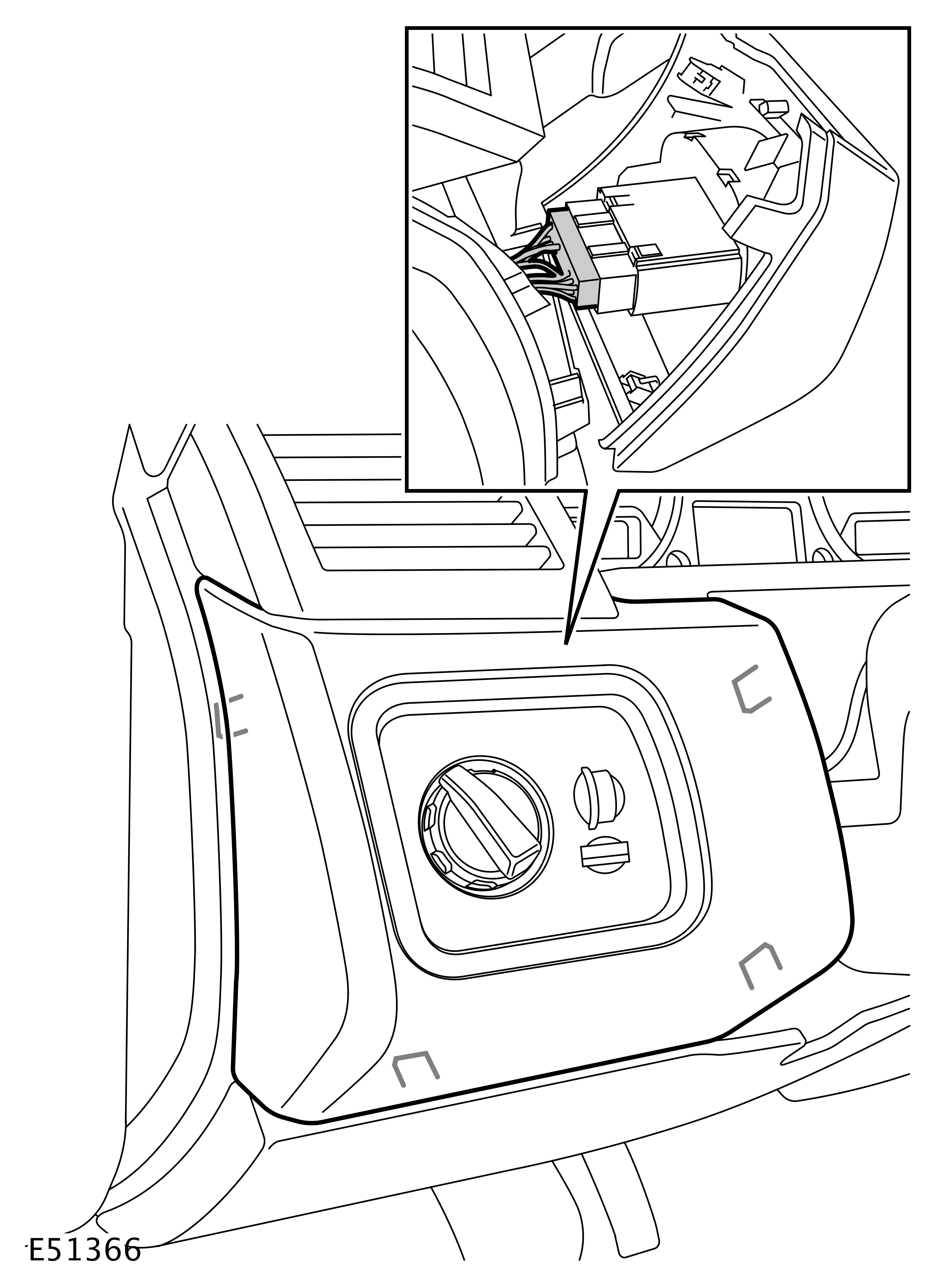

  1. E51366
    Remove the headlamp switch trim panel.
      • Release the 4 clips.
      • Disconnect the electrical connector.

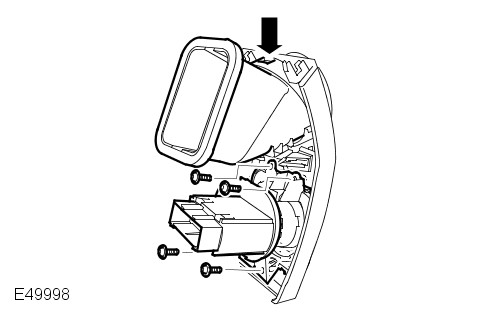

  2. E49998
    Remove the headlamp switch.
      • Remove the 4 Torx screws.
Installation
  1. Install the headlamp switch.
      • Tighten the Torx screws.
  2. Install the headlamp switch trim panel.
      • Connect the electrical connector.
      • Secure with the clips.
