Published: 11-May-2011

2007.0 Range Rover Sport (LS), 211-04

Steering Column and Steering Wheel

Steering Wheel (G529329)

REMOVAL AND INSTALLATION
Removal
  1. Remove the driver air bag module. For additional information, refer to: Driver Air Bag Module (501-20 Supplemental Restraint System, Removal and Installation).
  2. CAUTION:

    If the steering wheel timing marks were not aligned prior to the steering wheel being removed, they must be aligned on assembly and the steering angle sensor must be calibrated using the approved Land Rover diagnostic equipment and a four wheel alignment check must also be carried out. Failure to follow this instruction may result in damage to the vehicle.

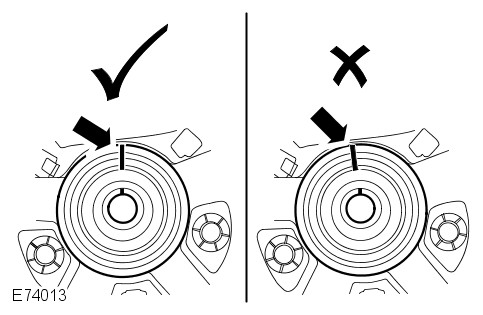

    E74013
    Check that the steering wheel is correctly aligned prior to the steering wheel being removed.
  3. CAUTION:

    Make sure the wheels are in the straight-ahead position. Failure to follow this instruction may result in damage to the components.

    NOTE:

    Note the steering wheel to column alignment marks.

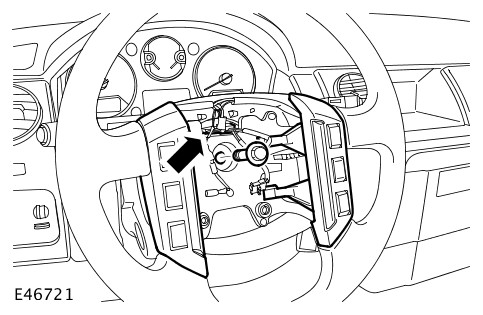

    E46721
    Remove the steering wheel.
      • Restrain the steering wheel and remove the bolt.
      • Disconnect the steering wheel switch electrical connector.
  4. NOTE:

    Do not disassemble further if the component is removed for access only.

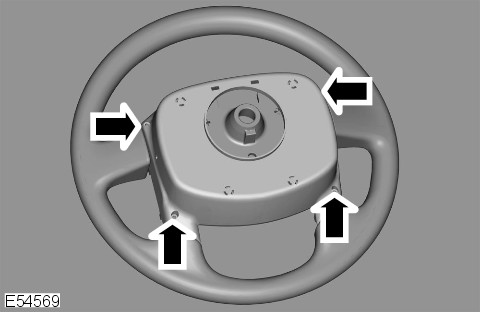

    E54569
    Remove the steering wheel switch.
      • Remove the 2 Torx screws.
      • Disconnect the electrical connector.
      • Repeat the above procedure for the other side.

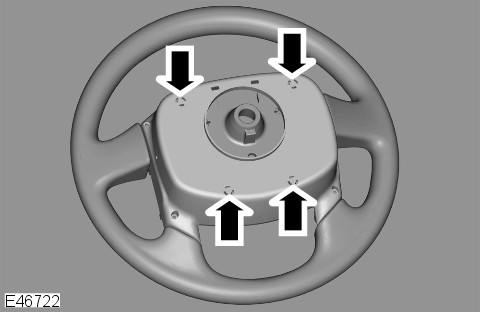

  5. E46722
    Remove the steering wheel cover.
      • Release the 4 clips.
  6. Remove the wiring harness.
Installation
  1. Attach the wiring harness.
  2. Install the steering wheel cover.
      • Secure with the clips.
  3. Install the steering wheel switch.
      • Connect the electrical connector.
      • Tighten the Torx screws.
      • Repeat the above procedure for the other side.
  4. CAUTION:

    If the steering wheel timing marks were not aligned prior to the steering wheel being removed, they must be aligned on assembly and the steering angle sensor must be calibrated using the approved Land Rover diagnostic equipment and a four wheel alignment check must also be carried out. Failure to follow this instruction may result in damage to the vehicle.

    E74013
    Correctly align the steering wheel to the steering column.
  5. CAUTION:

    Correct clockspring alignment can be found by viewing a yellow marker through the window situated on the clockspring face. If the marker is not visible, carefully turn the clockspring. If the turning force increases before the marker is visible, reverse the direction to avoid component damage.

    Carefully install the steering wheel, engage the clockspring and align to the column.
      • Tighten the bolt to 63 Nm (46 lb.ft).
  6. Install the driver air bag module. For additional information, refer to: Driver Air Bag Module (501-20 Supplemental Restraint System, Removal and Installation).
