2007.0 Range Rover Sport (LS), 204-06

Ride and Handling Optimization

Valve Block to Front Stabilizer Bar Actuator Pipe Assembly - TDV8 3.6L Diesel (G949373)

REMOVAL AND INSTALLATION
  • 60.60.31
  • Pipe assembly - valve block to front actuator - renew
  • TDV8
  • 4.30
  • USED WITHINS

Special Tool(s)

E45276

205-754(LRT-54-027)

Ball joint separator

Removal
CAUTION:

Dynamic Response system components are manufactured to very precise tolerances. It is therefore essential that absolute cleanliness is observed when working with these components. Always install blanking plugs to any open orifices or lines. Failure to follow this instruction may result in foreign matter ingress to the dynamic response system.

  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  3. Remove the rear bumper cover. For additional information, refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).
  4. Remove the engine undershield. For additional information, refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).
  5. CAUTIONS:

    • Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.

    • Make sure the actuator fluid lines are not damaged or kinked during removal or installation.

    NOTE:

    Some fluid spillage is inevitable during this operation.

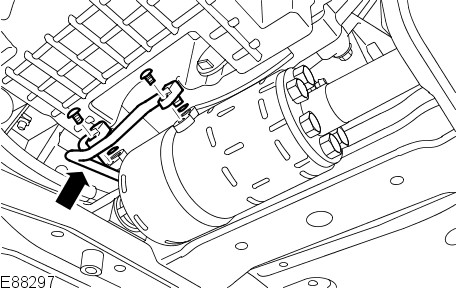

    E88297
    Disconnect and reposition the fluid lines.
      • Position container to collect fluid loss.
      • Remove the fluid line bracket bolt.
      • Remove the 2 bolts.
      • Remove and discard the 2 O-ring seals.
      • Remove and discard the plastic spacer washers.
  6. Remove the front wheels and tires.
  7. RH front: Remove the shock absorber and air spring assembly. For additional information, refer to: Front Shock Absorber and Air Spring Assembly (204-05, Removal and Installation).
  8. E44467
    Release the brake hose bracket from the wheel knuckle.
      • Remove the bolt.
  9. CAUTION:

    Do not allow the brake caliper to hang on the brake hose.

    E57830
    Release the brake caliper from the wheel knuckle.
      • Remove the 2 bolts.
      • Tie the brake caliper aside.
  10. NOTE:

    The brake disc is shown removed for clarity.

    E44666
    Release the wheel speed sensor from the wheel knuckle.
      • Remove the bolt.
  11. CAUTIONS:

    • Note the position of the hardened steel washer. The hardened steel washer must be installed between the stabilizer bar link and the upper arm. Failure to follow this instruction may result in damage to the vehicle.

    • Use a Torx socket to prevent the ball joint rotating whilst removing the nut.

    Release the stabilizer bar link.
      • Remove and discard the nut.
  12. CAUTION:

    To prevent the wheel knuckle falling outwards and disconnection of the halfshaft inner joint, support the wheel knuckle.

    E57812
    Using the special tool, release the upper arm ball joint.
      • Remove and discard the nut.
  13. E57871
    Remove the 8 body mount bolts.
  14. CAUTION:

    Only raise the body sufficiently to remove the body mount.

    Carefully raise the body.
      • Using suitable stands, raise the body to release the body mounts.

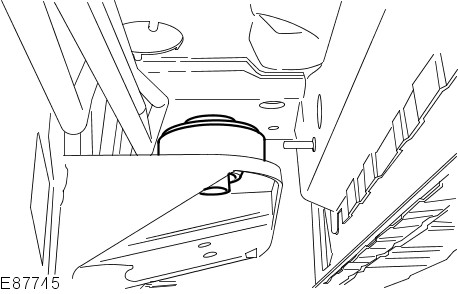

  15. E87745
    Remove the body mount.
  16. E45739
    Remove the radiator splash shield.
      • Remove the 4 bolts.
  17. WARNING:

    Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

    CAUTIONS:

    • Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.

    • Make sure the release sleeve is pushed back no further than 3 mm (0.12 inches). Failure to follow this instruction may result in damage to the vehicle.

    • Do not lever the connection apart. Failure to follow this instruction may result in damage to the vehicle.

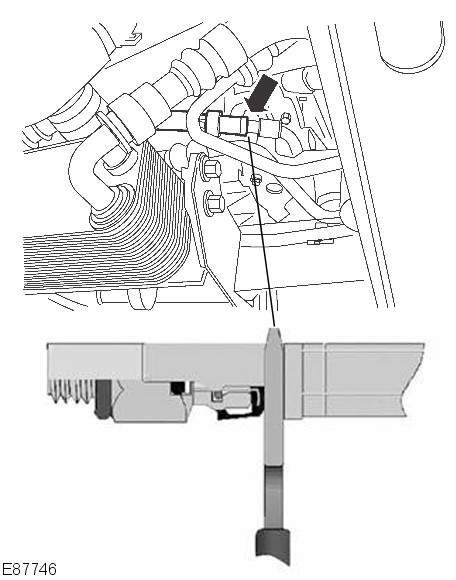

    E87746
    Using a suitable tool, disconnect the high-pressure line.
    1. Insert the suitable tool behind the release sleeve.
    2. Disconnect the high-pressure line.
  18. Remove the air cleaner. For additional information, refer to: Air Cleaner (303-12D Intake Air Distribution and Filtering - TDV8 3.6L Diesel, Removal and Installation).
  19. CAUTION:

    Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.

    NOTE:

    Some fluid spillage is inevitable during this operation.

    E57816
    Disconnect the fluid return line from the reservoir.
      • Position a container to collect the fluid spillage.
      • Reposition the fluid line into the wheel arch area.
  20. CAUTIONS:

    • Always plug any open connections to prevent contamination.

    • Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.

    NOTE:

    Some fluid spillage is inevitable during this operation.

    E57817
    Disconnect the front actuator pipes from the valve block.
      • Position a container to collect the fluid spillage.
      • Remove and discard the 2 nuts.
      • Install blanking caps to the exposed ports.
  21. E57818
    Release the valve block to front stabilizer bar actuator pipe assembly mountings.
      • Remove the 2 nuts and 1 bolt.
  22. Remove the valve block to front stabilizer bar actuator pipe assembly.
Installation
  1. E58627
    Check the valve block O-rings and plastic spacer washers are correctly installed.
      • A: Backing rings (white)
      • B: Outer clamping ring
      • C: O-ring seals
      • D: Outer backing ring (Black)
  2. Install the valve block to front stabilizer bar actuator pipe assembly.
      • Clean the components.
  3. Connect the front actuator pipes to the valve block.
      • Remove the blanking caps from the ports.
      • Install 2 new nuts and tighten to 22 Nm (16 lb.ft).
      • Remove the container.
  4. Attach the valve block to front stabilizer bar actuator pipe assembly mountings.
      • Tighten the 2 nuts and 1 bolt to 9 Nm (7 lb.ft).
  5. Connect the fluid line to the reservoir.
      • Reposition the fluid line from the wheel arch area.
      • Install the clip.
      • Remove the container.
  6. Install the air cleaner. For additional information, refer to: Air Cleaner (303-12D Intake Air Distribution and Filtering - TDV8 3.6L Diesel, Removal and Installation).
  7. NOTE:

    Pull on the 2 halves of the high-pressure line connector to make sure the latch has fully engaged.

    Connect the high-pressure line.
      • Remove the blanking caps from the ports.
      • Remove the container.
  8. Install the radiator splash shield.
      • Tighten the M6 bolts to 10 Nm (7 lb.ft).
      • Tighten the M10 bolts to 62 Nm (46 lb.ft).
  9. Install the body mount.
  10. Lower the body.
      • Remove the stands.
  11. Install the body mount bolts.
      • Tighten the bolts to 133 Nm (98 lb.ft).
  12. Connect the upper arm and wheel knuckle.
      • Install a new nut and tighten to 70 Nm (52 lb.ft).
  13. Install the wheel speed sensor.
      • Tighten the bolt to 9 Nm (7 lb.ft).
      • Connect the electrical connector.
      • Secure the wiring harness in the clips.
  14. Secure the brake caliper to the wheel knuckle.
      • Tighten the bolts to 275 Nm (203 lb.ft).
  15. Secure the brake hose bracket to the wheel knuckle.
      • Tighten the bolt to 23 Nm (17 lb.ft).
  16. Install the shock absorber and air spring assembly. For additional information, refer to: Front Shock Absorber and Air Spring Assembly (204-05, Removal and Installation).
  17. CAUTIONS:

    • Make sure the actuator fluid lines are not damaged or kinked during removal or installation.

    • Care must be taken to avoid damage to the plastic spacer washers and O-ring seals during installation of the fluid lines to the actuator.

    NOTE:

    Some fluid spillage is inevitable during this operation.

    Connect the fluid lines to the actuator.
      • Clean the component mating faces.
      • Remove the blanking caps from the ports.
      • Install new plastic spacer washers and O-ring seals.
      • Tighten the 2 bolts to 22 Nm (16 lb.ft).
      • Tighten the fluid line bracket bolt to 4 Nm (3 lb.ft).
  18. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  19. Using the approved Land Rover diagnostic system, bleed the active stabilization system. For additional information, refer to: Active Stabilization System Bleeding (204-06, General Procedures).
  20. Install the engine undershield. For additional information, refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).
  21. CAUTIONS:

    • Make sure the hardened steel washer is installed between the stabilizer bar link and the upper arm. Failure to follow this instruction may result in damage to the vehicle.

    • Use a Torx socket to prevent the ball joint rotating whilst installing the nut.

    Secure the stabilizer bar link.
      • Install a new nut and tighten to 175 Nm (129 lb.ft).
  22. Install the front wheels and tires.
      • Tighten the wheel nuts to 140 Nm (103 lb.ft).
  23. Install the rear bumper cover. For additional information, refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).
