2007.0 Range Rover Sport (LS), 501-02

Front End Body Panels

Engine Undershield (G354673)

REMOVAL AND INSTALLATION
  • 76.10.50
  • Engine Undershield
  • All Derivatives
  • 0.20
  • USED WITHINS
Removal
  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. CAUTION:

    Note the special washer.

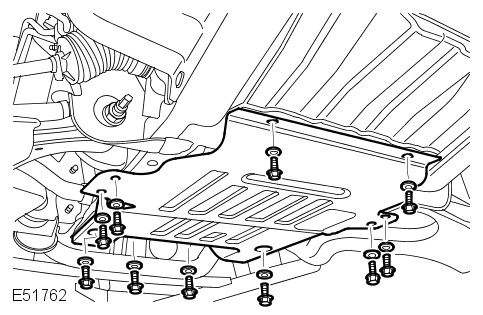

    E51762
    Remove the engine undershield.
      • Remove the 10 bolts.
Installation
  1. To install, reverse the removal procedure.
      • Tighten the bolts to 62 Nm (46 lb.ft).
