2007.0 Range Rover Sport (LS), 303-12D

Intake Air Distribution and Filtering - TDV8 3.6L Diesel

Air Cleaner (G940588)

REMOVAL AND INSTALLATION
  • 19.10.01
  • Air Filter Housing - Renew
  • TDV8
  • 0.30
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).

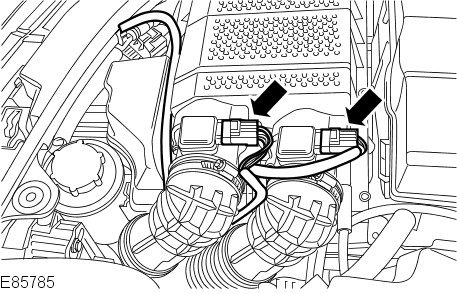

  2. E85785
    Disconnect both mass air flow (MAF) sensor electrical connectors.
      • Release and reposition the wiring harness.

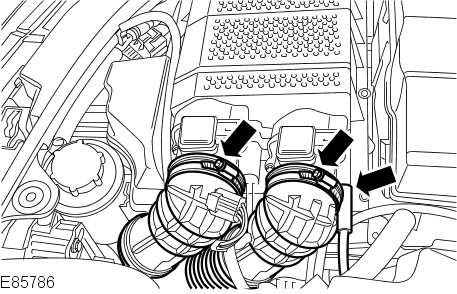

  3. E85786
    Release both MAF sensor outlet pipes.
      • Release the 2 clips.
      • Release the port deactivation valve hose.

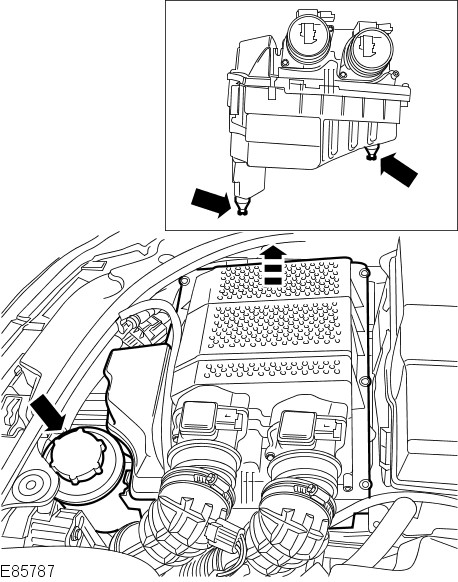

  4. E85787
    Remove the air cleaner.
      • Release the air cleaner from the 2 rubber grommets.
      • Release the active cornering enhancement (ACE) reservoir.
  5. NOTE:

    Do not disassemble further if the component is removed for access only.

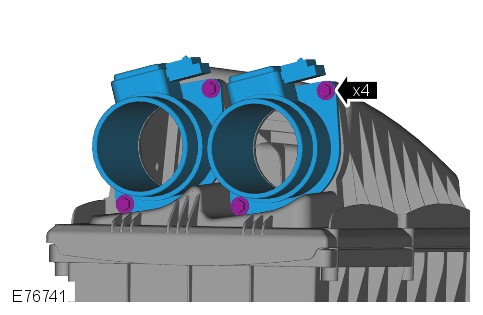

    E76741
    Remove the MAF sensors.
      • Remove the 4 screws.
      • Remove and discard the 2 O-ring seals.
Installation
  1. NOTE:

    When installing the air cleaner, make sure the locating pegs fit securely into the grommets.

    To install, reverse the removal procedure.
