2007.0 Range Rover Sport (LS), 211-02

Power Steering

Power Steering Pump - TDV8 3.6L Diesel (G940169)

REMOVAL AND INSTALLATION
  • 57.20.14
  • Power Steering Pump - Renew
  • TDV8
  • 1.70
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Raise and support the vehicle.
  3. Remove the LH fender splash shield. For additional information, refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
  4. CAUTIONS:

    • Make sure that all openings are sealed. Use new blanking caps.

    • Make sure that the area around the component is clean and free of foreign material.

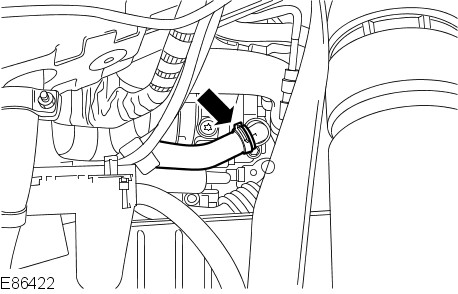

    E86422
    Disconnect the power steering pump supply hose.
      • Release the clip.
      • Position a container to collect the fluid.
  5. CAUTIONS:

    • Make sure that all openings are sealed. Use new blanking caps.

    • Make sure that the area around the component is clean and free of foreign material.

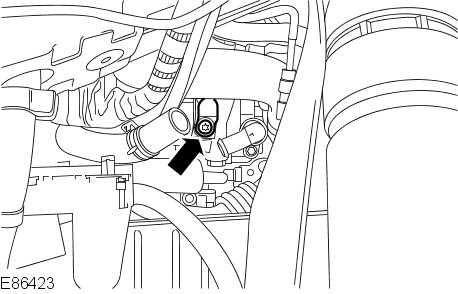

    E86423
    Disconnect the power steering pump high-pressure line.
      • Remove the bolt.
      • Remove and discard the O-ring seal.

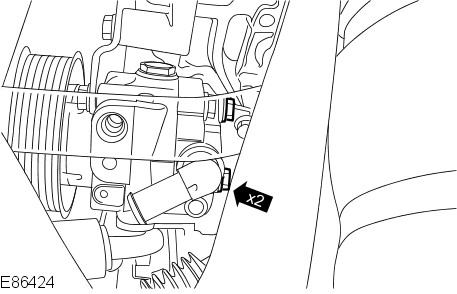

  6. E86424
    Remove the 2 power steering pump rear bolts.
  7. Remove the cooling fan belt lower idler pulley. For additional information, refer to: Cooling Fan Belt Idler Pulley (303-05D Accessory Drive - TDV8 3.6L Diesel, Removal and Installation).

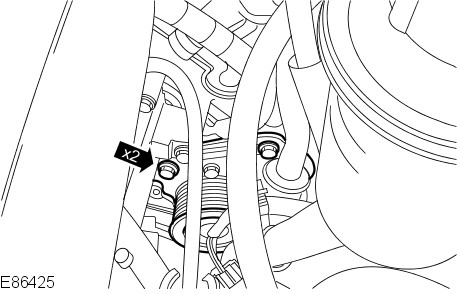

  8. E86425
    Remove the power steering pump and mounting bracket.
      • Remove the remaining 2 bolts.
Installation
  1. Install the power steering pump and mounting bracket.
      • Tighten the bolts to 23 Nm (17 lb.ft).
  2. Install the cooling fan belt lower idler pulley. For additional information, refer to: Cooling Fan Belt Idler Pulley (303-05D Accessory Drive - TDV8 3.6L Diesel, Removal and Installation).
  3. Tighten the power steering pump rear bolts to 23 Nm (17 lb.ft).
  4. NOTE:

    Remove and discard the blanking caps.

    Connect the power steering pump high-pressure line.
      • Install a new O-ring seal.
      • Tighten the bolt to 25 Nm (18 lb.ft).
  5. NOTE:

    Remove and discard the blanking caps.

    Connect the power steering pump supply hose.
      • Secure with the clip.
  6. Install the LH fender splash shield. For additional information, refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
  7. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  8. Fill and bleed the power steering system. For additional information, refer to: Power Steering System Filling and Bleeding (211-00 Steering System - General Information, General Procedures).
