2007.0 Range Rover Sport (LS), 303-05D

Accessory Drive - TDV8 3.6L Diesel

Cooling Fan Belt Idler Pulley (G941217)

REMOVAL AND INSTALLATION
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Raise and support the vehicle.
  3. Remove the cooling fan belt. For additional information, refer to: Cooling Fan Belt (303-05D Accessory Drive - TDV8 3.6L Diesel, Removal and Installation).

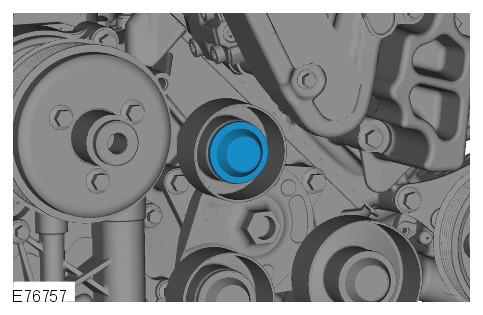

  4. E76757
    Remove and discard the access cover.
  5. NOTE:

    The bolt and spacer will remain captive to the accessory drive belt idler pulley.

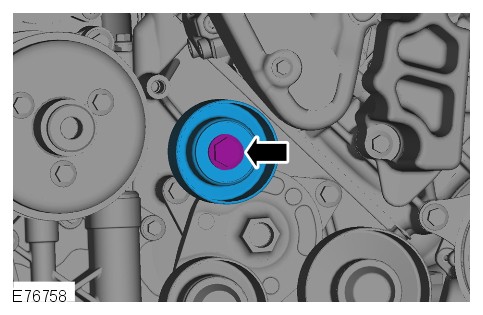

    E76758
    Remove the cooling fan belt idler pulley.
Installation
  1. To install, reverse the removal procedure.
      • Tighten the 65 mm idler pulleys to 48 Nm (35 lb.ft).
      • Tighten the 80 mm idler pulley to 80 Nm (59 lb.ft).
