2007.0 Range Rover Sport (LS), 501-02

Front End Body Panels

Fender Splash Shield (G412888)

REMOVAL AND INSTALLATION
  • 76.10.48
  • Liner - front wheel arch - front - left/single - renew
  • All Derivatives
  • 0.40
  • USED WITHINS
Removal

The following step(s) applies to:
All vehicles

  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

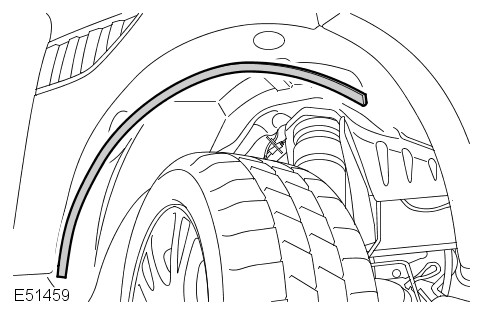

  2. E51459
    Remove the fender seal
  3. E51455
    Remove the fender splash shield.
      • Release the 6 clips.
      • Remove the 7 screws.
      • Disconnect the electrical connector.
  4. NOTE:

    Do not disassemble further if the component is removed for access only.

    E46262
    Remove the tire pressure antenna.
      • Release the 2 clips.

The following step(s) applies to:
Vehicles with supercharger

  1. NOTE:

    Right-hand shown, left-hand similar.

    E51457

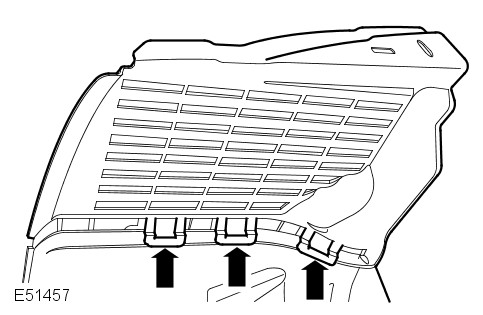

    Remove fender splash shield grille.
      • Release the 3 clips and remove the cover.
Installation

The following step(s) applies to:
Vehicles with supercharger

  1. Install the fender splash shield grille.
      • Secure with the clips.

The following step(s) applies to:
All vehicles

  1. Install the tire pressure antenna.
  2. Install the fender splash shield.
      • Tighten the screws.
      • Install the clips.
      • Connect the electrical connector.
  3. Install the fender seal.
