2007.0 Range Rover Sport (LS), 303-01D

Engine - TDV8 3.6L Diesel

Right Engine Mount (G939956)

IN-VEHICLE REPAIR
  • 12.45.12
  • Right Engine Mount - Renew
  • TDV8
  • 1.70
  • USED WITHINS
Removal
CAUTION:

If a starter motor is being replaced, a snorkel must be installed. Failure to follow this instruction may result in damage to the vehicle.

  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the auxiliary battery tray. For additional information, refer to: Battery Tray (414-01 Battery, Mounting and Cables, Removal and Installation).
  3. Raise and support the vehicle.
  4. E47078
    Disconnect the steering column lower shaft from the steering column.
      • Remove and discard the bolt.

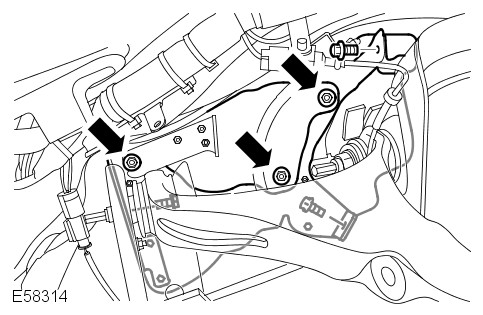

  5. E58314
    Remove the upper suspension arm and brake line heat shields for access.
      • Remove the 3 nuts.
      • Remove the 3 bolts.
      • Remove the heat shield bracket.
  6. E85742
    Release the RH engine mount.
      • Remove the nut.
      • Remove the 2 bolts.
  7. Remove the engine undershield. For additional information, refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).
  8. E45739
    Remove the radiator splash shield.
      • Remove the 4 bolts.
  9. E85745
    Release the engine stabilizer.
      • Remove the nut and bolt.
  10. E85744
    Remove the RH splash shield.
      • Remove the 4 clips.
  11. E44595
    Remove the transmission undershield.
      • Remove the 6 bolts.
  12. E76673
    Disconnect the switch lead from the starter motor solenoid.
      • Remove the bolt.
  13. E76674
    Disconnect the 2 battery positive cables from the starter motor solenoid.
      • Remove the nut.
  14. NOTES:

    • Vehicles with snorkel installed.

    • Some variation in the illustrations may occur, but the essential information is always correct.

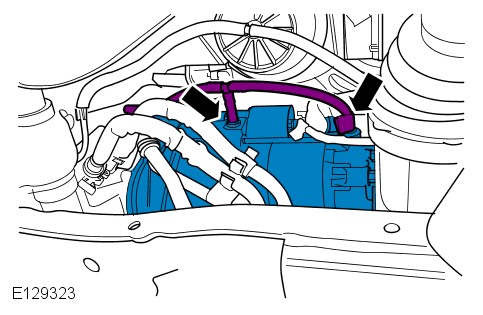

    E129323
    Disconnect the snorkel.
      • Disconnect the 2 pipes.
  15. E76676
    Reposition the starter motor.
      • Remove the 2 bolts.
  16. E82731
    Disconnect the RH engine mount vacuum line.
  17. Remove the RH engine mount.
      • Using a suitable hydraulic jack, raise and support the engine.
  18. NOTES:

    • Vehicles without snorkel installed.

    • Some variation in the illustrations may occur, but the essential information is always correct.

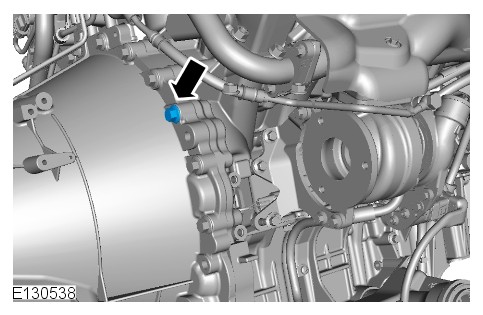

    E130538
    Remove and discard the bolt.
Installation
  1. NOTES:

    • Vehicles without snorkel installed.

    • Some variation in the illustrations may occur, but the essential information is always correct.

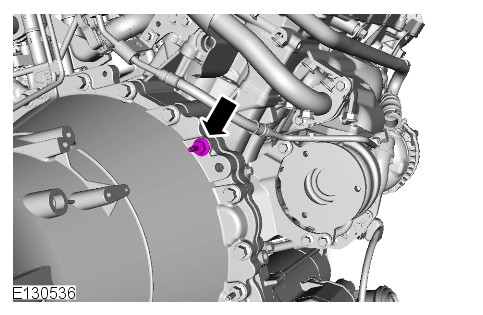

    E130536
    Install the stud.
      • Tighten to 45 Nm (33 lb.ft)
  2. Install the RH engine mount.
  3. Connect the RH engine mount vacuum line.
  4. Secure the starter motor.
      • Clean the component mating faces.
      • Tighten the bolts to 45 Nm (33 lb.ft).
  5. Connect the battery positive cable.
      • Tighten the nut to 22 Nm (16 lb.ft).
  6. Connect the switch lead to the starter motor solenoid.
      • Tighten the nut to 4 Nm (3 lb.ft).

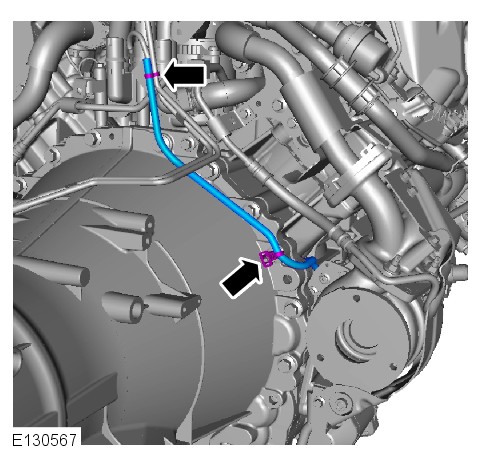

  7. E130567
    Route the snorkel tube as shown.
      • Secure the clips.

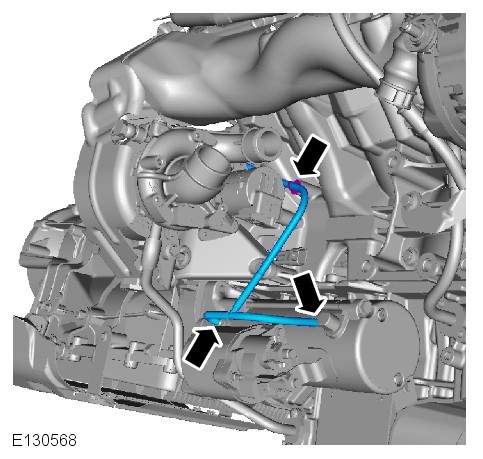

  8. E130568
    Fit the snorkel tube to the starter motor.
      • Connect the 2 snorkel tubes.
      • Secure the clip.
  9. Install the transmission undershield.
      • Tighten the bolts to 10 Nm (7 Ib.ft).
  10. Secure the RH engine mount.
      • Lower the engine.
      • Tighten the nut to 100 Nm (74 lb.ft).
      • Tighten the bolts to 56 Nm (41 lb.ft).
  11. NOTE:

    The heatshield consists of 3 parts.

    Install the upper suspension arm and brake line heat shields.
      • Install the bolts.
      • Install the nuts.
  12. Install the RH splash shield.
      • Install the clips.
  13. Secure the engine stablizer.
      • Tighten the nut and bolt to 40 Nm (30 lb.ft).
  14. Install the radiator splash shield.
      • Tighten the bolts to 10 Nm (7 lb.ft).
  15. Install the engine undershield. For additional information, refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).
  16. WARNING:

    Make sure that a new bolt is installed.

    Connect the steering column lower shaft to the steering column.
      • Tighten the bolt.
  17. Install the auxiliary battery tray. For additional information, refer to: Battery Tray (414-01 Battery, Mounting and Cables, Removal and Installation).
  18. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
