Published: 11-May-2011

2007.0 Range Rover Sport (LS), 303-01D

Engine - TDV8 3.6L Diesel

Left Engine Mount (G939955)

IN-VEHICLE REPAIR
  • 12.45.11
  • Left Engine Mount - Renew
  • TDV8
  • 2.20
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Raise and support the vehicle.
  3. Remove the LH front wheel and tire.
  4. Partially drain the cooling system. For additional information, refer to: Cooling System Partial Draining, Filling and Bleeding (303-03E Engine Cooling - TDV8 3.6L Diesel, General Procedures).
  5. E80229
    Disconnect the radiator upper hose.
      • Release the clip.
  6. E80230
    Disconnect the auxiliary radiator coolant hose.
      • Release the clip.

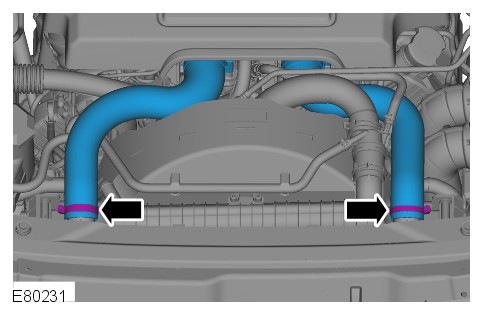

  7. E80231
    Disconnect the 2 charge air cooler outlet hoses.
      • Release the 2 clips.
  8. E85453
    Remove the cooling fan upper shroud.
      • Release from the 3 clips.
  9. Remove the engine undershield. For additional information, refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).
  10. Remove the front RH fender splash shield. For additional information, refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
  11. Release the engine ground cable.
      • Remove the nut.
  12. E46253
    Remove the front LH splash shield.
      • Remove the 4 clips.
  13. E85745
    Release the engine stabilizer.
      • Remove the nut and bolt.

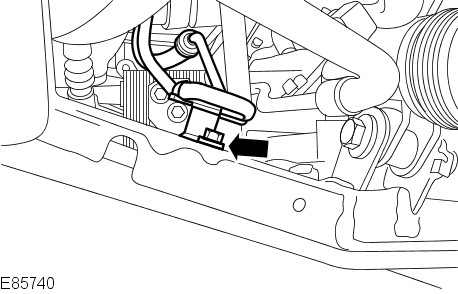

  14. E85740
    Release the power steering line support bracket.
      • Remove the bolt.
  15. E85741
    Remove the LH splash shield.
      • Remove the 4 clips.

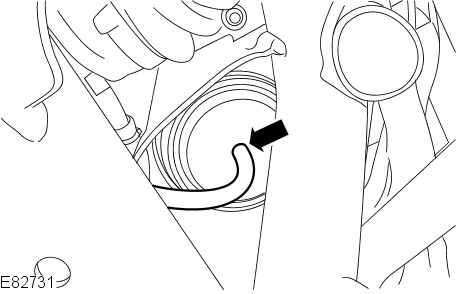

  16. E82731
    Disconnect the LH engine mount vacuum line.
  17. NOTE:

    The heat shield consists of 3 parts.

    E49805
    Remove the upper suspension arm and brake line heat shields for access.
      • Remove the 3 nuts.
      • Remove the 3 bolts.
      • Remove the bracket.
  18. E85742
    Release the LH engine mount.
      • Remove the 2 bolts.
      • Remove the nut.
      • Using a suitable hydraulic jack, raise and support the engine.

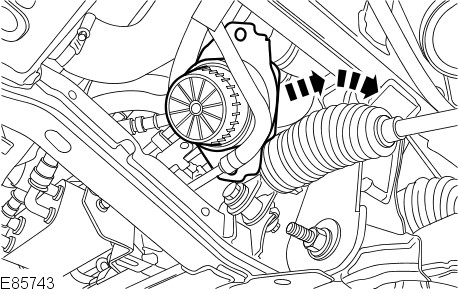

  19. E85743
    Remove the LH engine mount.
Installation
  1. Install the LH engine mount.
  2. Secure the LH engine mount.
      • Tighten the nut to 100 Nm (74 lb.ft).
      • Tighten the bolts to 56 Nm (41 lb.ft).
      • Lower the engine onto the mount.
  3. Connect the LH engine mount vacuum line.
  4. NOTE:

    The heat shield consists of 3 parts.

    Install the upper suspension arm and brake line heat shields.
      • Install the bolts.
      • Install the nuts.
      • Tighten to 6 Nm (4 lb.ft).
  5. Install the LH splash shield.
      • Install the clips.
  6. Secure the power steering line support bracket.
      • Tighten the bolt.
  7. Secure the engine stabilizer.
      • Tighten the nut and bolt to 115 Nm (85 lb.ft).
  8. Install the front LH splash shield.
      • Install the clips.
  9. Secure the engine ground cable.
      • Tighten the nut.
  10. Install the front RH fender splash shield. For additional information, refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
  11. Install the engine undershield. For additional information, refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).
  12. Install the cooling fan upper shroud.
      • Secure in the clips.
  13. Connect the charge air cooler outlet hoses.
      • Tighten the clips.
  14. Connect the auxiliary radiator coolant hose.
      • Secure the clip.
  15. Connect the radiator upper hose.
      • Secure the clip.
  16. Install the LH front wheel and tire.
      • Tighten the wheel nuts to 140 Nm (103 lb.ft).
  17. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  18. Fill and bleed the cooling system. For additional information, refer to: Cooling System Partial Draining, Filling and Bleeding (303-03E Engine Cooling - TDV8 3.6L Diesel, General Procedures).
