2007.0 Range Rover Sport (LS), 501-30

Rear End Sheet Metal Repairs

D-Pillar Closing Panel (G540457)

REMOVAL AND INSTALLATION
Removal
NOTE:

In this procedure the D-pillar closing panel is replaced in conjunction with the quarter panel.

  1. Disconnect both battery cables. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the quarter panel. For additional information, refer to: Quarter Panel (501-30 Rear End Sheet Metal Repairs, Removal and Installation).

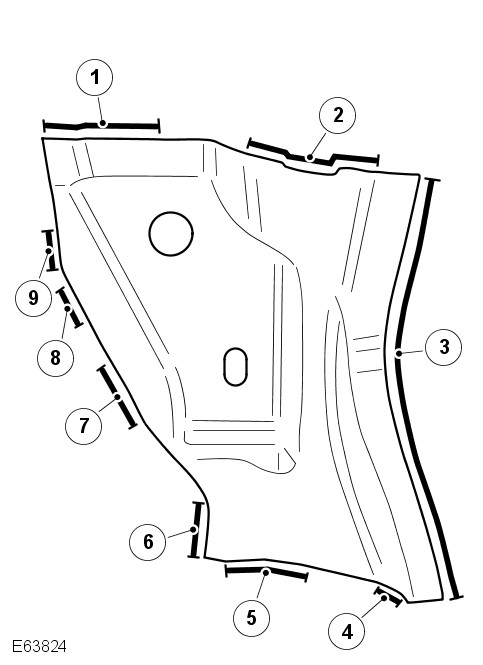

  3. E63824

    ItemDescription
    1Mig weld.
    21 plug weld.
    37 spot welds.
    41 spot weld.
    5,6,7,8,9Mig weld.
  4. For additional information:
      • Welding. For additional information, refer to: Body Repairs (501-25A Body Repairs - General Information -, Description and Operation).Corrosion protection. For additional information, refer to: Corrosion Protection (501-25B Body Repairs - Corrosion Protection -, Description and Operation).Tolerance checks. For additional information, refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
Installation
  1. Install is the reversal of removal.
