2007.0 Range Rover Sport (LS), 501-10

Seating

Front Seat Height Adjustment Motor (G529324)

REMOVAL AND INSTALLATION
  • 78.70.27
  • Motor - rise & fall - front seat - renew
  • All Derivatives
  • 1.20
  • USED WITHINS
Removal
NOTE:

Front seat height adjustment motor is supplied as part of the front seat frame assembly.

  1. Remove the front safety belt buckle. For additional information, refer to: Front Row Safety Belt Buckle (501-20A Seatbelt System, Removal and Installation).
  2. Remove the front seat cushion assembly. For additional information, refer to: Front Row Seat Cushion (501-10 Seating, Removal and Installation).

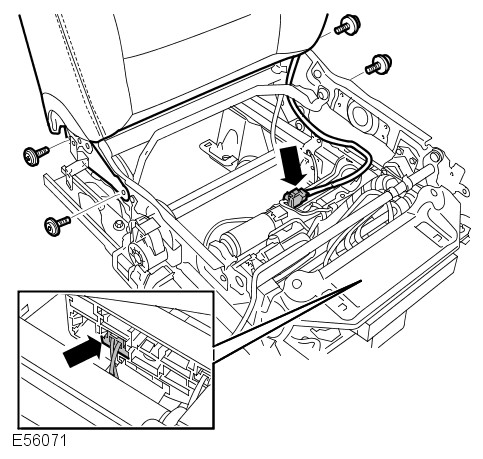

  3. E56071
    Remove the front seat backrest assembly.
      • Release and disconnect the 2 electrical connectors.
      • Remove the 4 Torx bolts.

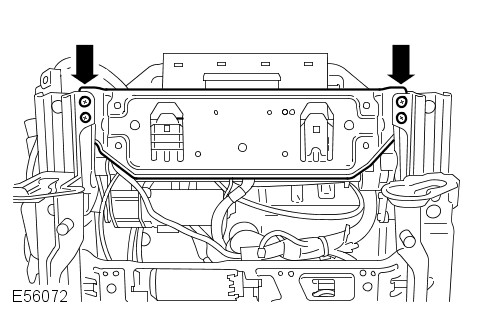

  4. E56072
    Remove the front seat electrical connector bracket.
      • Remove the 4 screws.

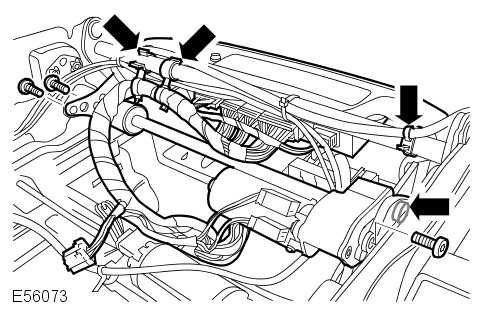

  5. E56073
    Remove the front seat tilt motor.
      • Release the 3 wiring harness clips.
      • Remove the 4 Torx bolts.

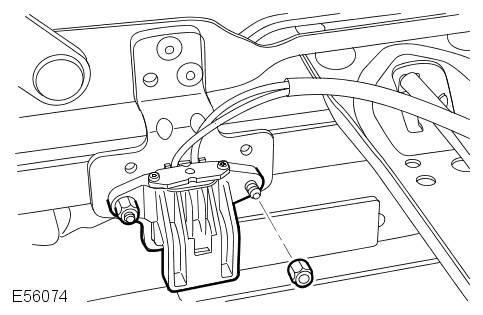

  6. E56074
    Remove the front seat position sensor.
      • Remove the 2 nuts.

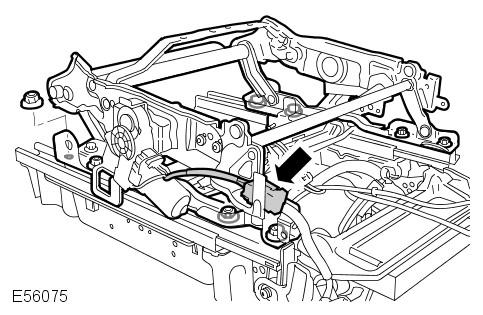

  7. E56075
    Remove the front seat height adjustment motor.
      • Disconnect the electrical connector.
      • Remove the 8 nuts.
Installation
  1. Install the front seat height adjustment motor.
      • Tighten the nuts to 25 Nm (18 lb.ft).
      • Connect the electrical connector.
  2. Install the front seat position sensor.
      • Tighten the nuts to 4 Nm (3 lb.ft).
  3. Install the front seat tilt motor.
      • Tighten the Torx bolts to 10 Nm (7 lb.ft).
      • Attach the wiring harness.
  4. Install the front seat electrical connector bracket.
      • Tighten the screws.
  5. Install the front seat backrest assembly.
      • Tighten the Torx bolts to 25 Nm (18 lb.ft).
      • Connect and secure the electrical connectors.
  6. Install the front seat cushion assembly. For additional information, refer to: Front Row Seat Cushion (501-10 Seating, Removal and Installation).
  7. Install the front safety belt buckle. For additional information, refer to: Front Row Safety Belt Buckle (501-20A Seatbelt System, Removal and Installation).
