Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-10

Seating

Front Row Seat Cushion (G401927)

REMOVAL AND INSTALLATION
  • 78.10.12.99
  • Cushion - front seat - remove for access & refit
  • All Derivatives
  • 0.20
  • USED WITHINS
Removal
NOTE:

In this procedure the cushion is removed as an assembly. There is a separate procedure showing removal of the cushion cover.

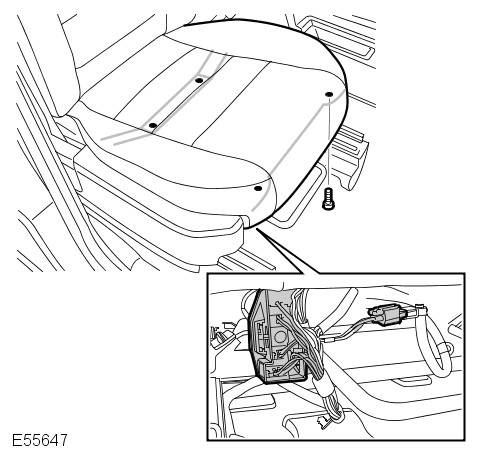

  1. E55647
    Remove the front seat cushion assembly.
      • Release and disconnect the 2 electrical connectors.
      • Remove the 4 Torx bolts.
Installation
  1. Install the front seat cushion assembly.
      • Tighten the Torx bolts to 25 Nm (18 lb.ft).
      • Connect and secure the electrical connectors.
