Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-20A

Seatbelt System

Front Row Safety Belt Buckle (G528918)

REMOVAL AND INSTALLATION
  • 76.73.30
  • Front Row Seatbelt Buckle - Renew
  • All Derivatives
  • 0.60
  • USED WITHINS
Removal
WARNINGS:

  • It is imperative that before any work is undertaken on the SRS system, the appropriate information is read thoroughly.

  • Always disconnect both battery cables before beginning work on the SRS system. Disconnect the ground cable first. Never reverse connect the battery.

  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Make the SRS system safe. For additional information, refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).
  3. Remove the front seat. For additional information, refer to: Front Seat (501-10, Removal and Installation).

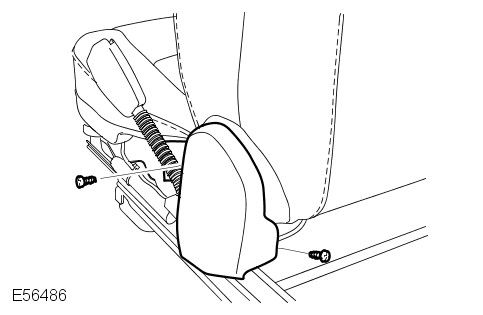

  4. E56486
    Remove the seat backrest hinge cover.
      • Remove the 2 screws.

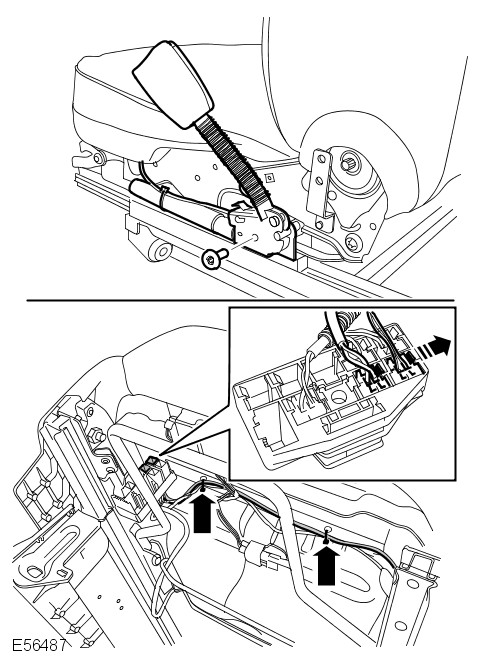

  5. E56487
    Remove the front safety belt buckle.
      • Remove the Torx bolt.
      • Disconnect the 2 electrical connectors.
      • Release the wiring harness.
Installation
  1. Install the front safety belt buckle.
      • Tighten the Torx bolt to 40 Nm (30 lb.ft).
      • Connect the electrical connectors.
      • Attach the wiring harness.
  2. Install the seat backrest hinge cover.
      • Tighten the screws.
  3. Install the front seat. For additional information, refer to: Front Seat (501-10, Removal and Installation).
  4. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
