2007.0 Range Rover Sport (LS), 419-01A

Anti-Theft - Active

Antenna (G443520)

REMOVAL AND INSTALLATION
  • 86.77.31
  • Receiver - alarm system - renew
  • All Derivatives
  • 1.30
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the RH B-pillar upper trim panel. For additional information, refer to: B-Pillar Upper Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  3. Remove the RH C-pillar upper trim panel. For additional information, refer to: C-Pillar Upper Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  4. Remove the RH D-Pillar upper trim panel. For additional information, refer to: D-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

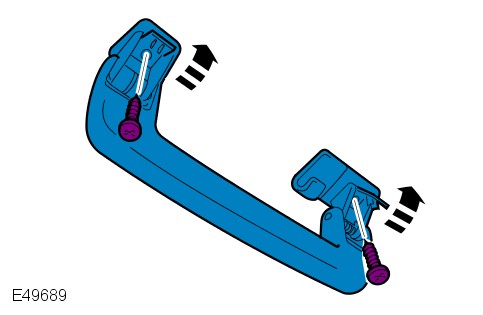

  5. E49689
    Remove the passenger assist handle.
      • Release the 2 screw covers.
      • Remove the 2 screws.
      • Repeat the above procedure for the other handle.

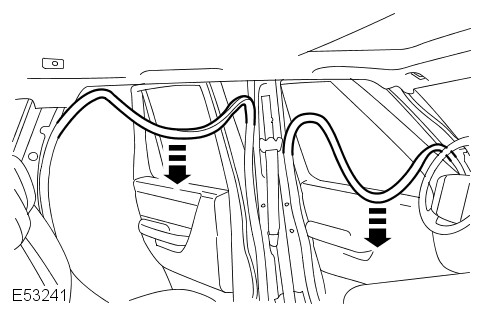

  6. E53241
    Release the front and rear door weatherstrips for access.

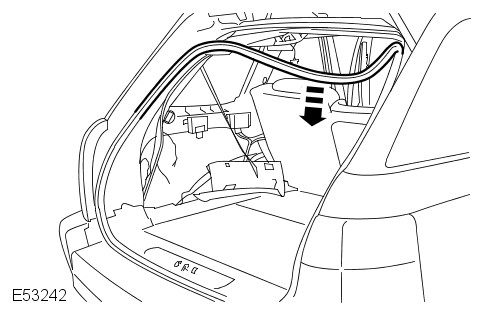

  7. E53242
    Release the liftgate weatherstrip

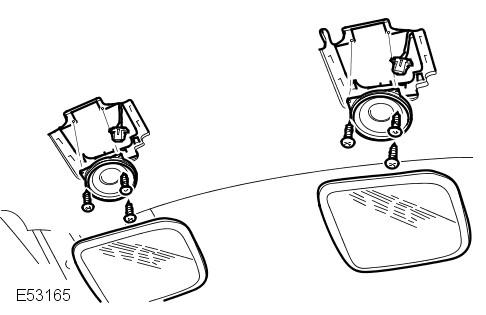

  8. E53165
    Remove the rear speakers.
      • Remove the speaker grilles.
      • Remove the 6 screws.
      • Disconnect the 2 electrical connectors.

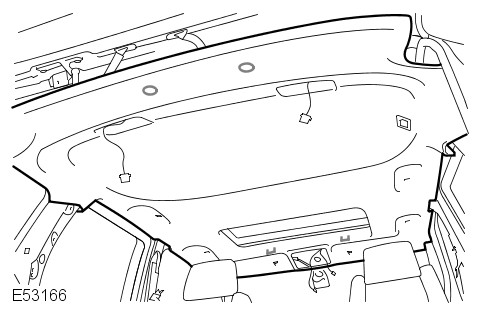

  9. E53166
    Release the headliner for access.
      • Release the 2 clips.

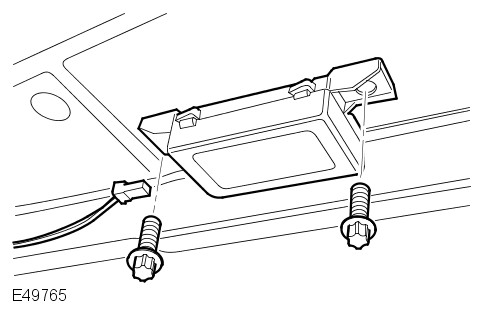

  10. E49765
    Remove the alarm antenna.
      • Release and disconnect the electrical connector.
      • Remove the 2 bolts.
Installation
  1. Install the alarm antenna.
      • Tighten the bolts to 6 Nm (4 lb.ft).
      • Connect and secure the electrical connector.
  2. Install the headliner.
      • Secure in the clips.
  3. Attach the door weatherstrips.
  4. Install the passenger assist handles.
      • Install the screws.
      • Secure the screw covers.
  5. Install the rear speakers.
      • Connect and secure the electrical connectors.
      • Install the screws.
      • Install the speaker grilles.
  6. Install the D-pillar upper trim panel. For additional information, refer to: D-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  7. Install the C-pillar upper trim panel. For additional information, refer to: C-Pillar Upper Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  8. Install the B-pillar upper trim panel. For additional information, refer to: B-Pillar Upper Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  9. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
