Published: 11-May-2011

2007.0 Range Rover Sport (LS), 419-08

Cellular Phone (G427231)

DESCRIPTION AND OPERATION
CELLULAR PHONE SYSTEM (up to 2009 MY)

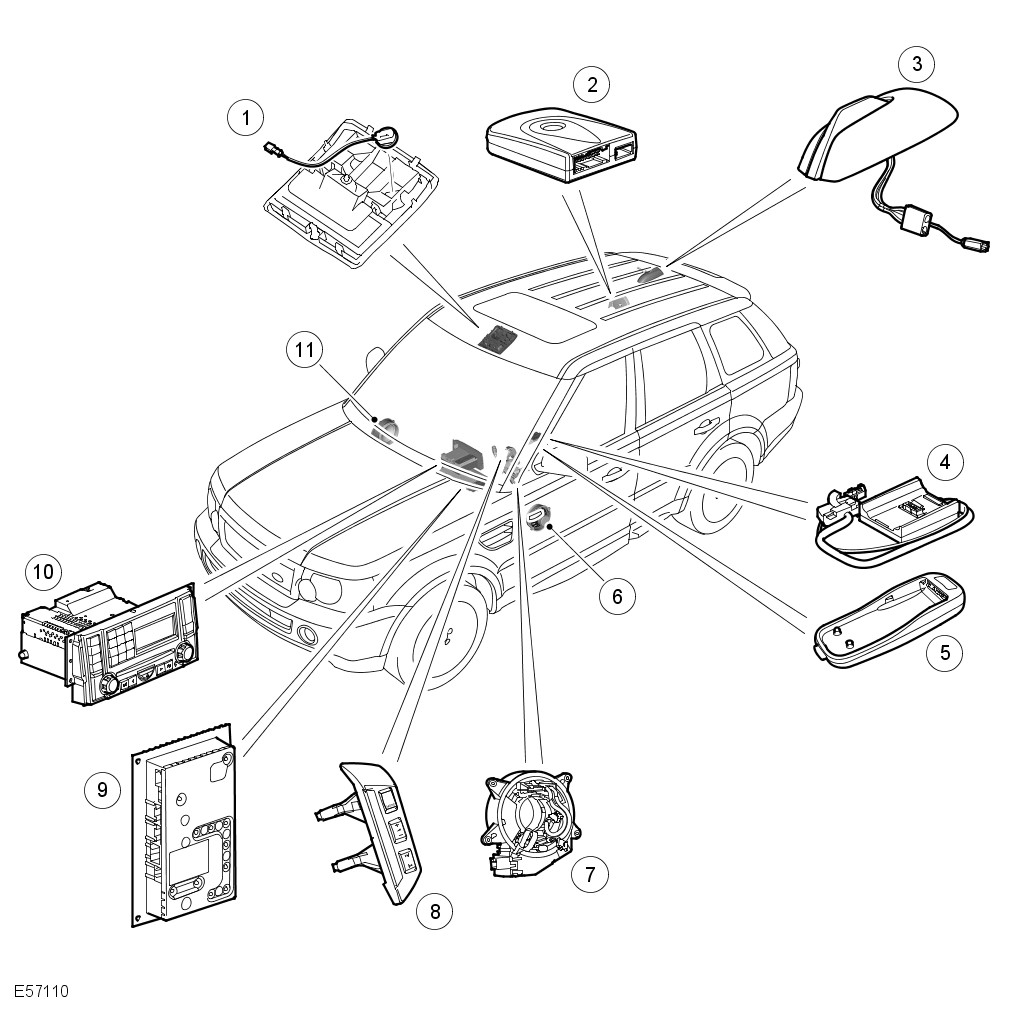

Cellular Phone Component Location (up to 2009 MY)
E57110

ItemDescription
1Microphone
2Transceiver Module (TM)
3Cellular Phone Antenna
4Base plate adaptor
5Adaptor cradle
6Speaker
7Clock spring
8Steering wheel switches
9Amplifier
10Integrated Head Unit (IHU)
11Speakers

The cellular phone system comprises:

  • Transceiver Module (TM)
  • Base plate adaptor
  • Telephone cradle
  • Microphone
  • Cellular Phone Antenna.

The telephone system fitted to the vehicle allows the driver to dock their own handset to the vehicle hands free telephone system. This is achieved using an adaptor cradle which is telephone specific. This cradle is mated to a standard baseplate which in turn is connected to the TM. The TM is connected to the MOST ring for communication with the rest of the system.For additional information, refer to: Communications Network (418-00 Module Communications Network, Description and Operation).

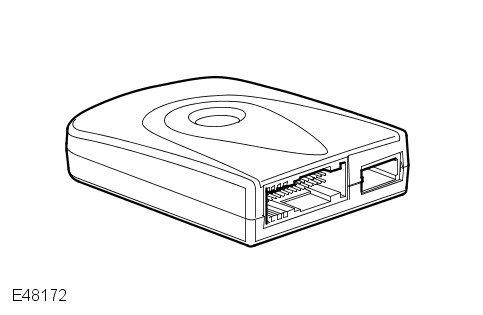

Transceiver Module

E48172

The Transceiver Module (TM) is located in the rear right-hand (RH) quarter of the luggage compartment. The TM is the interface between the telephone and the Integrated Head Unit (IHU). The TM also contains the telephone voice recognition hardware and software.

Transceiver Module Connector Pin Out C2777

Pin NoDescriptionInput/Output
1 to 15Not Used-
16IgnitionInput
17Battery voltageInput
18Battery voltageInput
19 to 32Not Used-
33ground (GND)-
34GND-
35Not Used-
36Not Used-
37Cellular phone ear piece +Output
38Cellular phone ear piece --
39Cellular phone Mic piece +Input
40Cellular phone Mic. piece --
41Wake up signal (non Nokia phone in cradle)Input
42Wake up signal ( Nokia phone in cradle)Input
43Not Used-
44Not Used-
45Transmit/receive to phoneInput/Output
46Shield ground-
47Serial transmission + (Nokia F bus)Output
48Serial transmission - (Nokia F bus)-
49Serial receive + (Nokia F bus)Input
50Serial receive - (Nokia F bus)-
51Cradle ID signalInput
52Cradle voltage supplyInput
53Phone charge ground-
54Battery charging voltageOutput

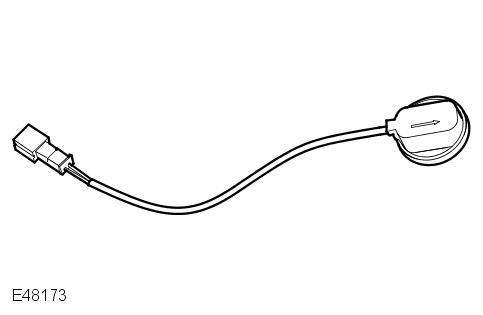

Microphone

E48173

A single microphone is used for hands-free telephone operation and for the voice recognition system. The microphone has an integrated noise suppression system for hands-free telephone use. The microphone is a standard directional type and is located in the front roof console.

Cellular Phone Antenna

E48085

The Cellular Phone Antenna is located in the roof mounted pod and is connected via a single coaxial cable to the TM.For additional information, refer to: Antenna (415-02 Antenna, Description and Operation).

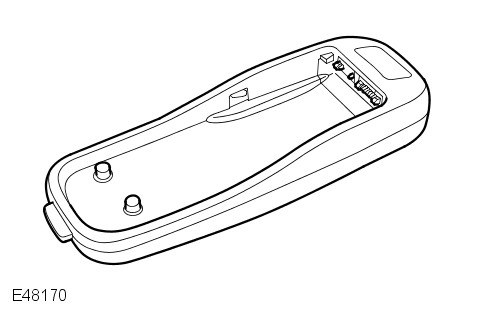

Telephone Adaptor Cradle

E48170

The telephone system allows for the use of different types/manufacturers handsets. This is achieved using a handset specific cradle which is mated to a standard base plate. The design of the adaptor cradle will vary to accommodate different types of phones.

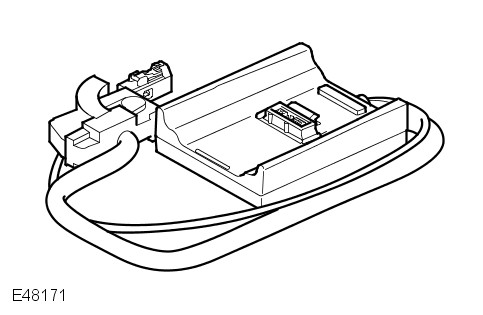

Telephone Adaptor Base Plate

E48171

The base plate is located in the center arm rest between the front seats. The base plate is connected to the TM via a dedicated serial link.

Steering Wheel Control Switches

E58417

ItemDescription
1Adaptive speed control gap adjustment switches
2Audio mode change switch
3Audio volume control
4Send key
5End key
6Audio system up/down
7Horn
8Speed control ON/OFF/ set speed
9Push to talk voice recognition switch
10Speed control set speed adjust

The Steering wheel control switches allow the driver to:

  • Receive a phone call.
  • End a phone call.
  • Activate the voice recognition system.

The switches operate on a resistive ladder principle. A voltage is supplied to the switches and dependant upon which button is pressed a reduced voltage is returned to the head unit or the applicable vehicle system.

TELEPHONE SYSTEM OPERATION (up to 2009 MY)

Telephone System

The telephone system can be operated from the IHU or via voice commands. The telephone system has the following functions:

  • Receive a call
  • Make a call
  • Phone book
  • Telephone phone book download.

The telephone system is accessed via the IHU. Once the phone is docked in the cradle it is possible to read/ download the phones own phone book to find a contact or phone number. A phone number can also be dialled into the key pad on the IHU.

Calls can be received or made by pressing the push to talk button on the steering wheel mounted controls.

VOICE RECOGNITION (up to 2009 MY)

The Voice recognition system controls the following systems where fitted:

  • Telephone
  • Radio (inc satellite radio)
  • compact disc (CD)/ MP3 Changer
  • Touch Screen Display (TSD)
  • Note Pad
  • Navigation.

Voice control enables the driver to activate important functions of the car telephone and navigation systems without needing to operate any controls manually. This allows the driver to concentrate fully on driving the vehicle. Whenever the driver issues one of the defined voice commands with the system active, the voice control system converts the command into a control signal for the telephone or navigation system. The system recognises which system the command is directed at and routes the direction accordingly. The driver is guided through the dialogues by announcements or questions.

Voice control will not control the television or climate control systems.

Voice tags already stored in the cellular phone handset are not accessible via the vehicles voice recognition system.

Voice recognition is activated by pressing the push to talk button on the steering wheel controls.

On vehicles without navigation system fitted the voice recognition software is held in the Transceiver Module (TM) and the microphone is hardwired directly into the TM. On vehicles with navigation the voice recognition software is held in the navigation computer and the microphone is hard wired to the navigation computer as well as the TM. Vehicles with no navigation system will have a slightly reduced functionality compared with vehicles that have navigation fitted as well as the phone.

The TM only houses voice recognition software for the telephone system.

Telephone

The telephone system allows the following to be accessed and controlled by the voice recognition function.

Dial Number

This allows the user to dial a number (up to 20 digits) by digit entry with the facility to correct the number. The number that is being input is displayed on the instrument pack message center. The maximum number of recognised digits that can be entered in one go is 16.

Phonebook

The phonebook function allows the user to store phone numbers against a nametag. Nametags are user repeatable association names given to identify the numeric destination of the phone call.

This facility allows approximately 50 nametags with corresponding telephone numbers to be stored within the voice recognition phonebook. This phonebook should not be confused with the phonebook held within the SIM card or mobile phone. This facility allows editing of the nametags and phonebook and also provides audible feedback of the recorded nametag. Where nametags are part of the audible feedback the corresponding phone number will be displayed in text form on the instrument cluster message center.

It is also possible to use the add name feature to enter a telephone number onto the IHU and then by voice recognition append a nametag and store this within the voice recognition phonebook.

Radio

The radio system allows the following to be accessed and controlled by the voice recognition function.

Radio On

This allows the user to switch on the radio function. "Radio On" switches the audio system to radio with the last station played.

Radio Tune

This allows the user to tune the radio into the desired frequency and band.

Radio Presets

This allows the user to allocate frequency against a given band preset. The user must be tuned into the desired frequency and band prior to preset allocation. If a preset already has a stored frequency and band against that preset then the new frequency and band is allotted.

The Auto store feature instructs the radio to select the six strongest signals and allocate them against the auto store presets.

There are nine preset memory locations within each of the following band settings, FM, FMA, AM, AMA, MW, MWA and LW (there are only nine presets available for LW band therefore no auto store available).

Voice commands will be available to allow the user to tune the radio to a given preset within the band that is currently tuned.

Radio Directory

This function allows the user to nametag the current frequency and band including Satellite Digital Audio Radio Service(SDARS). Nametags are user repeatable association names given to identify the frequency and band information thus allowing the radio to tune into the desired signal. This facility allows 20 nametags to be stored within the voice recognition. It is also possible for the system to replay the whole of the directory with the ability to play or delete the stations announced. Individual nametags can also be deleted

Where nametags are part of the audible feedback the corresponding frequency and band is displayed in text form on the instrument cluster message center.

CD Changer

The CD changer system allows the following to be accessed and controlled by the voice recognition function.

The voice commands are standard control features with exception of controls that can be accessed on the steering wheel. Commands are available for up to 256 tracks on a CD. The track number is displayed with 3 digits, i.e. track 6 is displayed as "006".For additional information, refer to: Audio System (415-01 Audio Unit, Description and Operation).

Display

This function allows the user to change the TSD display mode by voice command.

Voice Recognition Settings

Voice Feedback On / Off

Allows the user to choose between having audible feedback or not for functions, other than some necessary functions, which must have audible feedback to operate.

Replay

The replay command requests the voice recognition system to repeat it's last dialogue response within a list in both audible and a display in the instrument cluster message center.

Notepad

The notepad function allows the user to record a series of 10 notes for up to 5 min.

The user can replay or delete the notes in the order that they were recorded. It is also possible to delete the whole notepad.

TMC

The TMC system is part of the navigation system and provides real time traffic information to the navigation system. The voice commands are ON or OFF.For additional information, refer to: Navigation System (419-07 Navigation System, Description and Operation).

TMC also offers dynamic route guidance. This is can also be a voice operated ON/OFF function.

BLUETOOTH® (up to 2009 MY)

The TM has Bluetooth® functionality. Bluetooth® allows the user to connect their own mobile phone (Bluetooth® enabled only) to the vehicle telephone system. Once connected the user can use the vehicle hands free functions system. The Bluetooth® system limits the functions available to those that are present in the Bluetooth® hands free profile.

Bluetooth® will not allow the following to be accessed via the IHU:

  • No signal strength indication in the IHU
  • Phonebook download to the IHU
  • Missed calls
  • Last number redial
  • Calls list

Prior to the Bluetooth® equipped phone being used on the vehicle hands free system the phone must be paired to the TM. The pairing process can vary depending on the mobile handset that is being used. The following describes an example of the pairing process.

  • Switch Bluetooth "ON" on the handset.
  • The user initiates a search for other Bluetooth devices from the handset.
  • The TM acknowledges the existence of the Bluetooth® phone.
  • Land Rover appears in the handset available device list.
  • The user selects Land Rover from the device list and the TM will attempt pairing.
  • TM requests a PIN number from the phone.
  • The user enters the TM PIN number 2121.
  • If the PIN number is correct the phone is paired with the TM and its details are stored in the TM EEPROM.
  • If the PIN number is correct the phone is paired with the TM and the TM details are stored in the handset.

Once paired the TM will periodically check for stored Bluetooth® devices (approximately every 20 seconds). As this occurs the user will see a connection request on the handset and either accepts or declines the request. This request will only happen once per session.

Once the pairing procedure has been completed the mobile handset will automatically connect to the vehicle system once they come into range (approximately 10 metres) and the vehicle ignition is in position II. The word Bluetooth® displays in the IHU to inform the driver that the phone is connected to the TM.

Each time a paired phone and TM come into range the TM will request connection to the phone. The user can accept or decline this request from the handset.

Up to eight Bluetooth® equipped phones can be paired with the TM. Phones can be de-registered/disconnected at any time by the user. Only one phone at a time can be used via the vehicle hands free system. If a phone is connected to the vehicle via the cradle, this phone will cancel out any Bluetooth® phone operation.

If the TM is replaced each phone that is paired with the original TM will have to be re-paired with the new TM.

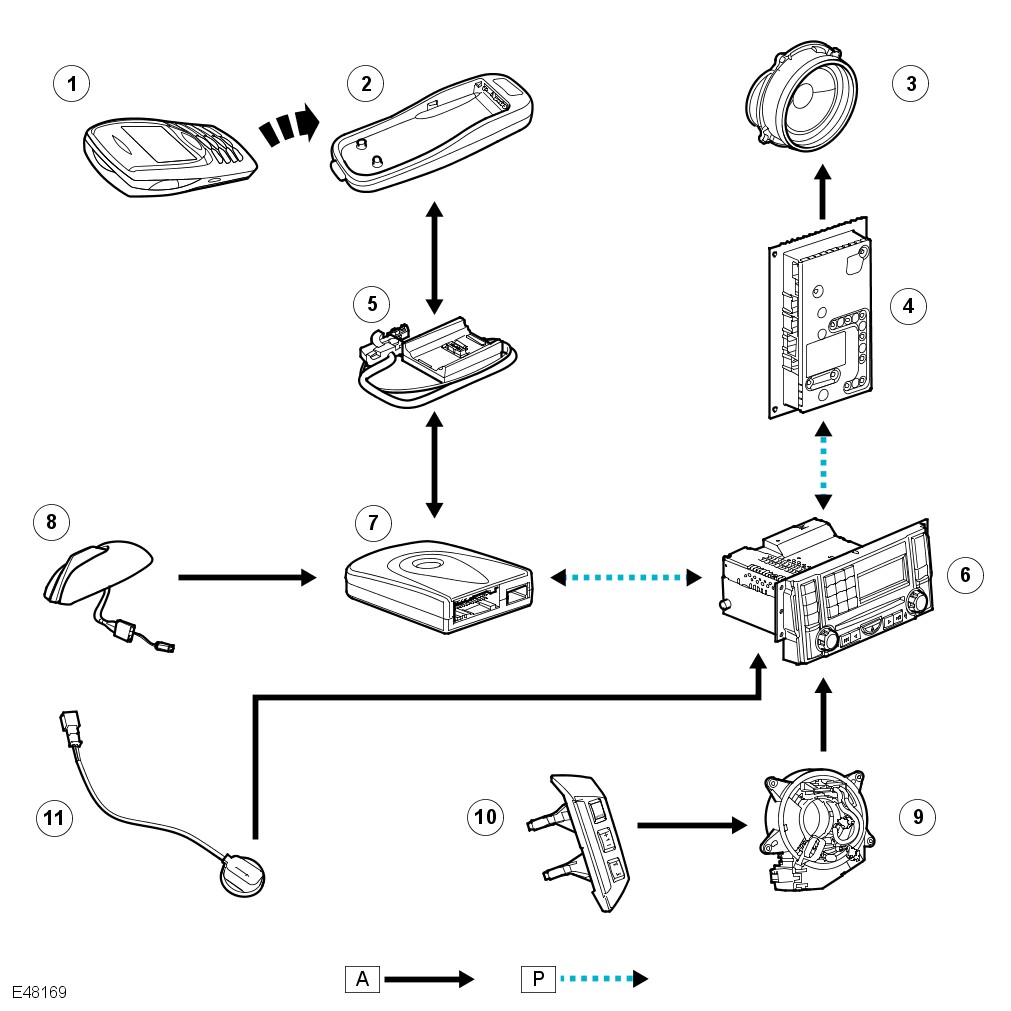

Cellular Phone Control Diagram (up to 2009 MY)
NOTE:

A= Hardwired P= MOST

E48169

ItemDescription
1Mobile handset
2Adaptor cradle
3Speakers
4Audio amplifier
5Base plate adaptor
6IHU
7Transceiver Module (TM)
8Cellular Phone Antenna
9Clock spring
10Steering wheel switches
11Microphone
CELLULAR PHONE SYSTEM (2009 MY Onwards)

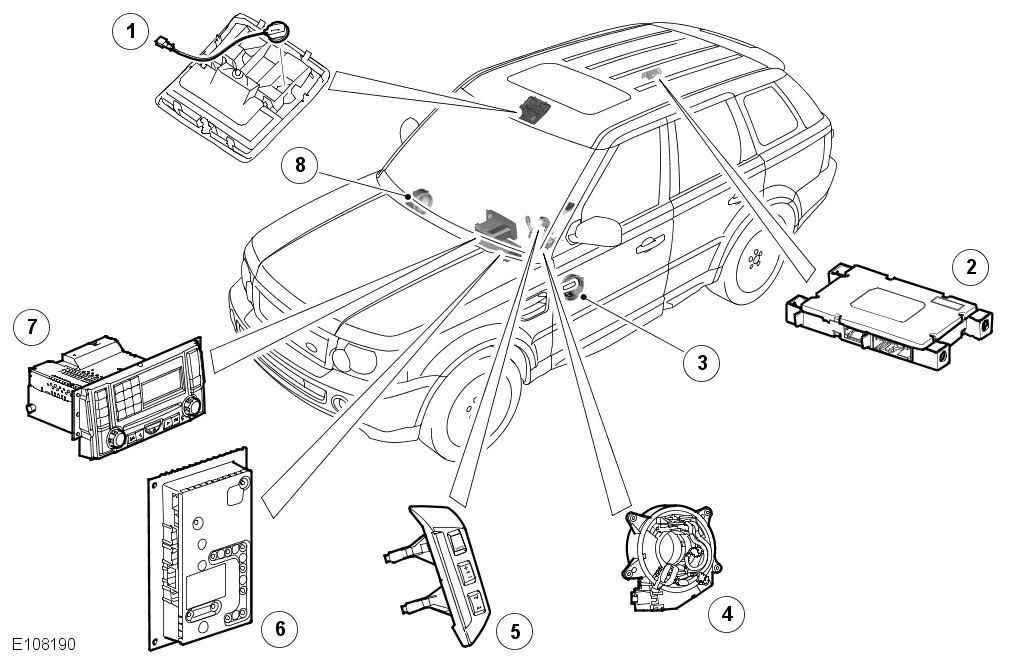

Cellular Phone Component Location (2009 MY Onwards)
E108190

ItemDescription
1Microphone
2 Bluetooth® phone module
3Speaker
4Clock spring
5Steering wheel switches
6Amplifier
7Integrated head unit
8Speaker
BLUETOOTH® (2009 MY Onwards)

The Bluetooth® phone module allows the user to connect their own mobile phone handset (Bluetooth® enabled only) to the vehicle telephone system.

Once connected, the user can use the vehicle hands free functions although, the Bluetooth® system limits the functions to those available in the Bluetooth® hands free profile.

The available features include:

  • Make/receive call
  • Voice calls using the phones own voice tags (where set up)
  • Signal strength indication on the Touch Screen Display (if supported by the telephone handset software)
  • Phonebook download
  • Missed calls
  • Last number redial
  • Calls list.

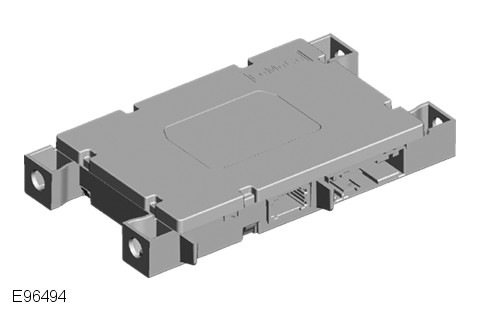

Bluetooth® Phone Module

E96494

The Bluetooth® phone module is connected to the MOST ring and is the interface between the telephone and the Integrated Header Unit, it processes all instructions and audio 'from and to' the phone.

TELEPHONE SYSTEM OPERATION (2009 MY Onwards)

Compatible Bluetooth® mobiles can communicate with the vehicle’s inbuilt telephone system. Connection must be made with ignition on or engine running.

Initial pairing of the phone to the vehicle

To prepare the mobile phone for pairing to the system, refer to the telephone manufacturer’s instructions, or follow the table in the vehicle handbook for generic commands.

When the handset has been successfully paired to the system, Bluetooth® will appear on the phone menu screen.

Bluetooth® selection

A maximum of 5 phones can be paired to the vehicle.

When the starter key is turned on, the vehicle searches for up to 5 previously paired phones, starting with the most recent pairing.

Before attempting a new pairing, wait for 30 seconds for this process to complete.

Making a call

Refer to vehicle's handbook.

Voice recognition

There is no Voice Recognition system on the Bluetooth® phone; refer to section Voice Recognition (up to 2009 MY), for voice recognition information on other vehicle systems.

Steering Wheel Control Switches

E58417

ItemDescription
1Adaptive speed control gap adjustment switches
2Audio mode change switch
3Audio volume control
4Send key
5End key
6Audio system up/down
7Horn
8Speed control ON/OFF/ set speed
9Push to talk voice recognition switch (Navigation System Only)
10Speed control set speed adjust

The Steering wheel control switches allow the driver to:

  • Receive a phone call.
  • End a phone call.

The switches operate on a resistive ladder principle. A voltage is supplied to the switches and dependant upon which button is pressed a reduced voltage is returned to the head unit or the applicable vehicle system.

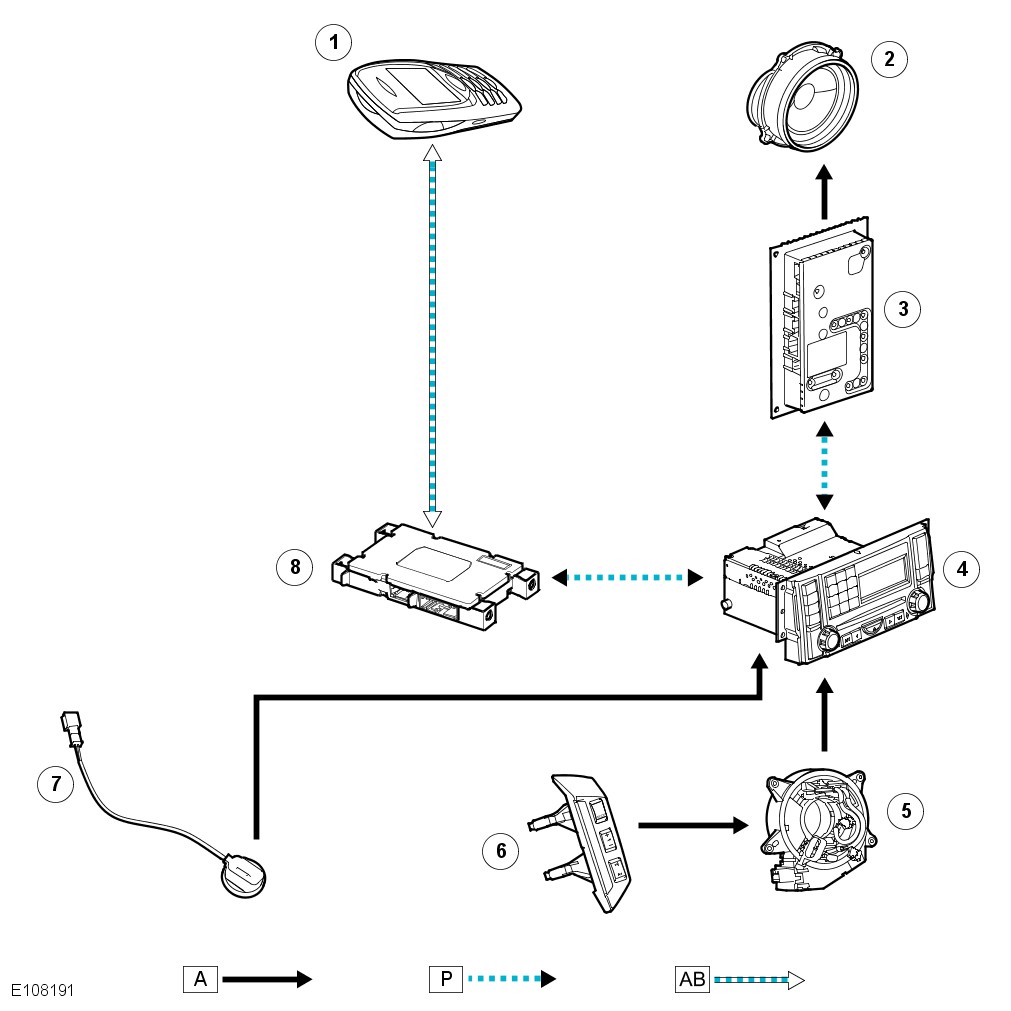

Cellular Phone Control Diagram (2009 MY Onwards)
NOTE:

A = Hardwired; P = MOST; AB = Bluetooth®

E108191

ItemDescription
1Bluetooth® cellular phone
2Speaker
3Amplifier
4Integrated head unit
5Clockspring
6Steering wheel switches
7Microphone
8 Bluetooth® phone module
