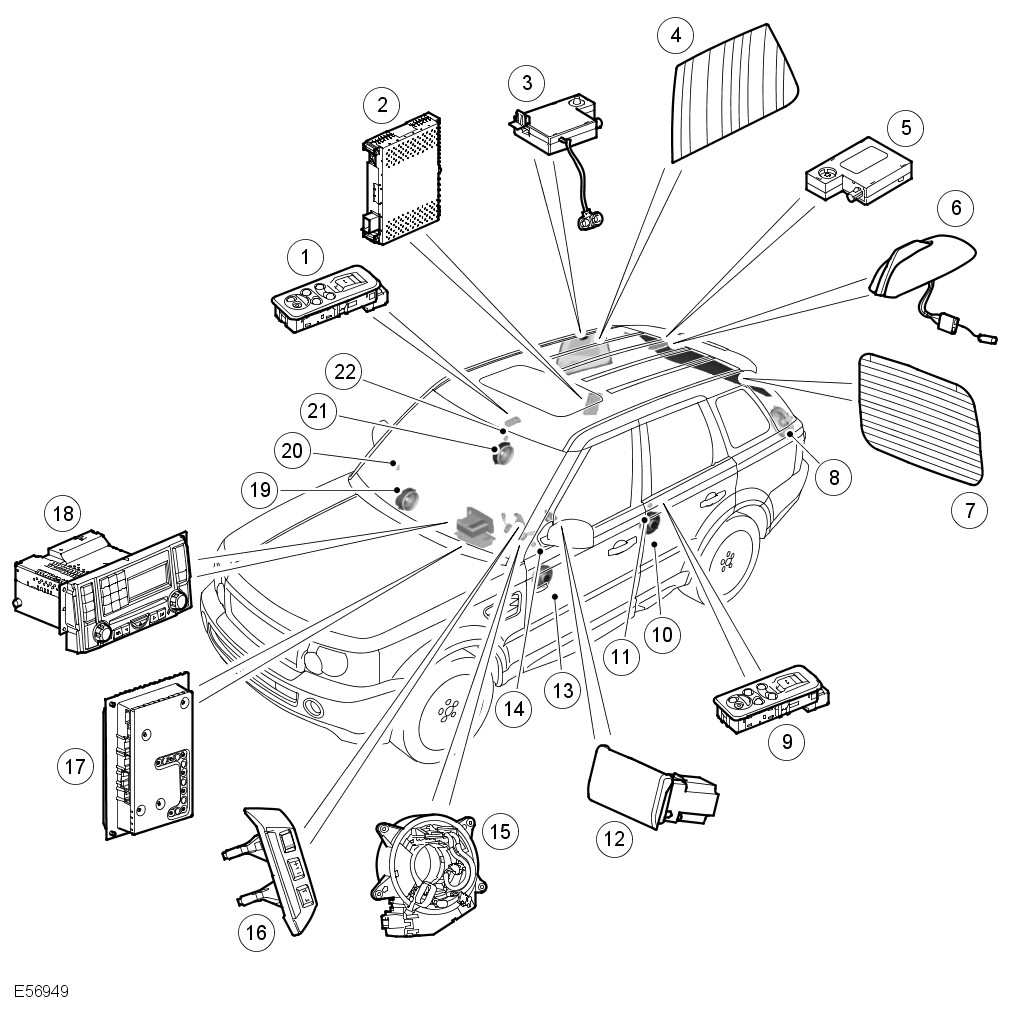

| Item | Description |
|---|---|
| 1 | Row two remote audio controls |
| 2 | SDARS tuner |
| 3 | Antenna amplifier |
| 4 | Side screen amplitude modulation (AM)/frequency modulation (FM) antenna |
| 5 | Diversity antenna amplifier |
| 6 | SDARS/ Telephone/global positioning system (GPS) antenna roof mounted pod |
| 7 | Rear screen antennas |
| 8 | Subwoofer |
| 9 | Row two audio remote controls |
| 10 | Mid range speaker |
| 11 | Tweeter |
| 12 | Audio Video Input/Output panel |
| 13 | Mid range speaker |
| 14 | Tweeter |
| 15 | Clock spring |
| 16 | Audio remote controls |
| 17 | Audio amplifier |
| 18 | Integrated Head Unit (IHU) |
| 19 | Mid range speaker |
| 20 | Tweeter |
| 21 | Mid range speaker |
| 22 | Tweeter |

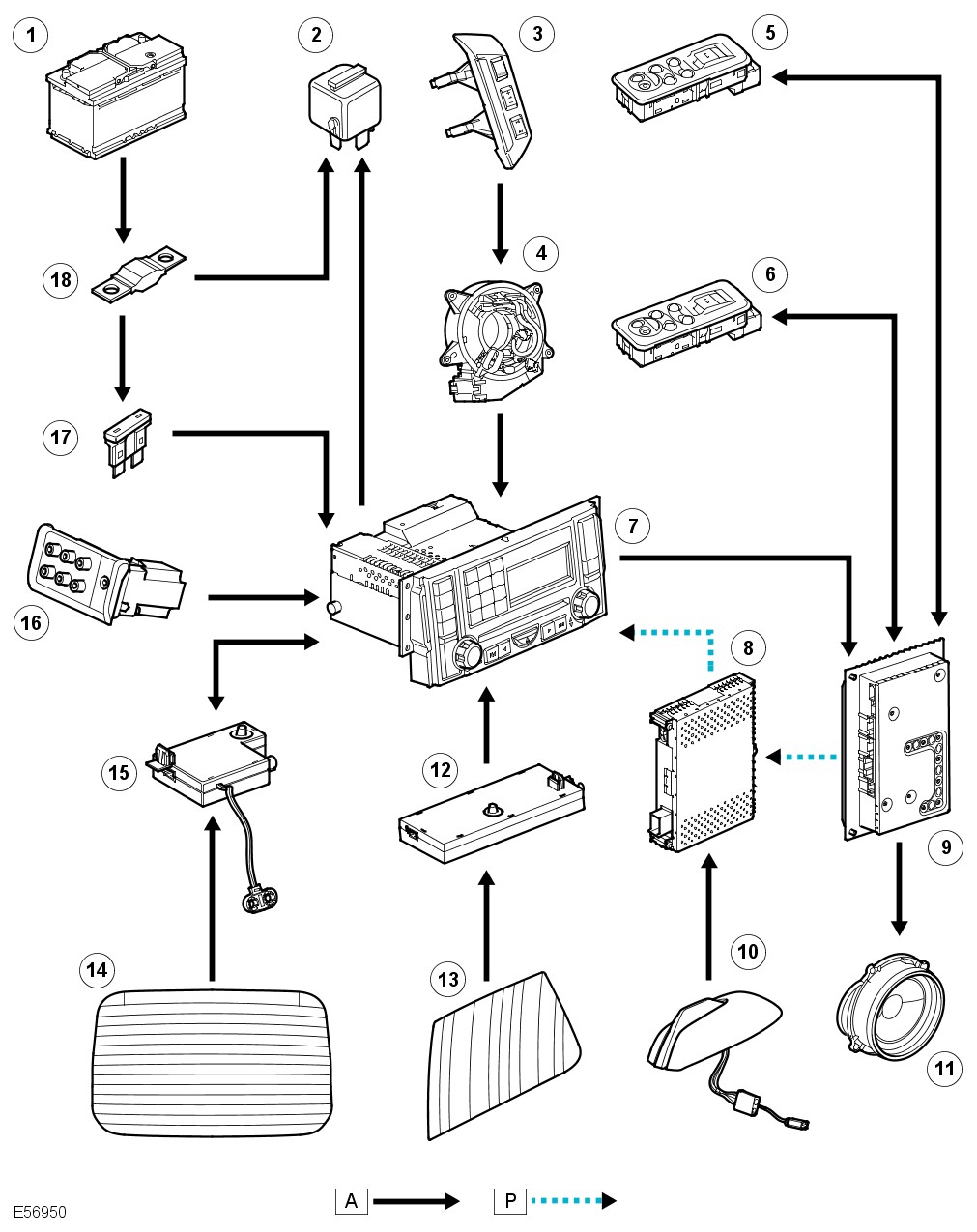

| Item | Description |
|---|---|
| 1 | Battery |
| 2 | Infotainment main relay |
| 3 | Audio remote controls |
| 4 | Clock spring |
| 5 | Row two audio remote controls |
| 6 | Row two audio remote controls |
| 7 | Integrated Head Unit (IHU) |
| 8 | SDARS tuner |
| 9 | Audio amplifier |
| 10 | SDARS/GPS/telephone antenna roof mounted pod |
| 11 | Speakers |
| 12 | Side screen antenna diversity amplifier |
| 13 | Side screen AM/FM antenna |
| 14 | Rear screen antennas |
| 15 | Rear screen antenna amplifier |
| 16 | Audio/video input/output panel (AVIO) |
| 17 | Fuse 53p |
| 18 | Fuseable link 18E |
| A | Hardwired |
| P | MOST |

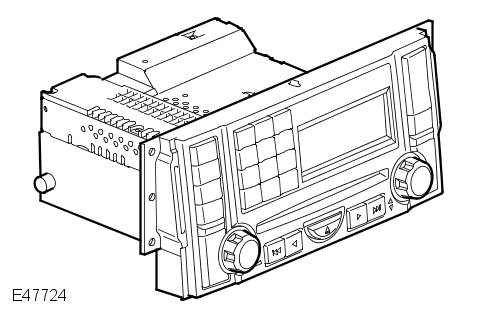

The base level audio system IHU comprises a single disc compact disc (CD) player and an integral amplifier, all other functions of the unit are comparable with the 6 disc unit.
The audio system is based around an Integrated Head Unit (IHU) which communicates on the Media Orientated System Transport (MOST) ring and the medium speed controller area network (CAN) bus.
The IHU contains the following functionality:
The IHU (Integrated Head Unit) unit also integrates with the navigation system, this requires the addition of a navigation computer, touch screen display and GPS antenna.
The IHU is woken up by CAN bus activity and is not woken up from the ignition aux position.
The IHU is the Bus Master for the MOST system and contains the timing master for the MOST system.
Connector C1354 Pinout Table For High Line Audio
| Pin No | Description | Input/Output |
|---|---|---|
| 1 | ground (GND) | - |
| 2 | Not used | - |
| 3 | Rear left-hand (LH) door speakers + | Output + |
| 4 | Rear LH door speakers - | Output - |
| 5 | Rear right-hand (RH) door speakers + | Output + |
| 6 | Rear RH door speakers - | Output - |
| 7 | Steering wheel switch ground | Output - |
| 8 | Infotainment relay switch | Output |
| 9 | CAN high | Input/Output |
| 10 | CAN low | Input/Output |
| 11 | battery positive voltage (B+) | Input |
| 12 | Antenna power | Output |
| 13 | Front LH door speakers - | Output - |
| 14 | Front LH door speakers + | Output + |
| 15 | Front RH door speakers + | Output + |
| 16 | Front RH door speakers - | Output - |
| 17 | Not used | - |
| 18 | Steering wheel switch reference voltage | Output |
| 19 | CAN high | Input/Output |
| 20 | CAN low | Input/Output |
Connector C2115 Pinout Table
| Pin No | Description | Input/Output |
|---|---|---|
| 1 | Not used | - |
| 2 | Not used | - |
| 3 | Phone + | Output + |
| 4 | Not used | - |
| 5 | Phone - | Output - |
| 6 | Aux Screen | - |
| 7 | Right aux Jack plug input | Input + |
| 8 | Left aux Jack plug input | Input + |
| 9 | Not used | - |
| 10 | Not used | - |
| 11 | Not used | - |
| 12 | Audio GND | - |
The IHU incorporates a AM/FM tuner which allows for 18 FMpre-sets and 18 AM (9 MW and 9 LW) pre-set stations to be stored in the IHU memory. The radio tuner also incorporates the following radio functions:
The CD player is a 6 disc in dash mounted device. The CD multi changer is capable of playing commercial CDs, CDRs, CDRWs and MP3 discs.
Random Play
The Random feature only works on the CD, which has been selected. The Random feature plays all the tracks on the selected CD in a random order. All the tracks on that disc will be played before a new random sequence is played. If a new CD is selected while in random mode, the random mode will be cancelled and play will commence from track 1.
Repeat
The Repeat feature allows the current track to be repeated in an endless loop, when selected by the user.
MP3
The CD player has the capability to play MP3 files. The MP3 discs follow a format of folders and files within the folder. It is also possible to place all the files in the root directory on the CD.
The random and repeat features follow the normal CD random and repeat feature functions.
Scan allows the user to play the first 10 seconds of each track on the CD in the unit.
The AVC feature is designed to adjust output volume to compensate for the rising level noise of the vehicle as the vehicle travels faster.
There are 10 settings for AVC, where 0 = off, 1 is the lowest setting (minimum volume change with speed and 9 the maximum).
The vehicle speed signal is used to enable the IHU to calculate the volume adjustment required. The vehicle speed signal is received over the CAN. The signal is an average of the four wheel speed sensor signals.
Control of the AVC is carried out by the audio amplifier.
Should an invalid speed signal be received the AVC will not alter the output volume.
The IHU contains the master clock functionality. The IHU contains and displays the clock in one unit. Other vehicle modules that require clock functionality use the time supplied from the IHU.
The clock is available to any control module that is connected to an interconnecting bus i.e. either of the CAN busses or the MOST ring.
The clock display configurable to show in AM / PM or 24 hour format. Midnight is shown as 12:00AM or 0:00 respectively. The default condition, if not specified, after power on or delivery, should default to 1:00PM or 13:00. Depending upon the market set the clock will default to either 12 or 24 hour format.
The time is adjusted from the IHU. Under conditions when any bus could be asleep or shut down, the HMI does not allow clock adjustments.

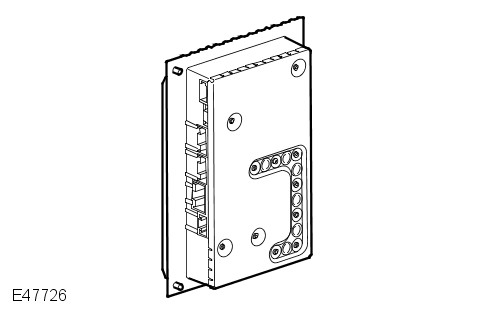

The audio system has three amplification options dependant on the audio system specified:
The amplifier is located under the RH front seat and is connected to the audio system via the MOST bus. Speaker connections are hardwired.
Speaker Connector C0491 for Harman Kardon Amplifier
| Pin No | Description | Input/Output |
|---|---|---|
| 1 | LH rear door speaker - | - |
| 2 | RH rear door speaker - | - |
| 3 | Not used | - |
| 4 | Not used | - |
| 5 | LH front door speaker - | - |
| 6 | RH front door speaker - | - |
| 7 | Subwoofer left - | - |
| 8 | Subwoofer right - | - |
| 9 | LH rear door speaker + | Output |
| 10 | RH rear door speaker + | Output |
| 11 | Not used | - |
| 12 | Not used | - |
| 13 | LH front door speaker + | Output |
| 14 | RH front door speaker + | Output |
| 15 | Subwoofer left + | Output |
| 16 | Subwoofer right + | Output |
Speaker Connector C0491 for Harman Kardon Logic 7 Amplifier
| Pin No | Description | Input/Output |
|---|---|---|
| 1 | LH rear door speaker - | - |
| 2 | RH rear door speaker - | - |
| 3 | LH front bass speaker - | - |
| 4 | RH front bass speaker - | - |
| 5 | Rear surround left - | - |
| 6 | Rear surround right - | - |
| 7 | Subwoofer left - | - |
| 8 | Subwoofer right - | - |
| 9 | LH rear door speaker + | Output |
| 10 | RH rear door speaker + | Output |
| 11 | LH front bass speaker + | Output |
| 12 | RH front bass speaker + | Output |
| 13 | Rear surround left + | Output |
| 14 | Rear surround right + | Output |
| 15 | Subwoofer left + | Output |
| 16 | Subwoofer right + | Output |
Speaker Connector C0492 for Harman Kardon Amplifier
| Pin No | Description | Input/Output |
|---|---|---|
| 1 | Not used | |
| 2 | Not used | |
| 3 | Not used | |
| 4 | Not used | |
| 5 | Headphone module 1 left channel | Output |
| 6 | Headphone module 1 right channel | Output |
| 7 | Headphone module 2 right channel | Output |
| 8 | Headphone module 2 left channel | Output |
| 9 | Not used | - |
| 10 | Not used | - |
| 11 | Not used | - |
| 12 | Not used | - |
| 13 | Not used | - |
| 14 | Not used | - |
| 15 | Headphone module 1 left ground | - |
| 16 | Headphone module 1 right ground | - |
| 17 | Headphone module 2 left ground | - |
| 18 | Headphone module 2 right ground | - |
| 19 | Not used | - |
| 20 | Not used | - |
Speaker Connector C0493 for Harman Kardon Amplifier
| Pin No | Description | Input/Output |
|---|---|---|
| 1 | Headphone module 3 left channel | Output |
| 2 | Headphone module 3 right channel | Output |
| 3 | Headphone module 4 left channel | Output |
| 4 | Headphone module 4 right channel | Output |
| 5 | Headphone module 1 control signal | Output |
| 6 | Headphone module 2 control signal | Output |
| 7 | Headphone module 3 control signal | Output |
| 8 | Headphone module 4 control signal | Output |
| 9 | Not used | - |
| 10 | Not used | - |
| 11 | Headphone module 3 left ground | - |
| 12 | Headphone module 3 right ground | - |
| 13 | Headphone module 4 left ground | - |
| 14 | Headphone module 4 right ground | - |
| 15 | Headphone module 1 control ground | - |
| 16 | Headphone module 2 control ground | - |
| 17 | Headphone module 3 control ground | - |
| 18 | Headphone module 4 control ground | - |
| 19 | Not used | - |
| 20 | Not used | - |
Speaker Connector C0492 for Harman Kardon Logic 7 Amplifier
| Pin No | Description | Input/Output |
|---|---|---|
| 1 | LH front mid/ high range speaker - | - |
| 2 | RH front mid/ high range speaker - | - |
| 3 | Center fill speaker - | - |
| 4 | Not used | - |
| 5 | Headphone module 1 left channel | Output |
| 6 | Headphone module 1 right channel | Output |
| 7 | Headphone module 2 left channel | Output |
| 8 | Headphone module 2 right channel | Output |
| 9 | Not used | - |
| 10 | Not used | - |
| 11 | LH front mid/ high range speaker + | Output |
| 12 | RH front mid/ high range speaker + | Output |
| 13 | Center fill speaker + | Output |
| 14 | Not used | - |
| 15 | Headphone module 1 left channel ground | - |
| 16 | Headphone module 1 right ground | - |
| 17 | Headphone module 2 left ground | - |
| 18 | Headphone module 2 right ground | - |
| 19 | Not used | - |
| 20 | Not used | - |
Speaker Connector C0493 for Harman Kardon Logic 7 Amplifier
| Pin No | Description | Input/Output |
|---|---|---|
| 1 | Headphone module 3 left channel | Output |
| 2 | Headphone module 3 right channel | Output |
| 3 | Headphone module 4 left channel | Output |
| 4 | Headphone module 4 right channel | Output |
| 5 | Headphone module 1 control signal | Output |
| 6 | Headphone module 2 control signal | Output |
| 7 | Headphone module 3 control signal | Output |
| 8 | Headphone module 4 control signal | Output |
| 9 | Not used | - |
| 10 | Not used | - |
| 11 | Headphone module 3 left channel ground | - |
| 12 | Headphone module 3 right channel ground | - |
| 13 | Headphone module 4 left channel ground | - |
| 14 | Headphone module 4 right channel | - |
| 15 | Headphone module 1 control ground | - |
| 16 | Headphone module 2 control ground | - |
| 17 | Headphone module 3 control ground | - |
| 18 | Headphone module 4 control ground | - |
| 19 | Not used | - |
| 20 | Not used | - |

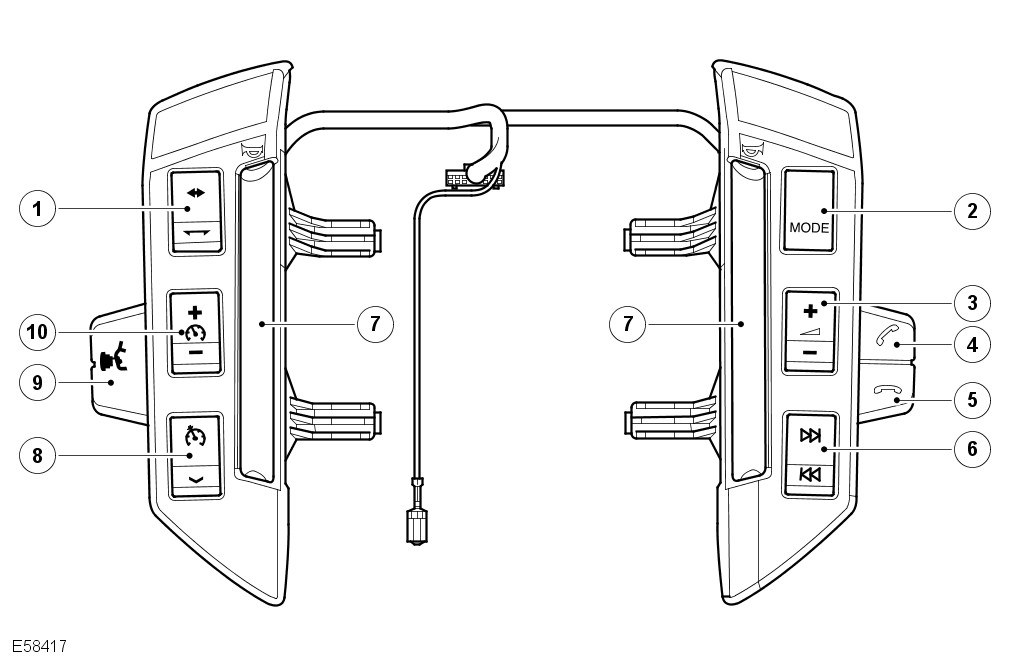

| Item | Description |
|---|---|
| 1 | Adaptive speed control gap adjustment switches |
| 2 | Audio mode change switch |
| 3 | Audio volume control |
| 4 | Send key |
| 5 | End key |
| 6 | Audio system up/down |
| 7 | Horn |
| 8 | Speed control ON/OFF/ set speed |
| 9 | Push to talk voice recognition switch |
| 10 | Speed control set speed adjust |
The IHU can be remotely controlled via steering wheel mounted controls. The audio steering wheel controls are mounted to the RH side of the steering wheel with the voice recognition system control (push to talk switch) located on the LH side of the steering wheel behind the speed control switches.
The Steering wheel control switches allow the driver to:
The switches operate on a resistive ladder principle. A voltage is supplied to the switches and dependant upon which button is pressed a reduced voltage is returned to the head unit.
The SDARS systems operate in the S-Band frequency range (2.3 GHz) and, as a result of the use of satellite transmission have the ability to provide CD quality audio broadcasts over very large areas (typically continents). SDARS service providers transmit a signal from their up-link facility (which is the original point of transmission of data, voice or other information through an antenna system) to a satellite where the signal is then down linked to both the terrestrial repeater network and the individual SDARS car radios. The radio switches between the satellite signal and the repeater signal depending on the strength of the signal at any given time.
Land Rover will be using the Sirius Satellite Radio service provider in the USA.
The Sirius SDARS systems comprise:
The Sirius SDARS system uses three satellites on an inclined elliptical orbit. This ensures that each satellite spends approximately 16 hours a day over the continent of the USA, with at least one satellite over the country at any one time.
The satellites beam their signals down to the ground where the signal is picked up by receivers or is transmitted to repeater stations to cover built up areas where the signal is obscured.
The TMC system is a European only system whereby traffic information is received by the TMC tuner and used by the navigation computer to recalculate the route being used to avoid the traffic disruption. This system information is broadcast on the RDS data carriers.
The information is used by the navigation system to avoid traffic disruptions on a planned routeFor additional information, refer to: Navigation System (419-07 Navigation System, Description and Operation)..
