Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-14

Handles, Locks, Latches and Entry Systems

Tailgate Latch (G421007)

REMOVAL AND INSTALLATION
  • 76.37.19
  • Latch - liftgate - renew
  • All Derivatives
  • 0.50
  • USED WITHINS
Removal
  1. Remove the subwoofer. For additional information, refer to: Subwoofer Speaker (415-03 Speakers, Removal and Installation).
  2. Release the liftgate latch.
      • Remove the 3 Torx screws.

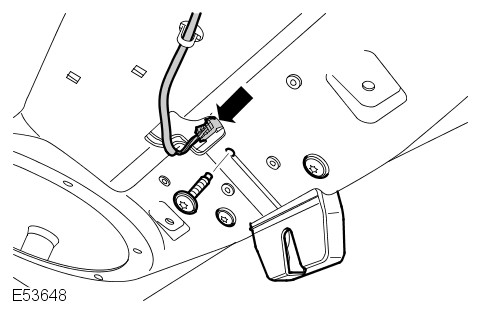

  3. E53648
    Remove the liftgate latch.
      • Disconnect the electrical connector.
Installation
  1. Install the liftgate latch.
      • Connect the electrical connector.
      • Tighten the Torx screws to 10 Nm (7 lb.ft).
  2. Install the subwoofer. For additional information, refer to: Subwoofer Speaker (415-03 Speakers, Removal and Installation).
  3. Adjust the liftgate striker. For additional information, refer to: Tailgate Striker Adjustment (501-14 Handles, Locks, Latches and Entry Systems, General Procedures).
