Published: 11-May-2011

2007.0 Range Rover Sport (LS), 206-06

Hydraulic Brake Actuation

Brake Pedal (G419563)

REMOVAL AND INSTALLATION
  • 70.35.01
  • Brake Pedal - Renew
  • All Derivatives
  • 0.50
  • USED WITHINS
Removal
  1. Remove the headlamp switch. For additional information, refer to: Headlamp Switch (417-01 Exterior Lighting, Removal and Installation).
  2. Remove the stoplamp switch. For additional information, refer to: Stoplamp Switch (417-01 Exterior Lighting, Removal and Installation).
  3. E51369
    Remove the instrument panel access panel.
      • Release the 2 clips.
  4. E52543
    Remove the brake pedal bracket.
      • Release the wiring harness clip.
      • Remove the 4 Torx bolts.
  5. E52544
    Remove the brake pedal clevis pin.
      • Remove the clip.

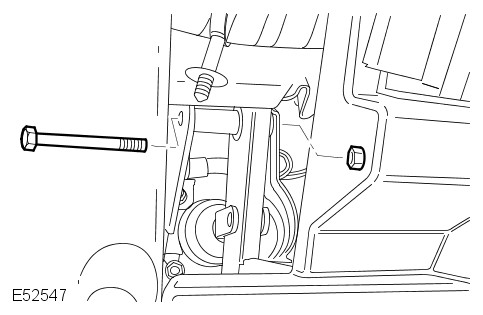

  6. E52547
    Remove the brake pedal.
      • Remove the nut and bolt.
  7. NOTE:

    Do not disassemble further if the component is removed for access only.

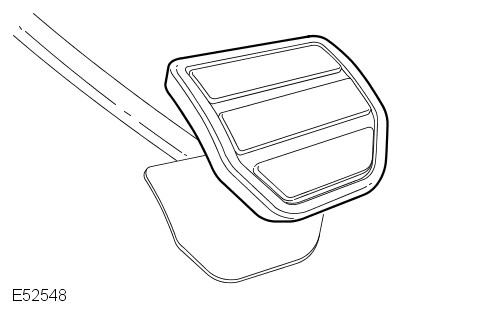

    E52548
    Remove the brake pedal pad.
Installation
  1. Install the brake pedal pad.
  2. Install the brake pedal.
      • Clean the component mating faces.
      • Tighten the nut and bolt to 45 Nm (33 lb.ft).
  3. Install the brake pedal clevis pin.
      • Install the clip.
  4. Install the brake pedal bracket.
      • Tighten the Torx bolts to 10 Nm (7 lb.ft).
      • Secure the wiring harness.
  5. Install the instrument panel access panel.
      • Secure with the clips.
  6. Install the stoplamp switch. For additional information, refer to: Stoplamp Switch (417-01 Exterior Lighting, Removal and Installation).
  7. Install the headlamp switch. For additional information, refer to: Headlamp Switch (417-01 Exterior Lighting, Removal and Installation).
