Published: 11-May-2011

2007.0 Range Rover Sport (LS), 417-01

Exterior Lighting

Stoplamp Switch (G426307)

REMOVAL AND INSTALLATION
  • 70.35.42
  • Switch - stop light - renew
  • All Derivatives
  • 0.10
  • USED WITHINS
Removal
  1. E47923
    Remove the closing trim panel.
      • Release the clip.
      • Remove the 2 screws.
      • Disconnect the electrical connector.
  2. CAUTION:

    The brake pedal MUST NOT be depressed during this operation. Failure to comply will result in damage to the stoplamp switch.

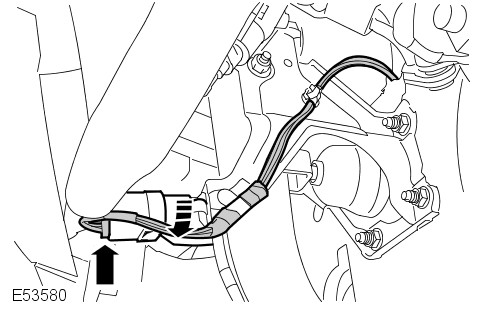

    E53580
    Remove the stoplamp switch.
      • Disconnect the electrical connector.
      • Rotate the switch clockwise.
Installation
  1. CAUTIONS:

    • The brake pedal MUST NOT be depressed during this operation. Failure to comply will result in damage to the stoplamp switch.

    • Make sure that excessive force is not used when installing the stoplamp switch. Failure to follow this instruction may result in damage to the stoplamp switch.

    Install the stoplamp switch.
      • Rotate the switch counterclockwise.
      • Connect the electrical connector.
  2. Install the closing trim panel.
      • Connect the electrical connector.
      • Secure the clip.
      • Tighten the screws.
