Published: 11-May-2011

2007.0 Range Rover Sport (LS), 206-06

Hydraulic Brake Actuation

Brake Pedal and Bracket (G419562)

REMOVAL AND INSTALLATION
  • 70.35.03
  • Pedal box - renew
  • All Derivatives
  • 0.80
  • USED WITHINS
  • 70.35.01
  • Brake Pedal - Renew
  • All Derivatives
  • 0.50
  • USED WITHINS
Removal
  1. Remove the headlamp switch. For additional information, refer to: Headlamp Switch (417-01 Exterior Lighting, Removal and Installation).
  2. Remove the stoplamp switch. For additional information, refer to: Stoplamp Switch (417-01 Exterior Lighting, Removal and Installation).

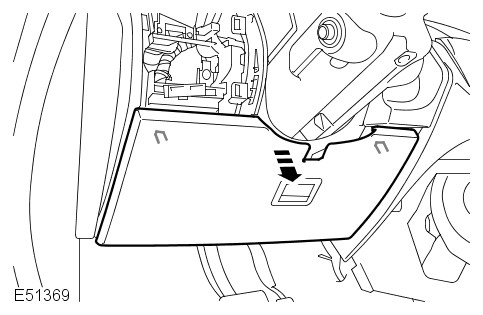

  3. E51369
    Remove the instrument panel access panel.
      • Release the 2 clips.

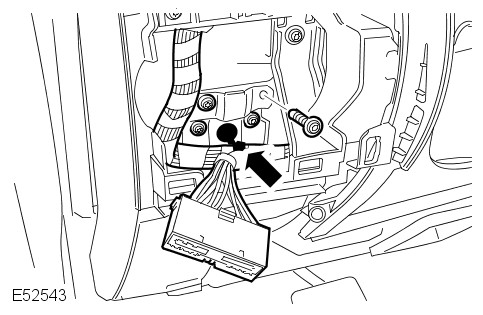

  4. E52543
    Remove the brake pedal bracket.
      • Release the wiring harness clip.
      • Remove the 4 Torx bolts.

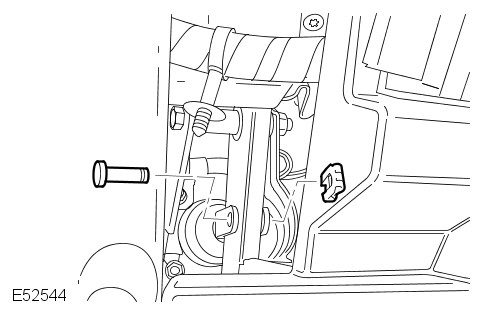

  5. E52544
    Remove the brake pedal clevis pin.
      • Remove the clip.

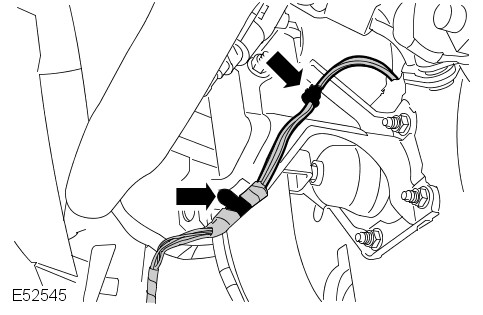

  6. E52545
    Release the stoplamp wiring harness.
      • Release the 2 clips.

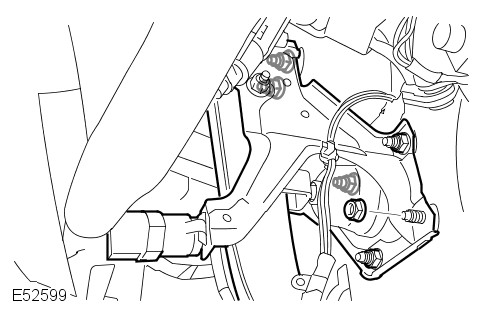

  7. E52599
    Remove the brake pedal assembly.
      • Remove the 6 nuts.
      • Position the brake booster forward to aid the removal of the brake pedal assembly.
Installation
  1. Install the brake pedal assembly.
      • Position the brake booster to the brake pedal bracket.
      • Tighten the nuts to 25 Nm (18 lb.ft).
  2. Secure the wiring harness.
      • Secure the clips.
  3. Install the brake pedal clevis pin.
      • Install the clip.
  4. Install the brake pedal bracket.
      • Tighten the Torx bolt to 10 Nm (7 lb.ft).
      • Secure the wiring harness.
  5. Install the instrument panel access panel.
      • Secure with the clips.
  6. Install the stoplamp switch. For additional information, refer to: Stoplamp Switch (417-01 Exterior Lighting, Removal and Installation).
  7. Install the headlamp switch. For additional information, refer to: Headlamp Switch (417-01 Exterior Lighting, Removal and Installation).
