Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-12

Instrument Panel and Console

Instrument Panel Passenger Side Reinforcement (G414336)

REMOVAL AND INSTALLATION
  • 76.46.32
  • Panel - instrument - passenger's side section - renew
  • All Derivatives
  • 2.70
  • USED WITHINS
Removal
  1. Remove the instrument panel center reinforcement. For additional information, refer to: Instrument Panel Center Reinforcement (501-12 Instrument Panel and Console, Removal and Installation).
  2. Remove the glove compartment. For additional information, refer to: Glove Compartment (501-12 Instrument Panel and Console, Removal and Installation).
  3. E47530
    Remove the passenger side closing trim panel.
      • Release the clip.
      • Remove the 2 screws.
      • Disconnect the electrical connector.

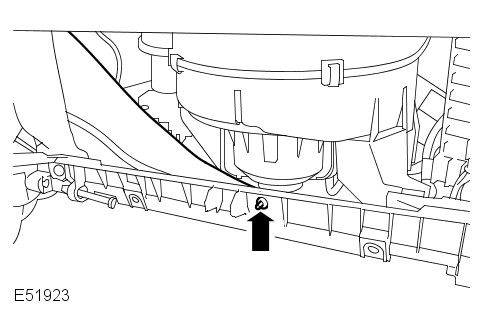

  4. E51923
    Remove the passenger side footwell duct.
      • Remove the clip.

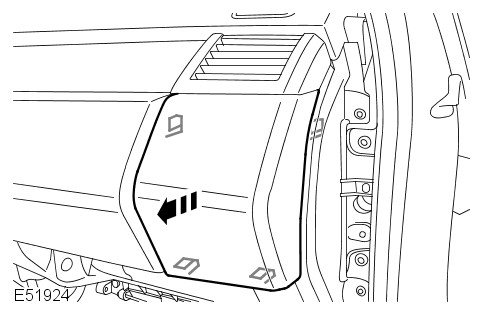

  5. E51924
    Remove the stowage compartment side trim panel.
      • Release the 4 clips.

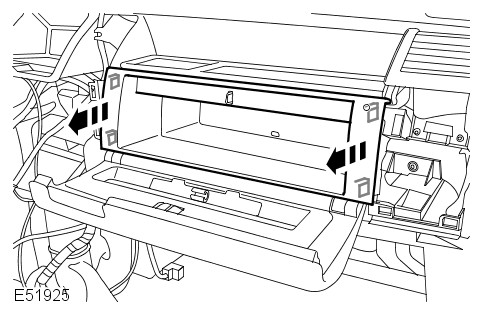

  6. E51925
    Remove the stowage compartment tray.
      • Open the stowage compartment lid.
      • Release the 4 clips.

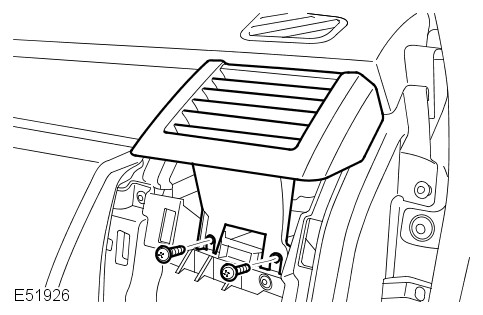

  7. E51926
    Remove the passenger side face level vent.
      • Remove the 2 Torx screws.

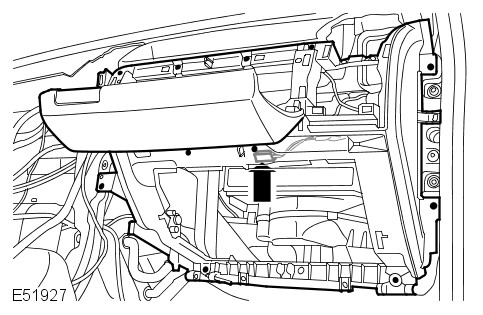

  8. E51927
    Remove the instrument panel passenger side reinforcement.
      • Remove the 11 Torx screws.
      • Disconnect the electrical connector.
  9. NOTE:

    Do not disassemble further if the component is removed for access only.

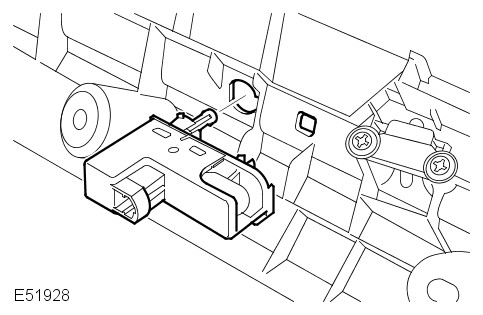

    E51928
    Remove the glove compartment lamp.

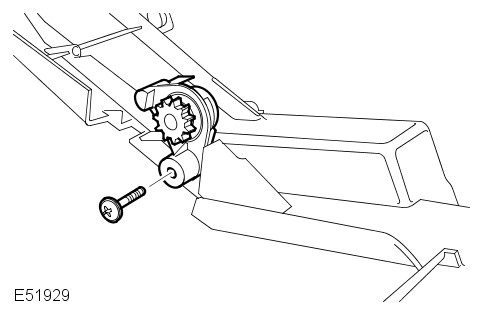

  10. E51929
    Remove the glove compartment damper.
      • Remove the Torx screw.
  11. NOTE:

    Note the position of the hinge pin and spring prior to removal.

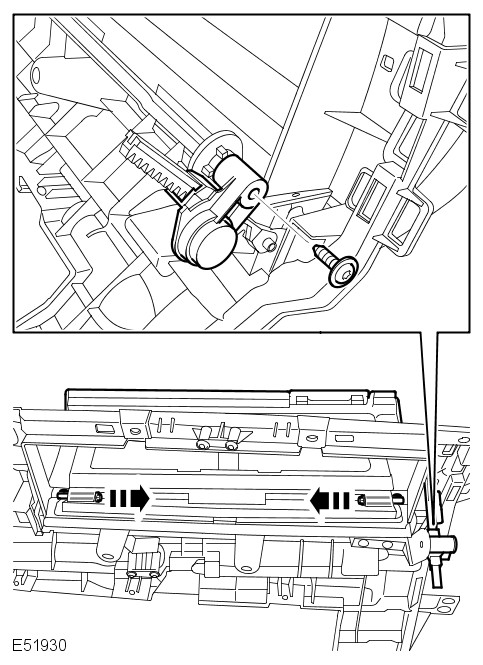

    E51930
    Remove the stowage compartment lid.
      • Remove the 2 hinge pins.
      • Release the 2 hinge springs.
      • Remove the Torx screw and remove the damper.

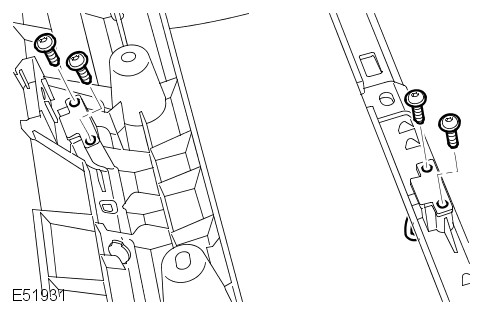

  12. E51931
    Remove the glove and stowage compartment strikers.
      • Remove the 4 Torx screws.
Installation
  1. Install the glove compartment damper.
      • Tighten the Torx screw.
  2. Install the stowage compartment lid.
      • Install the damper and tighten the Torx screw.
      • Attach the hinge springs.
      • Install the hinge springs.
  3. Install the glove and stowage compartment strikers.
      • Tighten the screws.
  4. Install the glove compartment lamp.
  5. Install the instrument panel passenger side reinforcement.
      • Connect the electrical connector.
      • Tighten the Torx screws.
  6. Install the face level vent.
      • Tighten the Torx screws.
  7. Install the stowage compartment tray.
      • Secure the clips.
      • Close the stowage compartment lid.
  8. Install the stowage compartment side trim panel.
      • Secure the clips.
  9. Install the passenger side footwell duct.
      • Install the clip.
  10. Install the passenger side closing trim panel.
      • Install the interior lamp.
      • Connect the electrical connector.
      • Secure the clip.
  11. Install the glove compartment. For additional information, refer to: Glove Compartment (501-12 Instrument Panel and Console, Removal and Installation).
  12. Install the instrument panel center reinforcement. For additional information, refer to: Instrument Panel Center Reinforcement (501-12 Instrument Panel and Console, Removal and Installation).
