2007.0 Range Rover Sport (LS), 501-12

Instrument Panel and Console

Glove Compartment (G301645)

REMOVAL AND INSTALLATION
  • 76.52.03
  • Glove Box - Renew
  • All Derivatives
  • 0.30
  • USED WITHINS

Special Tool(s)

E54897

501-113

Glove compartment hinge pin remover

Removal
  1. Remove the cowl side trim panel. For additional information, refer to: Cowl Side Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  2. E47530
    Remove the closing trim panel.
      • Release the clip.
      • Remove the 2 screws.
      • Disconnect the electrical connector.

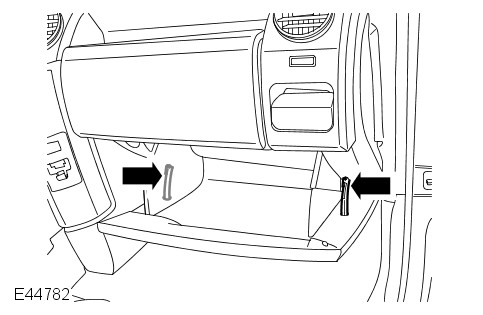

  3. E44782
    Open the glove compartment to the service condition.
      • Release the glove compartment latch stops.
  4. CAUTION:

    If the hinge pin will not release, rotate the pin through 90 degrees to aid removal.

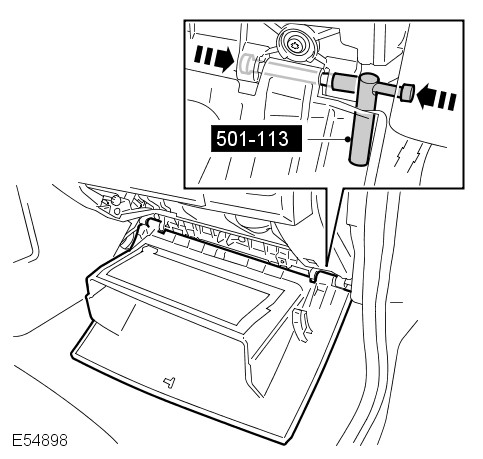

    E54898
    Using the special tool, remove the glove compartment.
      • Apply pressure to the head of the hinge pin and install the special tool. Remove the hinge pin.
      • Repeat the above procedure for the remaining hinge pin.
Installation
  1. Install the glove compartment.
      • Install the hinge pins.
  2. Close the glove compartment.
      • Secure the latch stops.
  3. Install the closing trim panel.
      • Connect the electrical connector.
      • Secure the clip.
      • Tighten the screws.
  4. Install the cowl side trim panel. For additional information, refer to: Cowl Side Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
