Published: 11-May-2011

2007.0 Range Rover Sport (LS), 415-01

Audio Unit (G413335)

REMOVAL AND INSTALLATION
Removal
CAUTION:

A new audio unit is supplied with a transit plate installed. The transit plate must be removed, before installing the audio unit.

  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the floor console upper panel. For additional information, refer to: Floor Console Upper Panel (501-12 Instrument Panel and Console, Removal and Installation).
  3. Remove the instrument panel console switch pack. For additional information, refer to: Instrument Panel Console Switch Assembly (501-12 Instrument Panel and Console, Removal and Installation).

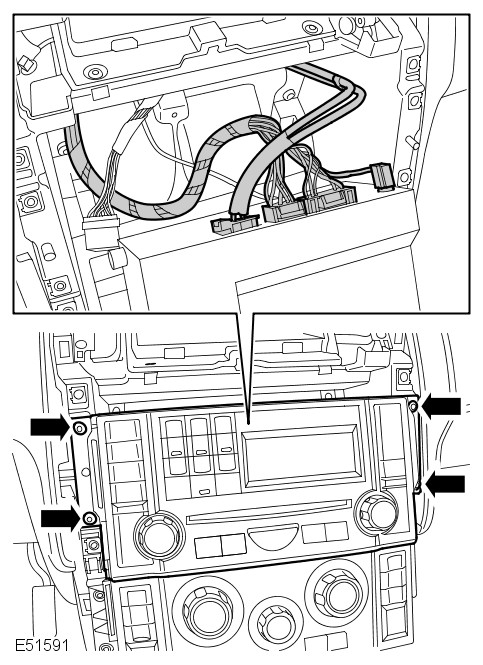

  4. E51591
    Remove the audio unit.
      • Remove the 4 Torx screws.
      • Disconnect the 2 electrical connectors.
      • Disconnect the fibre optic connector.
      • Disconnect the antenna cable.
Installation
  1. CAUTION:

    A new audio unit is supplied with a transit plate installed. The transit plate must be removed, before installing the audio unit.

    NOTE:

    This unit does not require configuring using diagnostic equipment.

    Install the audio unit.
      • Attach the antenna cable.
      • Connect the fibre optic connector.
      • Connect the electrical connectors.
      • Tighten the Torx screws.
  2. Install the instrument panel console switch assembly. For additional information, refer to: Instrument Panel Console Switch Assembly (501-12 Instrument Panel and Console, Removal and Installation).
  3. Install the floor console upper panel. For additional information, refer to: Floor Console Upper Panel (501-12 Instrument Panel and Console, Removal and Installation).
  4. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
