2007.0 Range Rover Sport (LS), 501-12

Instrument Panel and Console

Instrument Panel Console Switch Assembly (G413339)

REMOVAL AND INSTALLATION
  • 86.65.17
  • Switch assembly - instrument panel - console - renew
  • All Derivatives
  • 0.10
  • USED WITHINS
Removal
  1. E51592
    Remove the audio unit side trim panels.
      • Release the 4 clips.

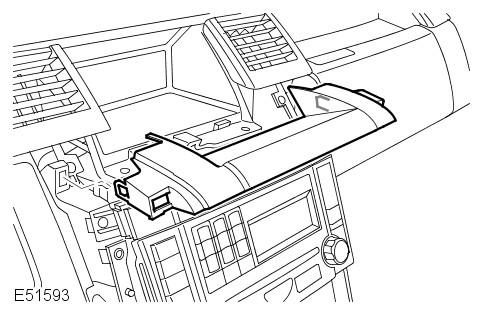

  2. E51593
    Remove the audio unit upper trim panel.
      • Release the 2 clips.

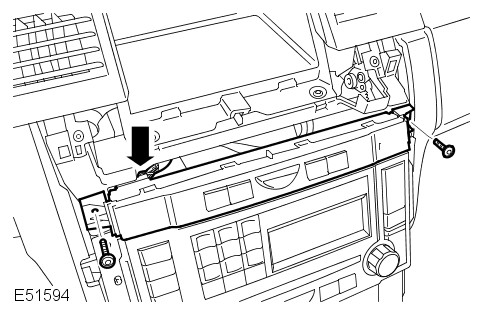

  3. E51594
    Remove the instrument panel console switch assembly.
      • Remove the 2 Torx screws.
      • Disconnect the electrical connector.
Installation
  1. Install the instrument panel console switch assembly.
      • Connect the electrical connector.
      • Tighten the 2 screws.
  2. Install the audio unit upper trim panel.
      • Secure the clips.
  3. Install the audio unit side trim panels.
      • Secure the clips.
