2007.0 Range Rover Sport (LS), 501-12

Instrument Panel and Console

Floor Console Upper Panel (G413337)

REMOVAL AND INSTALLATION
  • 76.25.11
  • Console assembly - front - upper section - renew
  • All Derivatives
  • 0.30
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the ride and handling optimization switch. For additional information, refer to: Ride and Handling Optimization Switch (204-06 Ride and Handling Optimization, Removal and Installation).
  3. E51592
    Remove the audio unit side trim panels.
      • Release the 6 clips.

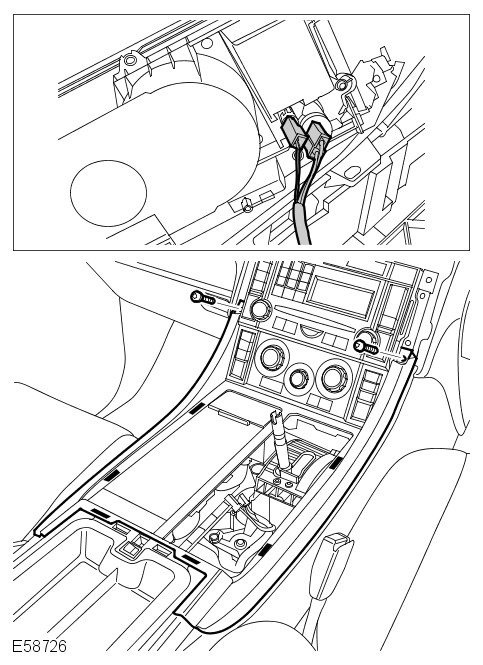

  4. E58726
    Remove the floor console upper panel.
      • Open the cubby box lid.
      • Remove the 3 screws.
      • Release the 6 clips.
      • Release and disconnect the electrical connector.
Installation
  1. Install the floor console upper panel.
      • Connect the electrical connectors.
      • Secure the clips.
      • Tighten the screws.
  2. Install the audio unit side trim panels.
      • Secure the clips.
  3. Install the ride and handling optimization switch. For additional information, refer to: Ride and Handling Optimization Switch (204-06 Ride and Handling Optimization, Removal and Installation).
  4. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
