2007.0 Range Rover Sport (LS), 204-06

Ride and Handling Optimization

Ride and Handling Optimization Switch (G472248)

REMOVAL AND INSTALLATION
  • 86.65.11
  • Switch - terrain optimisation - renew
  • All Derivatives
  • 0.20
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the selector lever knob. For additional information, refer to: Selector Lever Knob (307-05C Automatic Transmission/Transaxle External Controls - TDV6 2.7L Diesel, Removal and Installation).

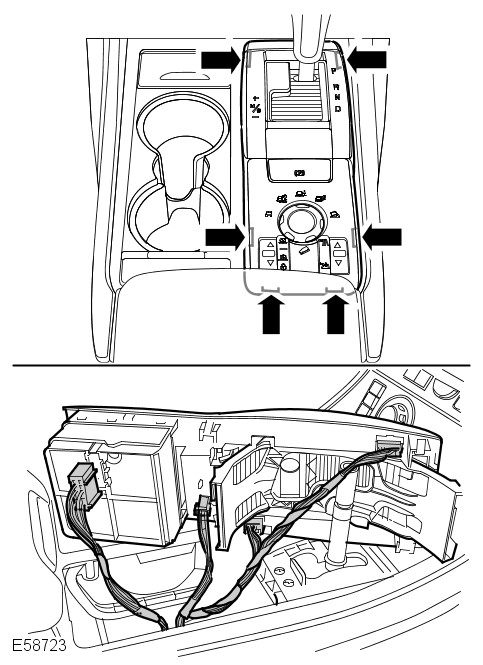

  3. E58723
    Remove the ride and handling optimization switch.
      • Release the 6 clips.
      • Disconnect the 4 electrical connectors.
  4. NOTE:

    Do not disassemble further if the component is removed for access only.

    Remove the screw cover.
      • Release the clip.

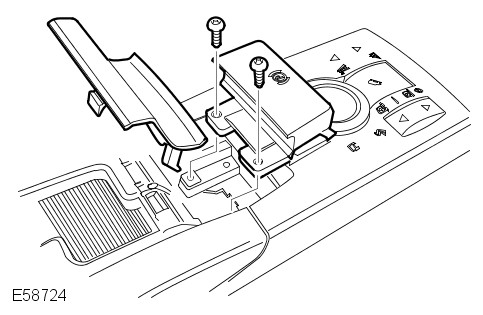

  5. E58724
    Remove the parking brake switch.
      • Remove the 2 screws.

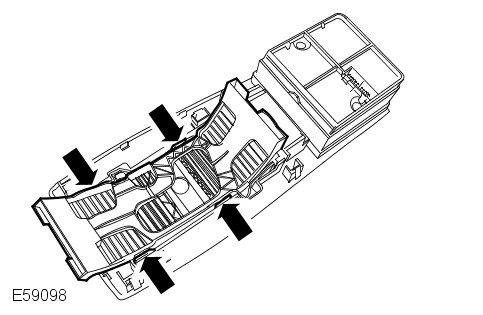

  6. E59098
    Remove the selector lever panel.
      • Release the 4 clips.
Installation
  1. Install the selector lever panel.
      • Secure the clips.
  2. Install the parking brake switch.
      • Tighten the screws.
  3. Install the screw cover.
  4. Install the ride and handling optimization switch.
      • Connect the electrical connectors.
      • Secure the clips.
  5. Install the selector lever knob. For additional information, refer to: Selector Lever Knob (307-05C Automatic Transmission/Transaxle External Controls - TDV6 2.7L Diesel, Removal and Installation).
  6. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
