2007.0 Range Rover Sport (LS), 413-01

Instrument Cluster (G413290)

REMOVAL AND INSTALLATION
  • 80.20.01.99
  • Heater Unit - Remove for Access and Refit
  • TDV8
  • 7.50
  • USED WITHINS
  • 88.20.01
  • Instrument panel - renew
  • All Derivatives
  • 0.90
  • USED WITHINS
Removal
  1. Fully extend the steering column for access.
  2. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  3. Remove the steering wheel. For additional information, refer to: Steering Wheel (211-04 Steering Column and Steering Wheel, Removal and Installation).
  4. Remove the headlamp switch trim panel. For additional information, refer to: Headlamp Switch (417-01 Exterior Lighting, Removal and Installation).
  5. E51369
    Remove the instrument panel access panel.
      • Release the 2 clips.
  6. E46958
    Remove the steering column upper shroud.
      • Release the 6 clips.
  7. E50852
    Remove the steering column lower shroud.
      • Remove the 3 Torx screws.
      • Disconnect the electrical connector.
  8. E51370
    Remove the steering column side trim panel.
      • Release the 4 clips.
  9. E47072
    Disconnect the 2 electrical connectors from the steering column multifunction switches.
  10. E47073
    Disconnect the 2 electrical connectors from the clockspring.
  11. E47080
    Remove the steering column switch assembly.
      • Remove the 4 Torx bolts.
  12. E47118
    Remove the steering column gaiter panel.
      • Remove the 2 Torx screws.
      • Release the 2 clips.

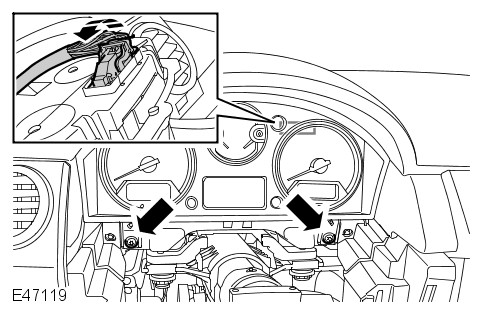

  13. E47119
    Remove the instrument cluster.
      • Remove the 2 Torx screws.
      • Disconnect the electrical connector.
Installation
  1. Install the instrument cluster.
      • Connect the electrical connector.
      • Tighten the Torx screws.
  2. Install the steering column gaiter panel.
      • Secure with the clips.
      • Tighten the Torx screws.
  3. Install the steering column switch assembly.
      • Tighten the Torx bolts to 3 Nm (2 lb.ft).
  4. Connect the clockspring and multifunction switch electrical connectors.
  5. Install the steering column side trim panel.
      • Secure with the clips.
  6. Install the steering column shrouds.
      • Connect the electrical connector.
      • Tighten the Torx screws.
      • Secure the clips.
  7. Install the instrument panel access panel.
      • Secure with the clips.
  8. Install the headlamp switch trim panel. For additional information, refer to: Headlamp Switch (417-01 Exterior Lighting, Removal and Installation).
  9. Install the steering wheel. For additional information, refer to: Steering Wheel (211-04 Steering Column and Steering Wheel, Removal and Installation).
  10. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
