Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-14

Handles, Locks, Latches and Entry Systems

Rear Door Latch (G301687)

REMOVAL AND INSTALLATION
  • 76.37.07
  • Latch - rear door - left - renew
  • All Derivatives
  • 0.90
  • USED WITHINS
  • 76.37.13
  • Latch - rear door - right - renew
  • All Derivatives
  • 0.90
  • USED WITHINS
Removal
  1. Remove the rear door window motor and regulator assembly. For additional information, refer to: Rear Door Window Regulator and Motor (501-11 Glass, Frames and Mechanisms, Removal and Installation).
  2. CAUTION:

    Release the exterior door handle and screw cover clips from inside the door.

    Remove the rear door exterior handle. For additional information, refer to: Exterior Rear Door Handle (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).
  3. Release the remote control cable.
      • Release the grommet.
  4. Release the door exterior handle mechanism.
      • Remove the 2 Torx screws.
      • Remove the locking pin.

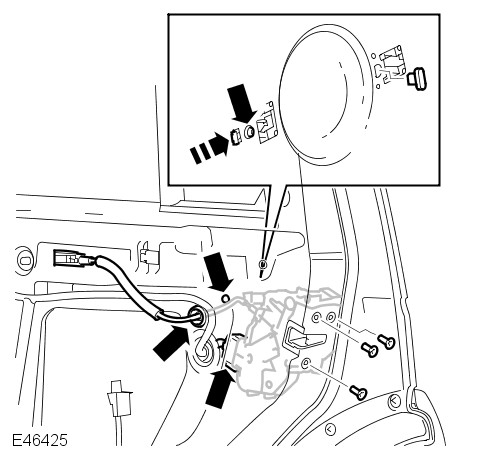

  5. E46425
    Remove the rear door latch assembly.
      • Disconnect the electrical connector.
      • Remove the 3 Torx screws.
  6. NOTE:

    Do not disassemble further if the component is removed for access only.

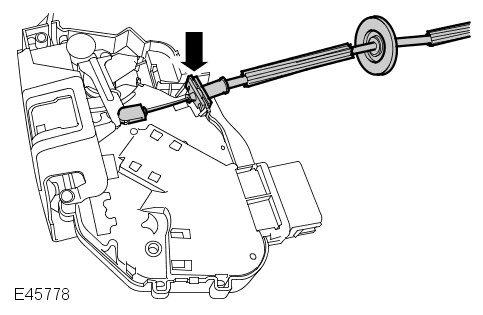

    E45778
    Remove the door latch remote control cable.
      • Release the cable from the abutment bracket.
      • Remove the cable from the lever.

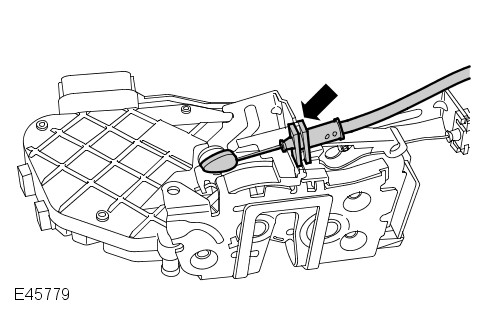

  7. E45779
    Release the exterior door handle mechanism cable from the door latch.
      • Release the cable from the abutment bracket.
      • Remove the cable from the lever.
Installation
  1. Connect the door exterior handle mechanism cable to the door latch.
      • Connect the cable to the lever.
      • Secure the cable to the abutment bracket.
  2. Install the remote control cable to the door latch.
      • Connect the cable to the lever.
      • Secure the cable to the abutment bracket.

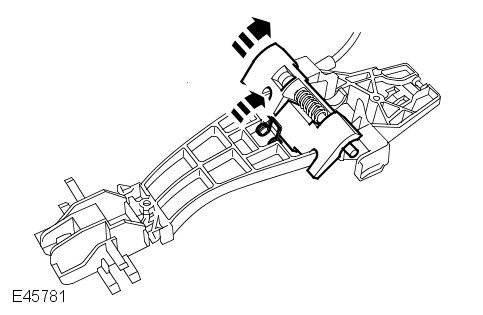

  3. E45781
    Set the exterior handle mechanism.
      • Rotate the lever.
      • Engage the retaining tang.
  4. Install the rear door latch assembly.
      • Tighten the Torx screws to 10 Nm (7 lb.ft).
      • Connect the electrical connector.
  5. Install the door exterior handle mechanism.
      • Position the mechanism to the door.
      • Fit the locking pin.
      • Install and tighten the Torx screws.
  6. Position the remote control cable to the door.
      • Install the grommet.
  7. Install the rear door exterior handle. For additional information, refer to: Exterior Rear Door Handle (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).
  8. Install the rear door window motor and regulator assembly. For additional information, refer to: Rear Door Window Regulator and Motor (501-11 Glass, Frames and Mechanisms, Removal and Installation).
