2007.0 Range Rover Sport (LS), 501-11

Glass, Frames and Mechanisms

Rear Door Window Regulator and Motor (G455428)

REMOVAL AND INSTALLATION
  • 86.25.05
  • Motor & regulator - rear door - renew
  • All Derivatives
  • 0.60
  • USED WITHINS

Special Tool(s)

E54200

501-114

Door glass release lever

Removal
NOTE:

The door glass should be lowered by approximately one third.

  1. Remove the rear door speaker. For additional information, refer to: Rear Door Speaker (415-03 Speakers, Removal and Installation).

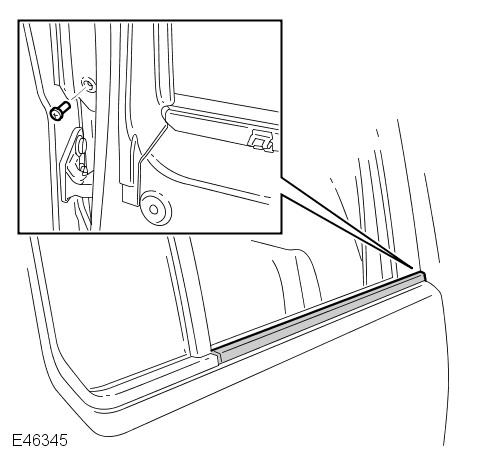

  2. E46345
    Carefully remove the outer waist seal.
      • Remove the screw.
  3. NOTE:

    Wedge the glass in this position.

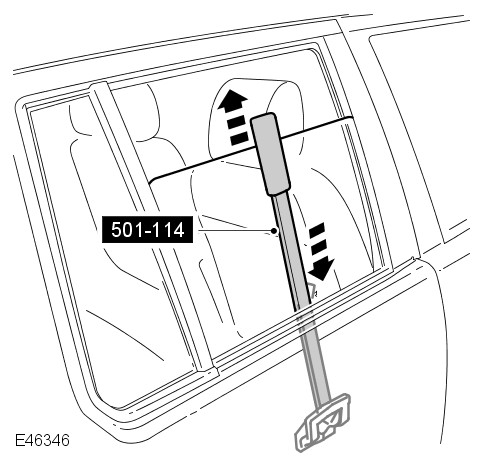

    E46346
    Using the special tool, release the clip and lift the glass to the top of the door frame.

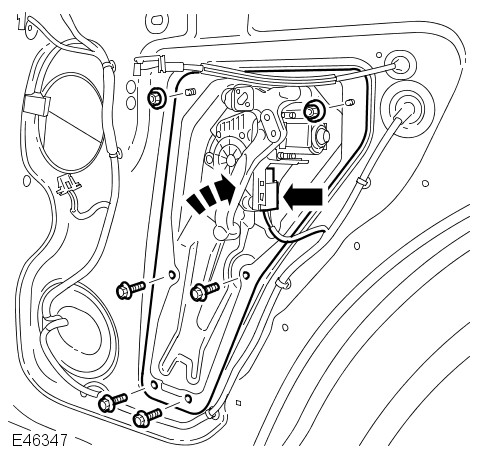

  4. E46347
    Remove the window motor and regulator assembly.
      • Disconnect the electrical connector.
      • Remove the 4 bolts.
      • Remove the 2 nuts.
      • Rotate the assembly by approximately 45 degrees, to remove the assembly from the rear side of the aperture first.
Installation
  1. Install the window motor and regulator assembly.
      • Tighten the bolts and nuts to 10 Nm (7 lb.ft).
      • Connect the electrical connector.
  2. Secure the glass to the glass regulator.
      • Remove the wedge.
      • Lower the glass.
  3. Install the outer waist seal.
      • Tighten the Torx screw.
  4. Install the rear door speaker. For additional information, refer to: Rear Door Speaker (415-03 Speakers, Removal and Installation).
