2007.0 Range Rover Sport (LS), 501-14

Handles, Locks, Latches and Entry Systems

Exterior Rear Door Handle (G301708)

REMOVAL AND INSTALLATION
  • 76.58.02
  • Exterior Door Handle - Rear - Renew
  • All Derivatives
  • 0.10
  • USED WITHINS
Removal
NOTE:

If the exterior handle is to be removed in conjunction with additional door internal items, then it is recommended that the exterior handle and screw cover be released from the inside of the door, after removal of the door trim pad, regulator and motor.

  1. NOTE:

    Vehicles with passive entry system.

    For additional information, refer to: Rear Door Window Regulator and Motor (501-11 Glass, Frames and Mechanisms, Removal and Installation).

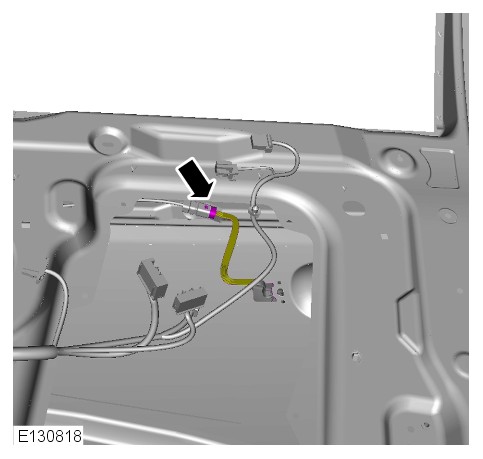

  2. E130818
    Disconnect the electrical connector.
  3. NOTES:

    • All vehicles.

    • Removal of the screw cover may break the retaining clips.

    • If the screw cover is to be removed in conjunction with additional door internal items, then it is recommended that the screw cover be released from the inside of the door, after removal of the door trim pad, regulator and motor.

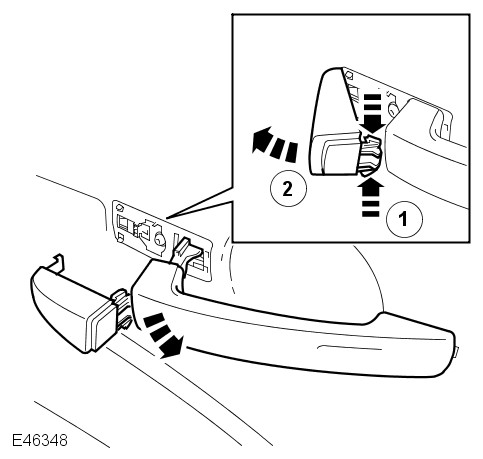

    E46348
    Remove the screw cover.
      • Release the 2 clips.
  4. NOTE:

    Vehicles without passive entry system.

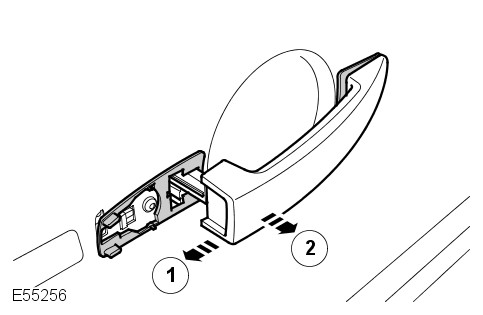

    E55256
    To remove the exterior rear door handle, without removal of the door trim pad.
      • Slide the handle firmly rearward, then pivot the handle away from the door to remove it.
      • Remove the 2 gaskets.

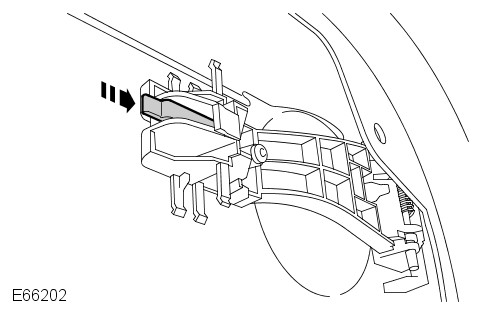

  5. E66202
    To remove the exterior rear door handle, after removal of the door trim pad and regulator.
      • Using a nylon mallet, carefully release the clip.
      • Remove the 2 gaskets.
Installation
  1. NOTE:

    Use a length of cord to hold the lock lever against spring pressure while engaging the outside handle.

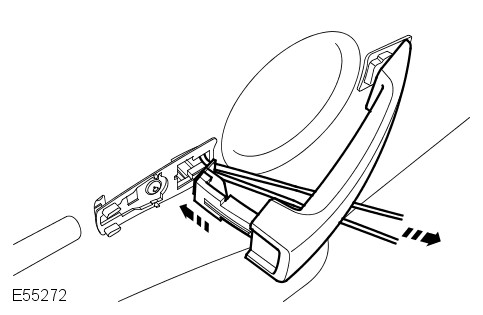

    E55272
    To install, reverse the removal procedure.
