Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-02

Front End Body Panels

Fender (G301240)

REMOVAL AND INSTALLATION
  • 76.10.24
  • Wing - front - LH/each - remove for access & refit
  • All Derivatives
  • 1.70
  • USED WITHINS
Removal
  1. Remove the plenum chamber panel. For additional information, refer to: Plenum Chamber (412-01 Air Distribution and Filtering, Removal and Installation).
  2. Remove the front bumper cover. For additional information, refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).
  3. Remove the fender splash shield. For additional information, refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

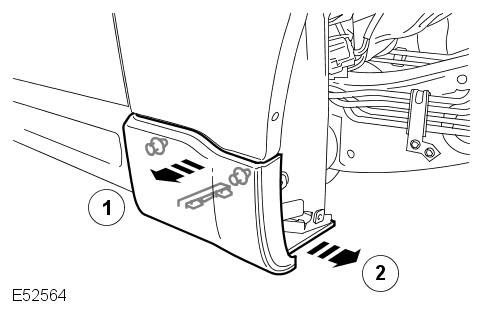

  4. E52564
    Remove the fender moulding.
      • Release the 4 clips.
  5. NOTE:

    Right-hand shown, left-hand similar.

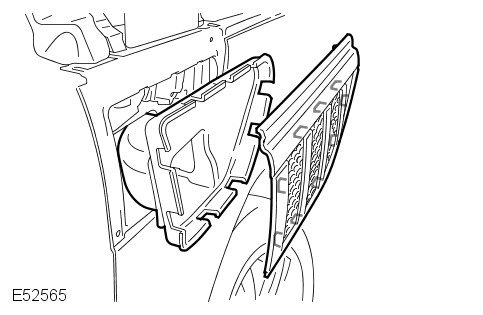

    E52565
    Remove the fender air intake grille.
      • Release the 9 clips.
      • Remove the air ducting.

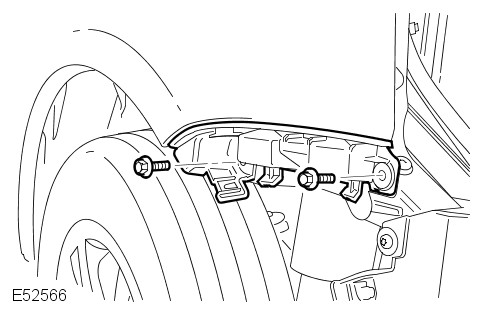

  6. E52566
    Remove the bumper cover clip.
      • Remove the 2 bolts.

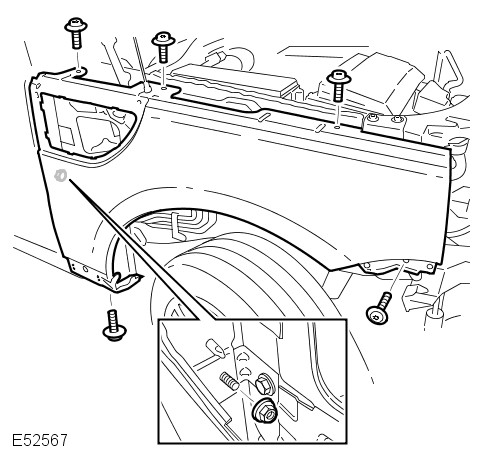

  7. E52567
    Remove the front fender.
      • Remove the 5 Torx bolts.
      • Remove the nut.
  8. NOTE:

    Do not disassemble further if the component is removed for access only.

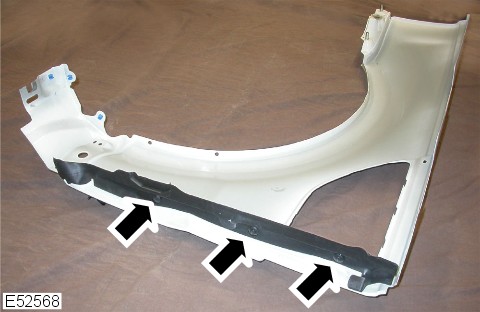

    E52568
    Remove the fender rear trim.
      • Remove the 3 clips.
Installation
  1. Install the fender rear trim.
      • Secure in the 3 clips.
  2. Install the front fender.
      • Install the bolts and tighten to 10 Nm (7 lb.ft).
      • Install the nut and tighten to 10 Nm (7 lb.ft).
  3. Install the front bumper clip.
      • Install the bolts and tighten to 6 Nm (4 lb.ft).
  4. Install the fender air intake grille.
      • Install the air ducting.
  5. Install the fender moulding.
      • Secure in the clips.
  6. Install the fender splash shield. For additional information, refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
  7. Install the front bumper cover. For additional information, refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).
  8. Install the plenum chamber panel. For additional information, refer to: Plenum Chamber (412-01 Air Distribution and Filtering, Removal and Installation).
