Published: 08-Jan-2016

2007.0 Range Rover Sport (LS), 412-01

Air Distribution and Filtering

Plenum Chamber (G300489)

REMOVAL AND INSTALLATION
  • 80.15.62
  • Cowl Panel - Renew
  • All Derivatives
  • 0.40
  • USED WITHINS
Removal
  1. Remove the A-pillar mouldings. For additional information, refer to: Left A-Pillar Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).
  2. Remove the windshield wiper arms. For additional information, refer to: Front Wiper Pivot Arm (501-16 Wipers and Washers, Removal and Installation).

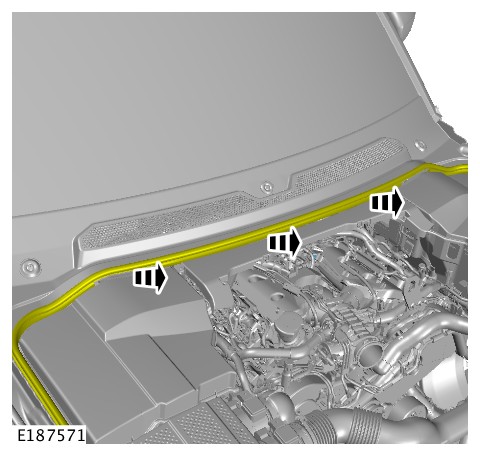

  3. E187571
    Release the hood seal from the plenum chamber.

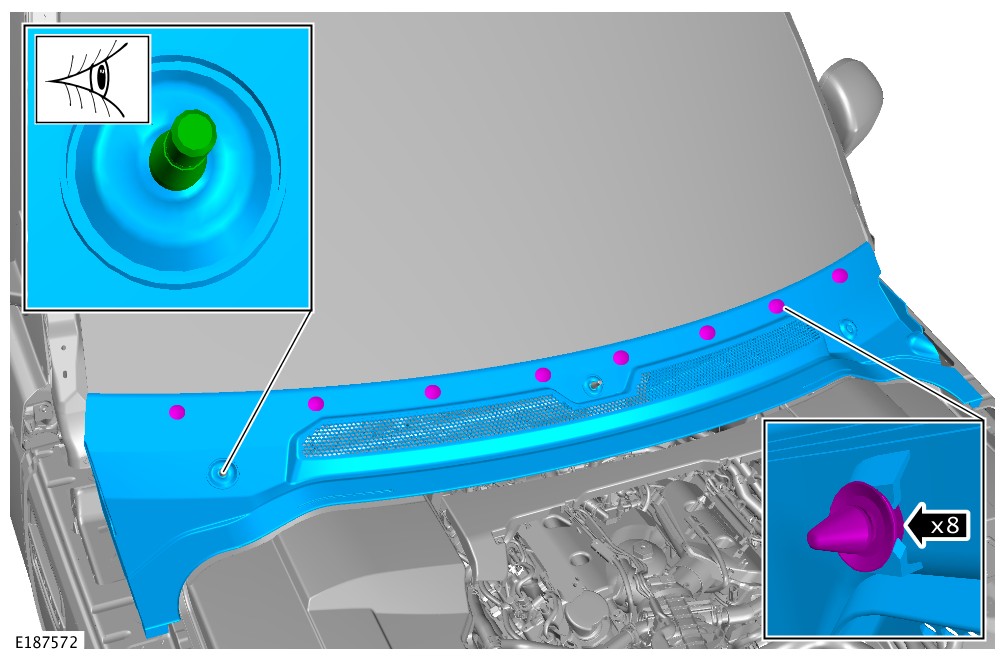

  4. E187572
    Remove the plenum chamber panel.
      • Remove and replace the 8 clips.
Installation
  1. To install, reverse the removal procedure.
