Published: 08-Jan-2016

2007.0 Range Rover Sport (LS), 501-16

Wipers and Washers

Front Wiper Pivot Arm (G301800)

REMOVAL AND INSTALLATION
  • 84.15.02
  • Windshield - Wiper Arm - Each - Renew
  • All Derivatives
  • 0.10
  • USED WITHINS
Removal

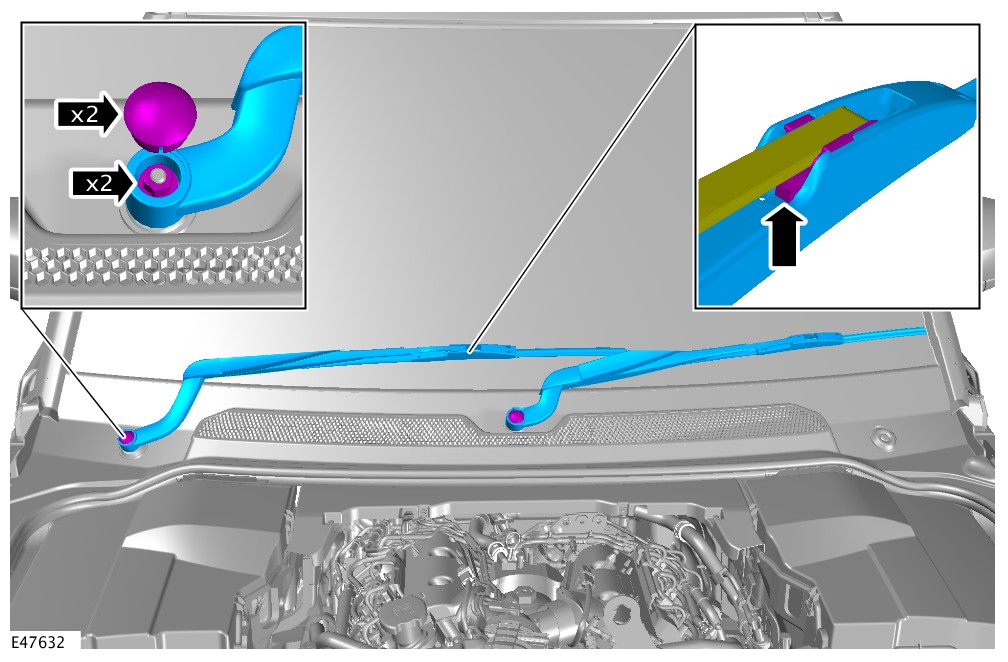

  1. E47632
    Noting the fitted position, remove the front wiper pivot arm.
      • Remove the nut cover.
      • Remove the nut.
      • Remove the front wiper pivot arm.
      • Release the clip and remove the wiper blade.
      • Torque: 24 Nm (18 lb.ft).
Installation
  1. To install, reverse the removal procedure.
