Published: 13-Mar-2018

2007.0 Range Rover Sport (LS), 501-20B

Supplementary Restraint System

Side Air Curtain Module (G2249788)

REMOVAL AND INSTALLATION
  • 76.74.41
  • Air bag - cant rail - both sides - renew
  • All Derivatives
  • 2.90
  • USED WITHINS
Removal
WARNINGS:

  • It is imperative that before any work is undertaken on the SRS system, the appropriate information is read thoroughly.

  • Always disconnect both battery cables before beginning work on the SRS system. Disconnect the ground cable first. Never reverse connect the battery.

NOTE:

If the SRS component is to be replaced, the bar code of the new unit must be recorded.


  1. Disconnect the battery ground cable.
    Refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Make the SRS system safe.
    Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).
  3. Remove the headliner.
    Refer to: Headliner (501-05 Interior Trim and Ornamentation, Removal and Installation).

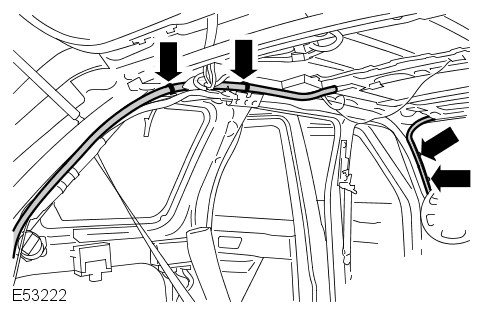

  4. E53222
    Release from the 2 clips. Remove and discard 2 cable ties. Release the roof opening panel drain tube from the securing clips.
  5. NOTE:

    If the SRS component is to be replaced, the bar code of the new unit must be recorded.

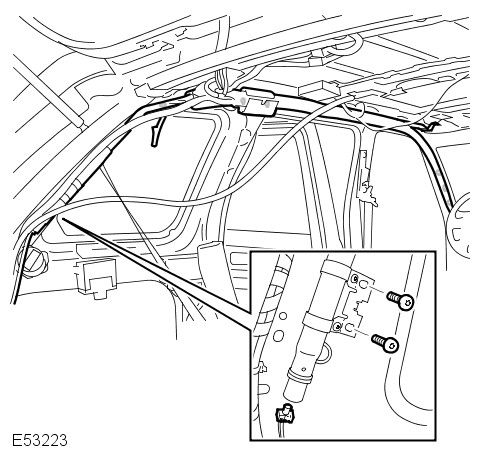

    E53223
    Disconnect the electrical connector. Remove the 9 Torx bolts. Remove the 2 screws. With assitance, remove the side air curtain module.
Installation
  1. With assistance, install the side air curtain module. Tighten the Torx screws. Tighten the screws. Connect the electrical connector.
    Torque: 10Nm
  2. Secure the roof opening panel drain tube into the clips. Install new cable ties.
  3. Install the headliner.
    Refer to: Headliner (501-05 Interior Trim and Ornamentation, Removal and Installation).
  4. Connect the battery ground cable.
    Refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
