2007.0 Range Rover Sport (LS), 307-01D

Automatic Transmission/Transaxle - TDV8 3.6L Diesel

Transmission Support Insulator (G953053)

IN-VEHICLE REPAIR
  • 12.45.08
  • Mounting - rear - centre - renew
  • TDV8
  • 0.50
  • USED WITHINS
Removal
  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. Remove the transmission crossmember. For additional information, refer to: Transmission Support Crossmember (502-02 Full Frame and Body Mounting, Removal and Installation).

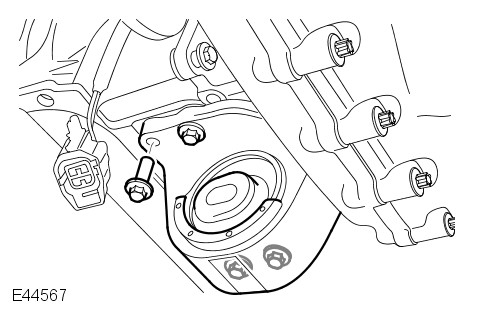

  3. E44567
    Remove the transmission support insulator.
      • Remove the 4 bolts.
Installation
  1. To install, reverse the removal procedure.
      • Clean the component mating faces.
      • Tighten the bolts to 60 Nm (44 lb.ft).
