2007.0 Range Rover Sport (LS), 502-02

Full Frame and Body Mounting

Transmission Support Crossmember (G351299)

REMOVAL AND INSTALLATION
Removal

The following step(s) applies to:
All vehicles

  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. E44595
    Remove the transmission undershield.
      • Remove the 6 bolts.

The following step(s) applies to:
Vehicles with diesel engine

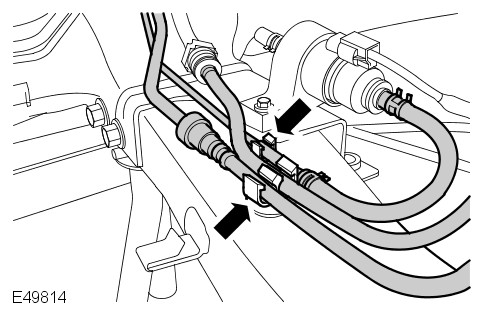

  1. E49814
    Release the 3 fuel lines.
      • Release from the 3 clips.

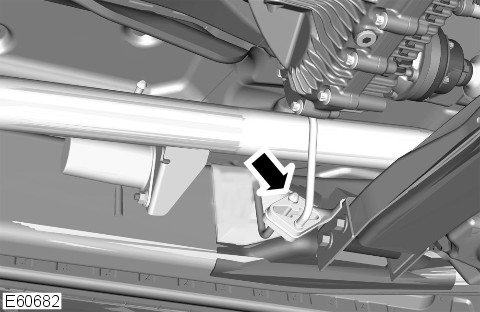

  2. E60682
    Release the exhaust front mounting.

The following step(s) applies to:
Vehicles with petrol engine

  1. E44718
    Release the HO2S wiring harness and bracket from the crossmember.
      • Remove the 2 bolts.
      • Tie the bracket aside.

The following step(s) applies to:
All vehicles

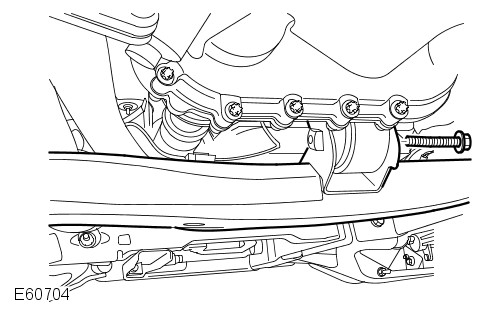

  1. E60704
    Remove the transmission support insulator through-bolt.
      • Support the transfer case.

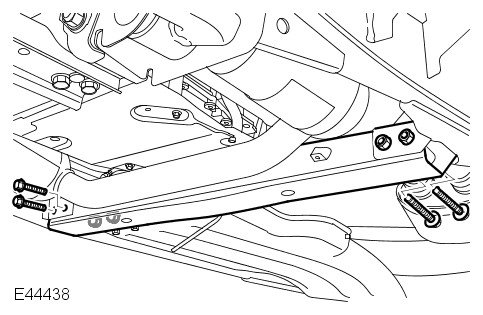

  2. E44438
    Remove the crossmember.
      • Remove the 4 nuts and bolts.
Installation

The following step(s) applies to:
All vehicles

  1. Install the crossmember.
      • Tighten the nuts and bolts to 90 Nm (66 lb.ft).
  2. Install the transmission support insulator through-bolt and tighten to 175 Nm (129 lb.ft).

The following step(s) applies to:
Vehicles with petrol engine

  1. CAUTION:

    Make sure the H02S wiring harness is not twisted more than 180 degrees and is not in contact with either the exhaust or driveshaft.

    Attach the HO2S wiring harness and bracket to the crossmember.
      • Tighten the bolts to 10 Nm (7 lb.ft).

The following step(s) applies to:
Vehicles with diesel engine

  1. Secure the 3 fuel lines.
      • Secure in the clips.
  2. Connect the exhaust front mounting.

The following step(s) applies to:
All vehicles

  1. Install the transmission undershield.
      • Tighten the bolts to 10 Nm (7 lb.ft).
